Waukesha Cherry-Burrell
®
Brand Universal 3 Pump Maintenance
11/2018 95-03103 Page 29
Lubrication Drive Lubrication
Refer to the manufacturer’s manual shipped with the drive for
proper drive lubrication and frequency.
Gears
Gears are factory-lubricated with gear oil at the quantity shown in
Table 3 on page 29. Change the oil every 750 hours.
NOTE: Aggressive washdown or extreme running conditions may
require more frequent lubrication intervals.
When the pump is not running, the gear oil level is correct when
the oil level is visible in the sight glass. Check the oil level regu-
larly.
When the pump is running, the oil level may be difficult to see and
may appear cloudy.
Universal 3 pumps are shipped with the oil level at or slightly
above the sight glass.
Bearings
Bearings are factory-lubricated with grease. Re-lubricate them at
the quantity shown in Table 3 on page 29. Grease the bearings
every 750 hours.
NOTE: Aggressive washdown or extreme running conditions may
require more frequent lubrication intervals.
Excess grease will accumulate in the gear case and must be
removed through the cleanout hole covered with a plastic plug
(Figure 30, item 48). Check the cleanout plugs for any collection
of gear oil.
Best practice is to clean out this area every time you grease the
pump. Water can accumulate in the gear case from condensation
or from aggressive washdown. If water is found in the gear case,
clean out this area more frequently.

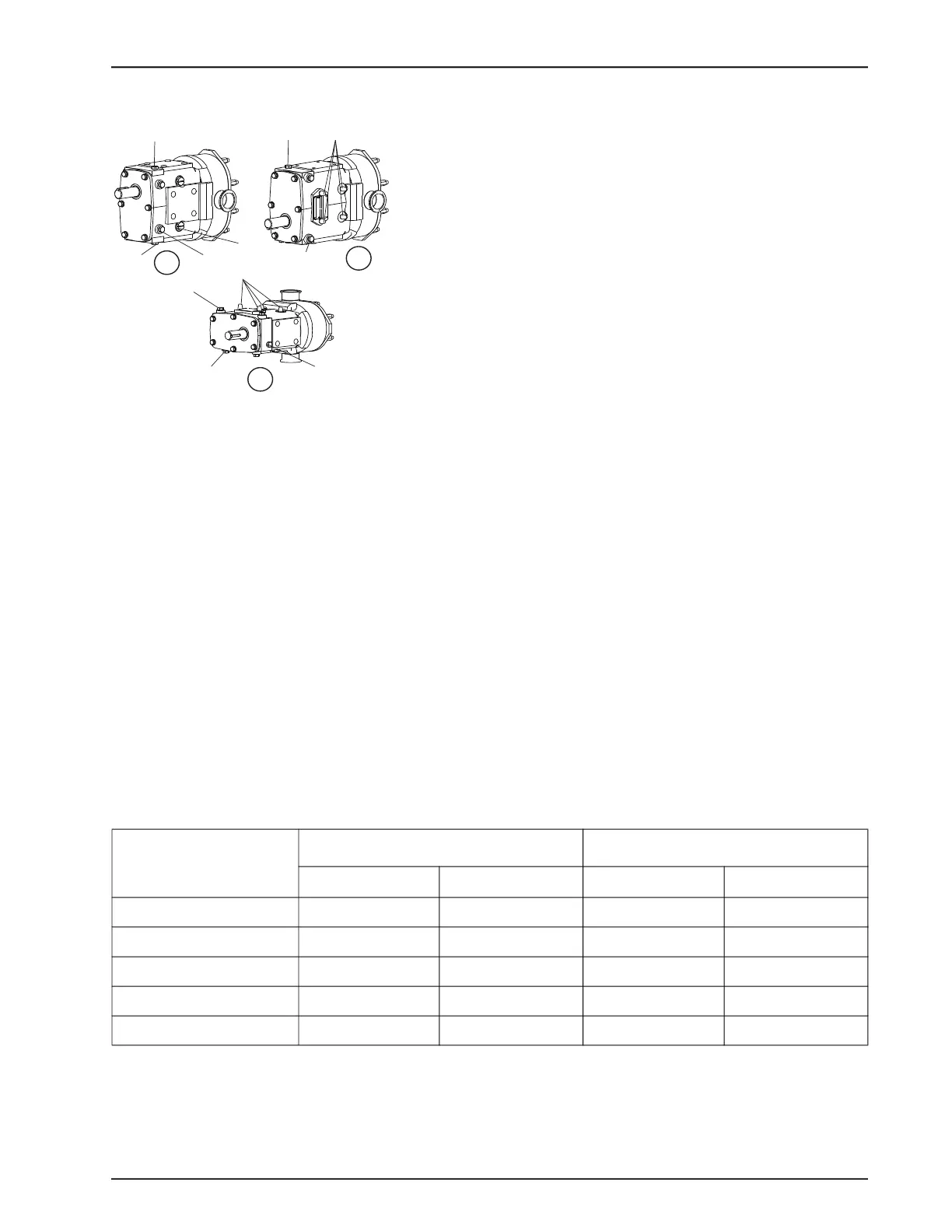

Figure 30 - Lubrication Points
A. Upper Shaft Drive Pump (Standard)
B. Lower Shaft Drive Pump (Optional)
C. Side-Mount Pump (Optional)
24D. Oil Drain Plug
24F. Oil Fill Plug
24L. Oil Level Check Plug, Sight glass
48. Grease Clean-out Plug
67. Grease Fittings
PD100-042d
24L
24F
24D
C
67
24F
48
A
24D
24L
24F 67
B
24D
Gear Oil Specification
Standard: ISO Grade 320, SAE 140 or
AGMA Number 6EP, part no.118402+.
Food-grade: part no. 000140003+.
Bearing Lubricant Grease
Standard: NLGI Grade No. 2, EP, Lith-
ium-based lubricant, part no. 118401+.
Food-grade: part no. 000140002+.
Table 3: Lubrication Quantities
Universal 3 Model
Oil Capacity (Gears) Grease Quantity (per Bearing)
Top or Bottom Side Mount Front Rear
006, 015, 018 1.3 oz (40 ml) 3.3 oz (100 ml) .37 oz (11 ml) .13 oz (4 ml)
030, 040 2.0 oz (60 ml) 4 oz (120 ml) .60 oz (18 ml) .21 oz (6 ml)
045, 060, 130 6.0 oz (170 ml) 9.5 oz (280 ml) .84 oz (25 ml) .76 oz (22 ml)
180, 220 11 oz (320 ml) 20 oz (600 ml) 1.33 oz (39 ml) 1.03 oz (30 ml)
210, 320 17 oz (500 ml) 44 oz (1300 ml) 1.96 oz (58 ml) 1.16 oz (34 ml)
