Single and Double
Mechanical Seal
Install Pump Body
1. Install the pump body onto the gear case. Confirm that the
pump body dowel pins align with the correct size bushing on
the gear case.
NOTE: Double mechanical seal shown.
2. Figure 131 shows the pump body installed on the gear case.
3. Install the body retaining screws. Lubricate the thread with
food-grade anti-seize. Lightly hand-tighten the screws, so the
pump body is securely seated against the gear case.

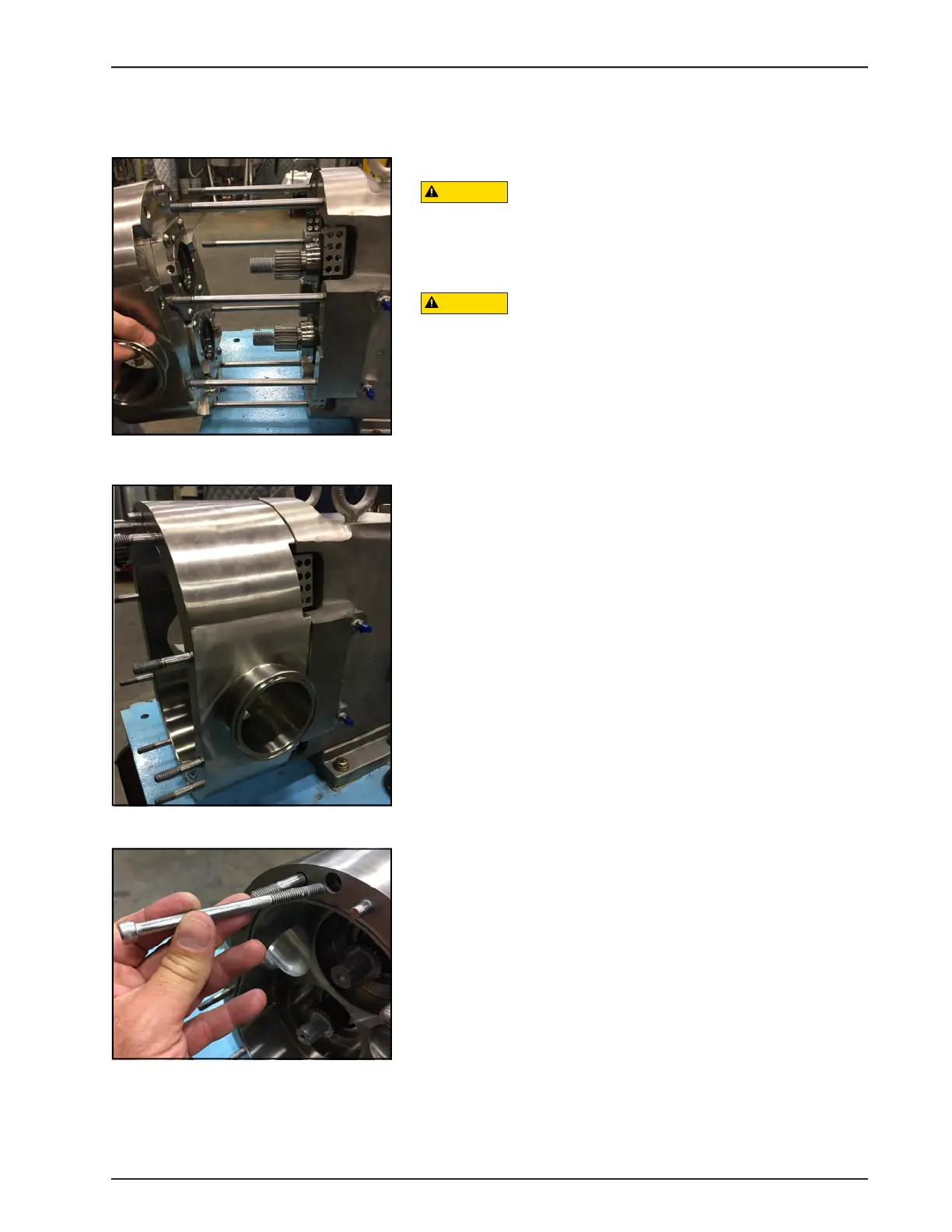

Figure 130 - Install pump body
Make sure the pump is securely bolted or clamped down prior to
performing any maintenance work. The pump center of gravity
changes as parts are added or removed, and could result in
tipping of an unsecured pump.
To lift the body of a 130, 180, 210, 220, or 320-U3, use a lifting
strap threaded through the ports on either side of the body.
Figure 131 - Pump body installed
Figure 132 - Install body retaining
screws
