SPX FLOW 030-U3 User Manual

Parts List Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 122 95-03103 11/2018
Universal 3 Standard Seals
^ Kit contains 1 wave spring and 1 drive ring.
Note: For a cross-section view, see page 126.

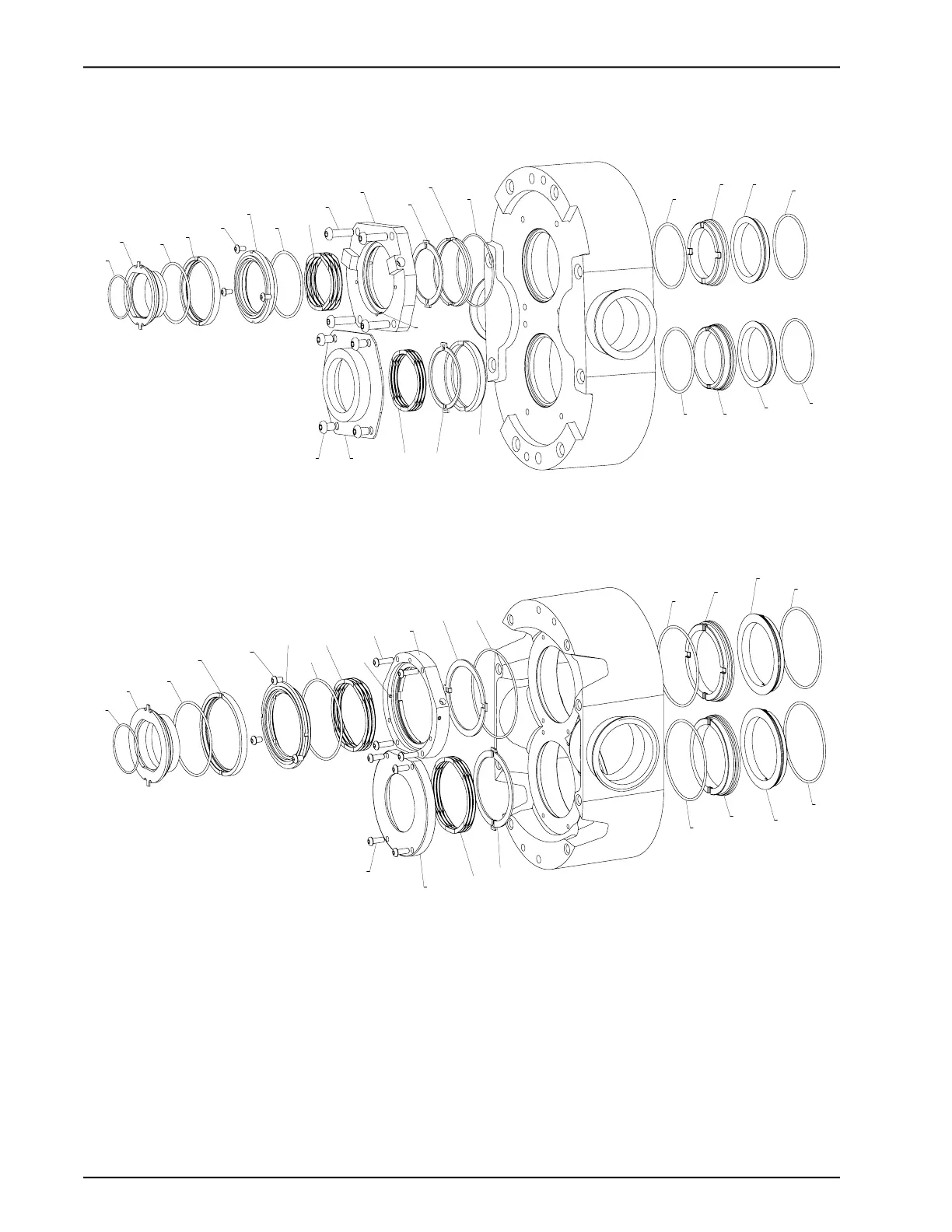

Figure 221 - Mechanical Seals, U3 pumps 130-U3 and smaller
Figure 222 - Mechanical Seals, U3 pumps 180-U3 and larger
PD100-659
151
152
153
154
155
156
157
158A^
159
160
161
158B^
162
163
164 165
166
167 168 169A^
170
163
171
165
166
160A
169B^
Double Mechanical Seal
Single Mechanical Seal
PD100-660
151
152
153
154
155
156
157
158A^
159
160
158B^
162
163
164
165
166
167
168
169A^
169B^
163
171
165
166
160A
Double Mechanical Seal
Single Mechanical Seal
