Pump Dimensions Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 98 95-03103 11/2018

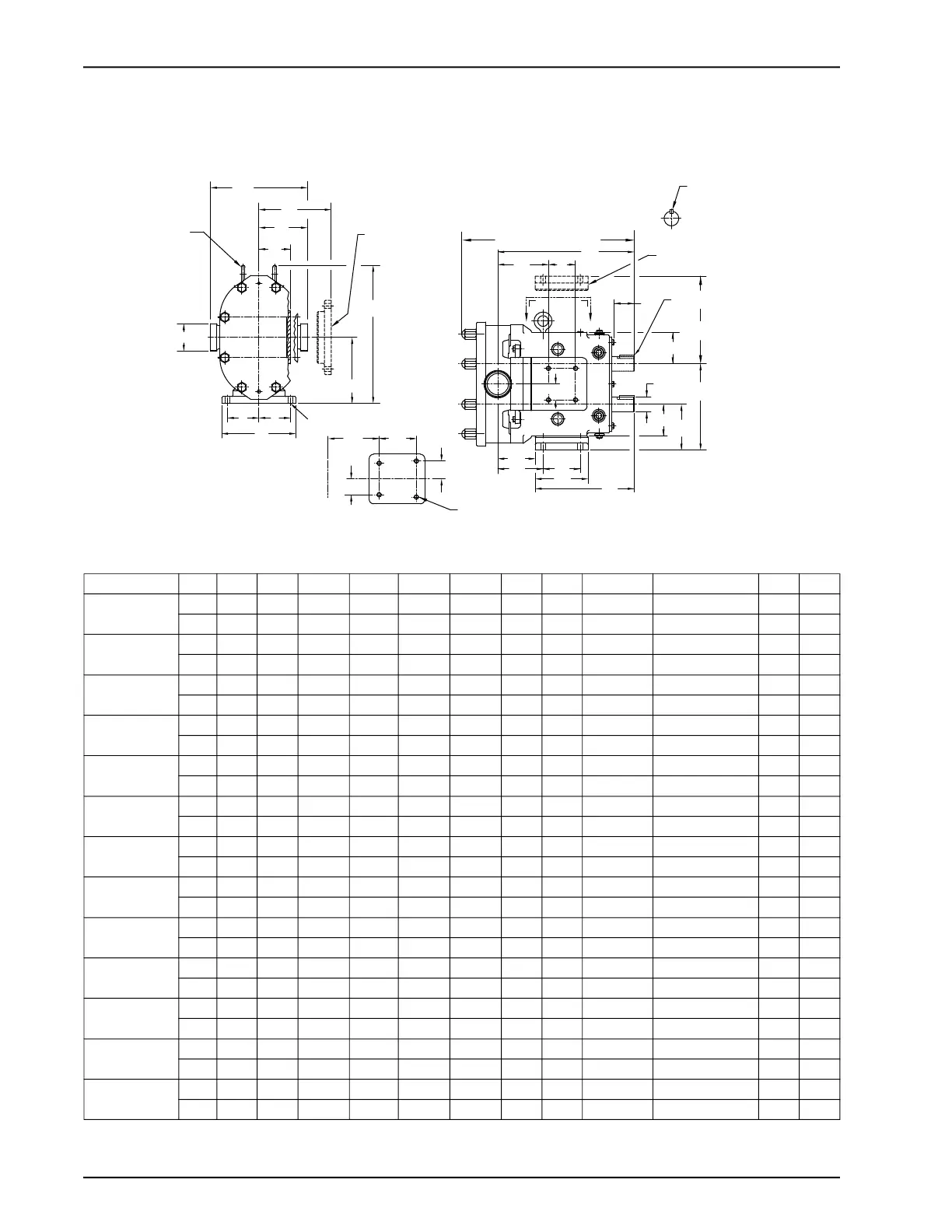

Pump Dimensions
Universal 3 PD Pump Dimensions
U3 Model A AA AO B CP D E F G G1 H H1
006
inch 4.71 2.41 8.3 3.66 12.42 5.50 1.97 2.31 0.50 5/16-18x.62 2.50 2.50
mm 120 61 211 93 315 140 50 59 13 -- 64 64
015
inch 4.71 2.41 8.3 3.66 12.69 5.50 1.97 2.31 0.50 5/16-18x.62 2.50 2.50
mm 120 61 211 93 322 140 50 59 13 -- 64 64
018
inch 4.71 2.65 8.3 3.66 13.35 5.50 1.97 2.31 0.50 5/16-18x.62 2.50 2.50
mm 120 67 211 93 339 140 50 59 13 -- 64 64
030
inch 6.19 3.22 10.29 4.15 15.16 6.86 2.42 2.56 .41, slot 3/8-16x.62 1.81 2.75
mm 157 82 261 105 385 174 61 65 10, slot -- 46 70
040
inch 6.19 3.39 10.29 4.15 15.54 6.86 2.42 2.56 .41, slot 3/8-16x.62 1.81 2.75
mm 157 86 261 105 395 174 61 65 10, slot -- 46 70
045
inch 8.25 3.85 15.31 5.88 19.11 9.56 3.5 4.12 0.53 1/2-13x.88 3.00 4.13
mm 210 98 389 149 485 243 89 105 13 -- 76 105
060
inch 8.25 4.13 15.31 5.88 19.66 9.56 3.5 4.12 0.53 1/2-13x.88 3.00 4.13
mm 210 105 389 149 499 243 89 105 13 -- 76 105
130
inch 8.25 4.77 15.31 5.88 20.68 9.56 3.5 4.12 0.53 1/2-13x.88 3.00 4.13
mm 210 121 389 149 525 243 89 105 13 -- 76 105
180
inch 8.5 3.46 19.13 9.00 23.48 12.38 3.75 7.25 .53, slot 1/2-13x.88 5.38 5.38
mm 216 88 486 229 596 314 95 184 13, slot -- 137 137
210
inch 12 4.14 23.84 11.63 27.07 13.87 5.25 8.00 .66, slot 1/2-13x.88 5.38 5.38
mm 305 105 606 295 688 352 133 203 17, slot -- 137 137
220
inch 8.5 3.70 19.13 9.00 24.22 12.38 3.75 7.25 .53, slot 1/2-13x.88 5.38 5.38
mm 216 94 486 229 615 314 95 184 13, slot -- 137 137
270
inch 8.5 4.33 19.13 9.00 24.85 12.38 3.75 7.25 .53, slot 1/2-13x.88 5.38 5.38
mm 216 110 486 229 631 314 95 184 13, slot -- 137 137
320
inch 12 4.52 23.84 11.63 27.66 13.87 5.25 8.00 .66, slot 1/2-13x.88 5.38 5.38
mm 305 115 606 295 703 352 133 203 17, slot -- 137 137
CP STANDARD COVER
G1
12 PLACES
H1
T1
SS1
S1
PORT C
L
VIEW A-A OF TOP & BOTTOM
PUMP MOUNTING PADS
J
M
OPTIONAL MOUNTING
PAD LOCATION
TYP
S
A
AA
F
R
B
I
U
J
N
M
D
K-KEY
OPTIONAL UPPER
SHAFT
A
A
T
H
L
BOLTS,
EYE
E
G
E
O
PORT
AO
X
2X
SIDE
MOUNT
MOUNTING
PAD
M
J
PD100-535b
