Waukesha Cherry-Burrell
®
Brand Universal 3 Pump Installation
11/2018 95-03103 Page 17
Installation
Important Safety
Information
The pump contains internal moving parts. DO NOT put hands or
fingers into the pump body ports or drive area at any time during
operation. To avoid serious injury, DO NOT install, clean, service,
or repair the pump unless all power is off and locked out and the
pump is de-pressurized.
The pump components and piping may contain sharp edges.
Handle the rotors carefully because edges may be sharp. Wear
gloves while installing and servicing the pump to help avoid
injuries from these hazards.
Maintenance should be performed only by trained personnel. See
“Qualification Guidelines for Operating Staff” on page 16.
Lifting
When moving the pump, use appropriate lifting devices. Always
use securely fitted lifting straps/chains when lifting with a crane or
similar lifting gear.
Do not stand underneath the pump while it is being lifted.

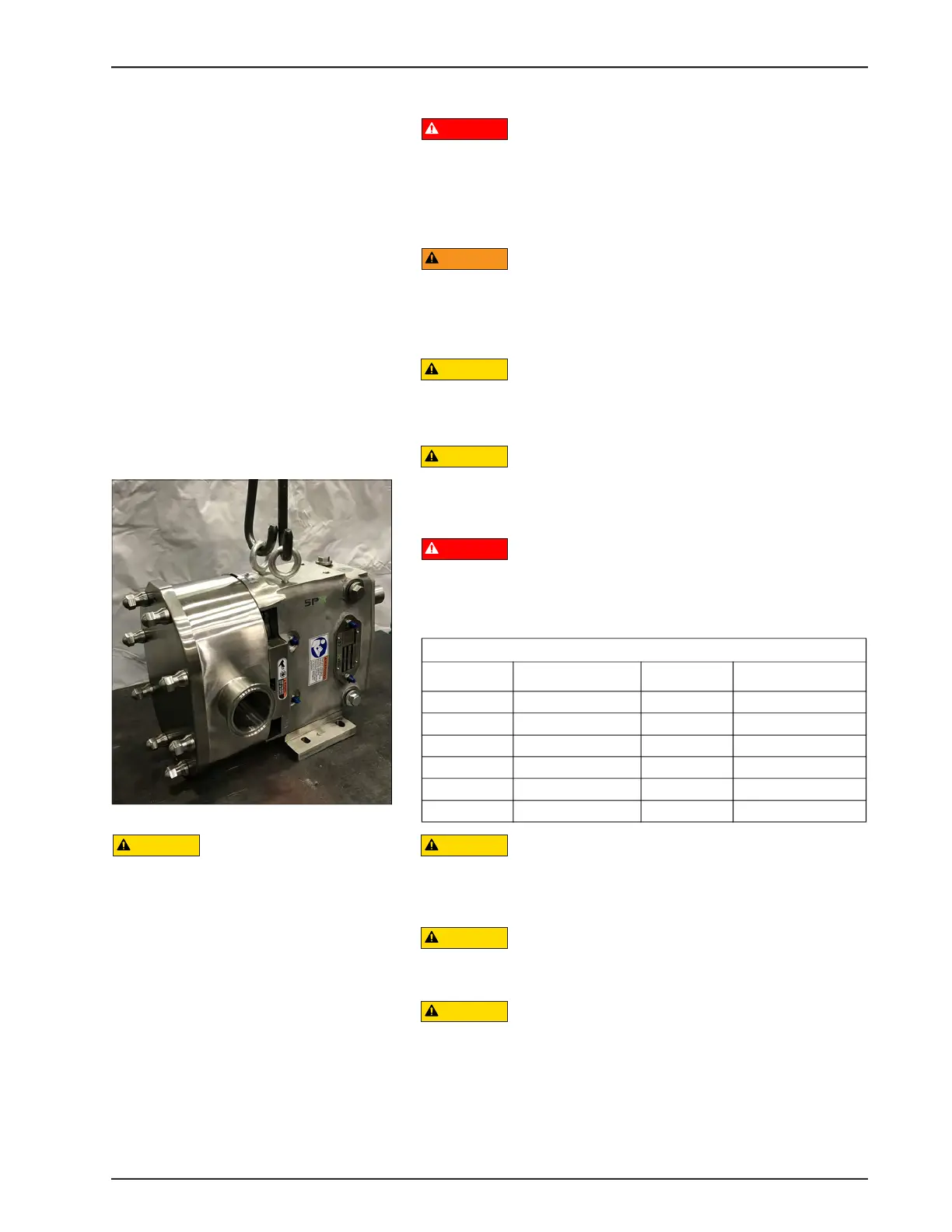

As shown in Figure 3, attach lifting straps/chains to the two eye
bolts on the top of the gear case.
For Unit orders (a pump and motor
mounted on a common baseplate (not
pictured)), use straps to lift the unit by
the baseframe at either end. Do not lift
by the eye bolts on the pump or motor.
Due to the wide range of pump sizes and
motors, SPX FLOW cannot give lifting
instructions here for all configurations.
Contact SPX FLOW or an authorized lift-
ing expert if questions arise.
To lift the cover on a 210 or 320-U3, attach an eye bolt to the
threaded hole in the cover and attach lifting straps or chains to
the eye bolt.
To lift the body of a 130, 180, 210, 220, or 320-U3, use a lifting
strap threaded through the ports on either side of the body.
To lift the gear case assembly on pumps larger than 018-U3,
attach lifting straps/chains to the two eye bolts on the top of the
gear case.
Install Pump and Drive Unit
Figure 3 - Lifting location
Table 2: Pump Weights (less motor or base)
U3 Model Weight, lb (kg) U3 Model Weight, lb (kg)
006 60 (27) 060 290 (132)
015 62 (28) 130 310 (141)
018 65 (29) 180 498 (226)
030 114 (52) 210 510 (231)
040 117 (53) 220 748 (339)
045 284 (129) 320 817 (371)
