Install Product-Side Rotary and Stationary Seal
NOTE: Applies to both single and double mechanical seal.
1. Install the lubricated stationary seal O-ring onto the stationary
seal.
2. Figure 134 shows the O-ring installed on the stationary seal.
3. Install the stationary seal into the pump body. Align the
notches in the seal with the tabs on the drive ring (see arrow
in Figure 135). Push the seal into the pump so that the O-ring
can seat in the bore and hold the seal in place.
4. After installing the stationary seal, push on it and it should
spring back freely. If it does not spring back, check the seal
installation.

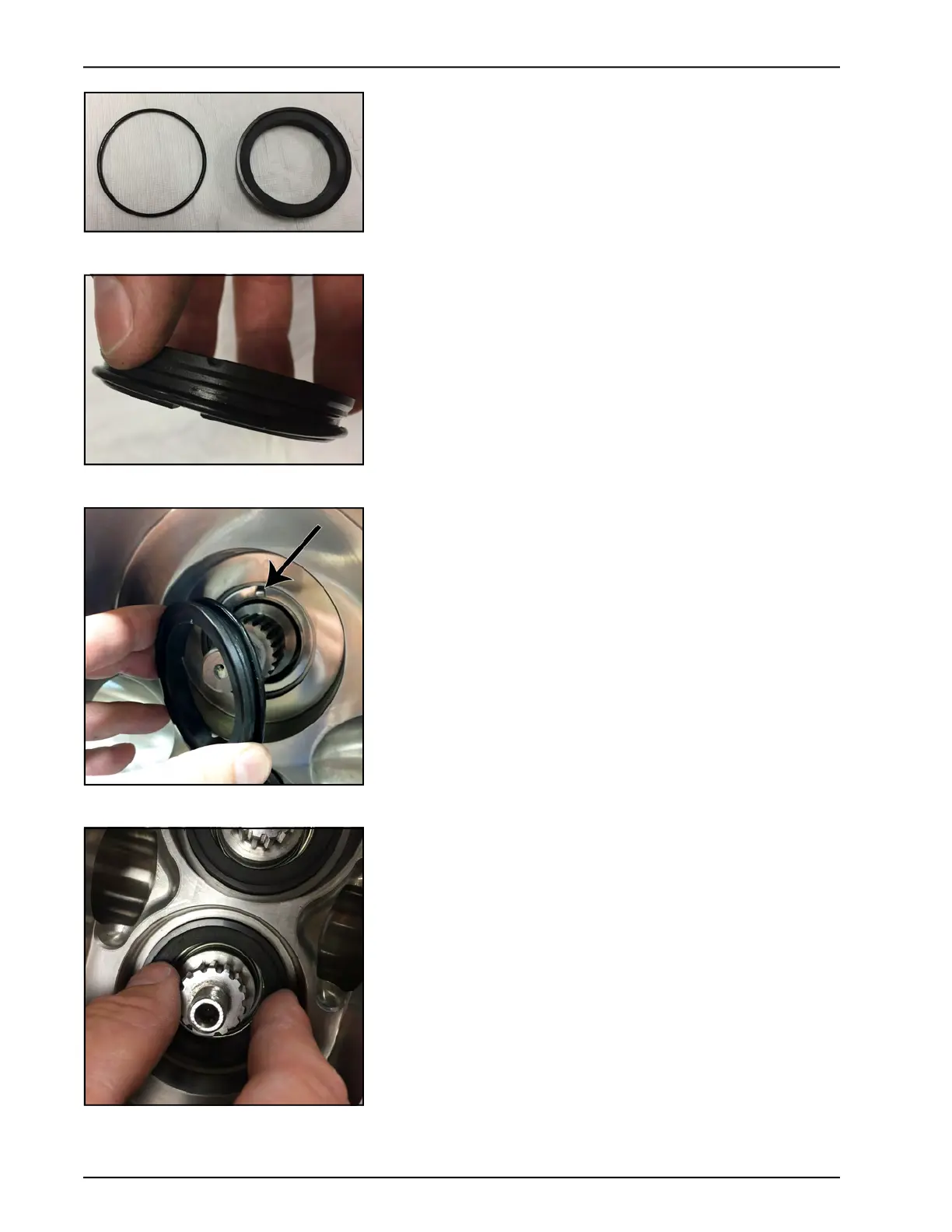

Figure 133 - Install seal O-ring
Figure 134 - Seal O-ring installed
Figure 135 - Install stationary seal
Figure 136 - Push on stationary seal
