SPX FLOW 030-U3 User Manual

Maintenance Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 38 95-03103 11/2018
Single Mechanical Seal Remove Seal Components
NOTE: For double mechanical seal, see page 45.
1. Remove the seal housing bolts.
2. Remove the seal housing. Figure 48 shows the design for
130-U3 and smaller sizes. See Figure 49 for 180-U3 and
larger sizes.
3. Figure 49 shows the design for 180-U3 and larger sizes. See
Figure 48 for 130-U3 and smaller sizes.

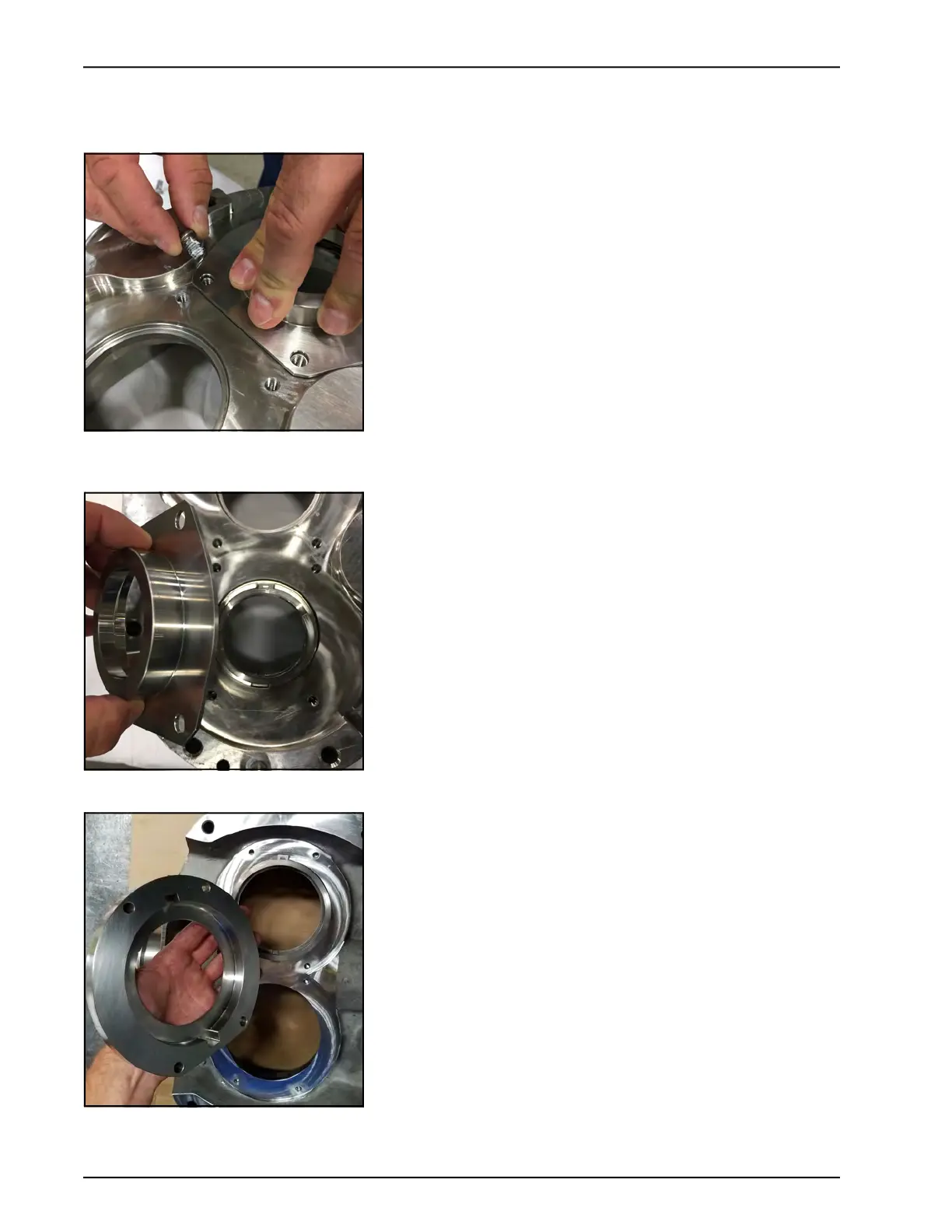

Figure 47 - Remove seal housing
bolts
Figure 48 - Remove seal housing
Figure 49 - Remove seal housing
