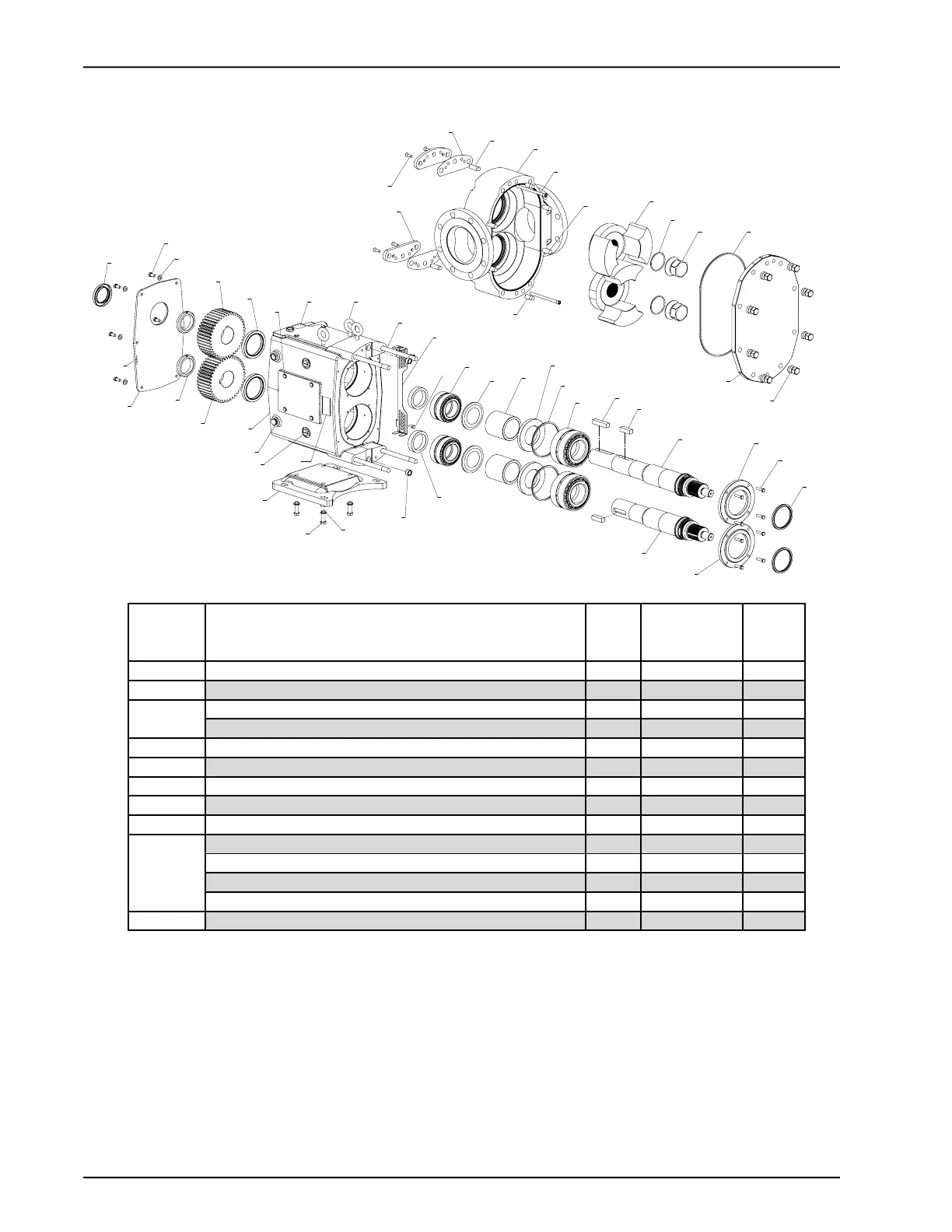

SPX FLOW 030-U3 User Manual

Parts List Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 118 95-03103 11/2018
210, 320-U3 Parts
See notes on page 119.
25
14
32
7
17
47
27
30A
30
31
16
33B
8
15
56
56A
10
46
65
43
13
5
33C
33A
29
34
44A
44
42
66
48
24
3
6
41
4
25
12
28
28D
28A
21
1
45
10A
9
26A
26
36
2
11
20
ITEM NO. DESCRIPTION
QTY.
PER
PUMP
PART NO. NOTES
1
Pump Body 1 See Note 1 1
3
Gear Case, SS, Model 210-320 1 138149+
210-U3 Pump Cover 1 138286+
320-U3 Pump Cover 1 138285+
4
Gear Case Cover, SS 1 135851+
5
Gear, Drive Shaft, Spur 1 102470+
6
Gear, Short Shaft, Sput 1 102470+
7
210-320-U3 Drive Shaft 1 138281+ 43
8
210-320-U3 Short Shaft 1 138282+ 43
210-U3 Rotor, Twin Wing, Alloy 88 2 138332+ 2
210-U3 Rotor, Twin Wing, 316SS 2 138336+ 2
320-U3 Rotor, Twin Wing, Alloy 88 2 138300+ 2
320-U3 Rotor, Twin Wing, 316SS 2 138304+ 2
9
A
Rotor drive pin (not shown) 2 M525S1670X 2
PL5060-CH160
9
2
