SPX FLOW 030-U3 - Fluid Head Assembly - Rotors and Cover

Maintenance Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 76 95-03103 11/2018
6. Lubricate the outer surface of the seal sleeve.
7. Continue to install the rotors.
NOTE: Mechanical seals are shown in the “Install Rotors”
section, but the instructions apply to the O-ring seal as well.
Fluid Head Assembly -
Rotors and Cover
Install Rotors
NOTE: Mechanical seals are shown in this section, but the
instructions apply to the O-ring seal as well.
1. Align the timing spline of the rotor and the pump shaft.
NOTE: Mechanical seal shown.
2. Figure 179 shows the timing spline of the shaft.
NOTE: Mechanical seal shown.

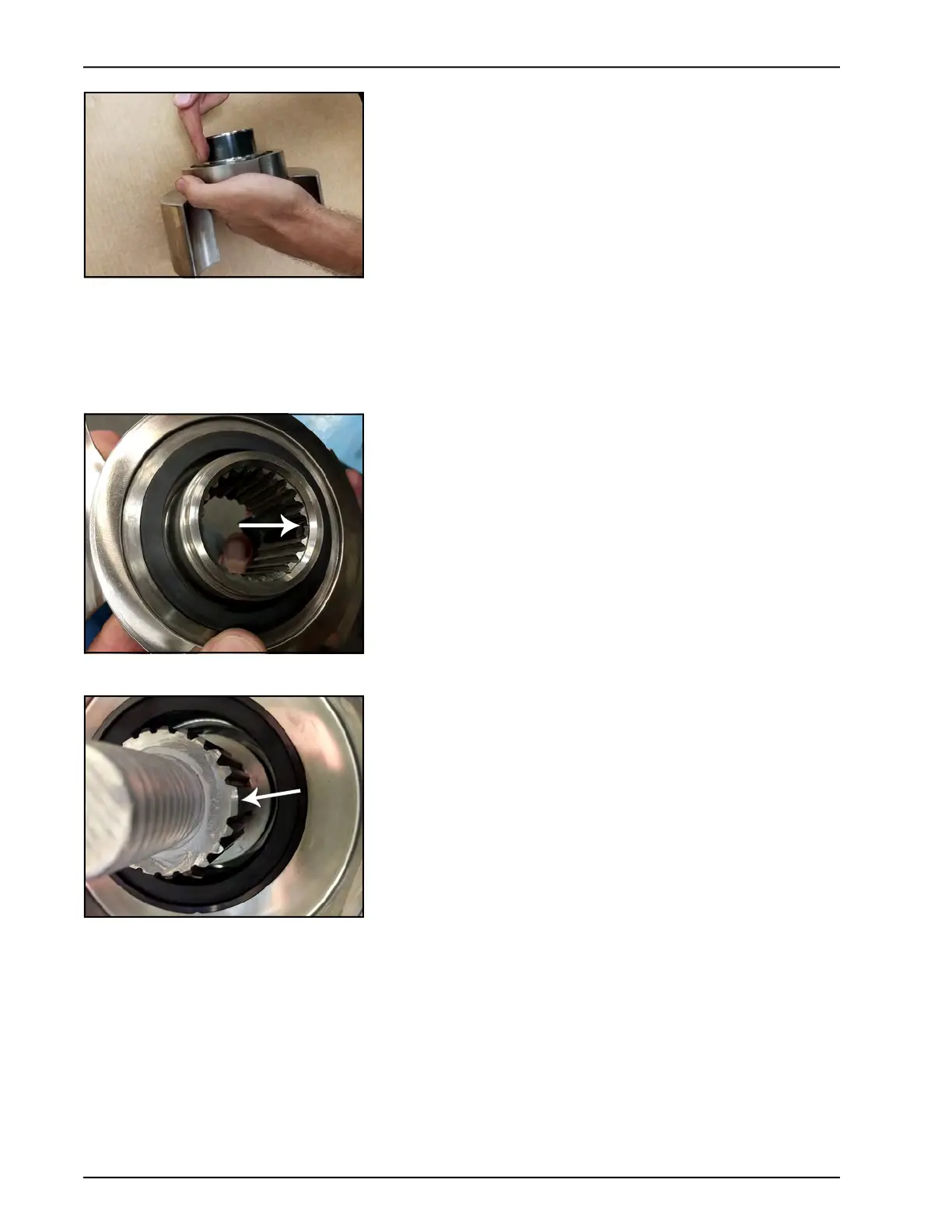

Figure 177 - Lubricate seal sleeve
Figure 178 - Timing spline of rotor
Figure 179 - Timing spline of shaft
