Introduction
Pump Receiving
The pump contains internal moving
parts. DO NOT put hands or fingers into
the pump body ports or drive area at any
time during operation. To avoid serious
injury, DO NOT install, clean, service, or
repair the pump unless all power is off
and locked out.
All ports are covered at the factory to keep out foreign objects
during transit. If covers are missing or damaged, remove the
pump cover (if damaged) and thoroughly inspect the fluid head.
Be sure that the pumping head is clean and free of foreign mate-
rial before rotating the shaft.
Each standard Waukesha Cherry-Burrell brand pump is shipped
completely assembled and lubricated. Review “Operation” on
page 26 before operating the pump.
Intended Use The Universal 3 Series Rotary Positive Displacement Pump is
exclusively intended for pumping liquids, especially in food and
beverage installations.
Refrain from using the pump in a manner which exceeds the
scope and specifications stated in this manual.
Any use exceeding the margins and specifications set forth is
considered to be not intended.
SPX FLOW is not liable for any damage resulting from such
activities. The user bears the full risk.
Improper use of the pump leads to:
- damage
- leakage
- destruction
- potential failures in the production process
Equipment Serial Number All Waukesha Cherry-Burrell brand pumps are identified by a
serial number on the gear case nameplate, which is stamped on
the pump body and cover.
The gear case, body, and cover must be kept together as a unit
due to backface, rotor, and cover clearances. Failure to do so will
damage the pump.

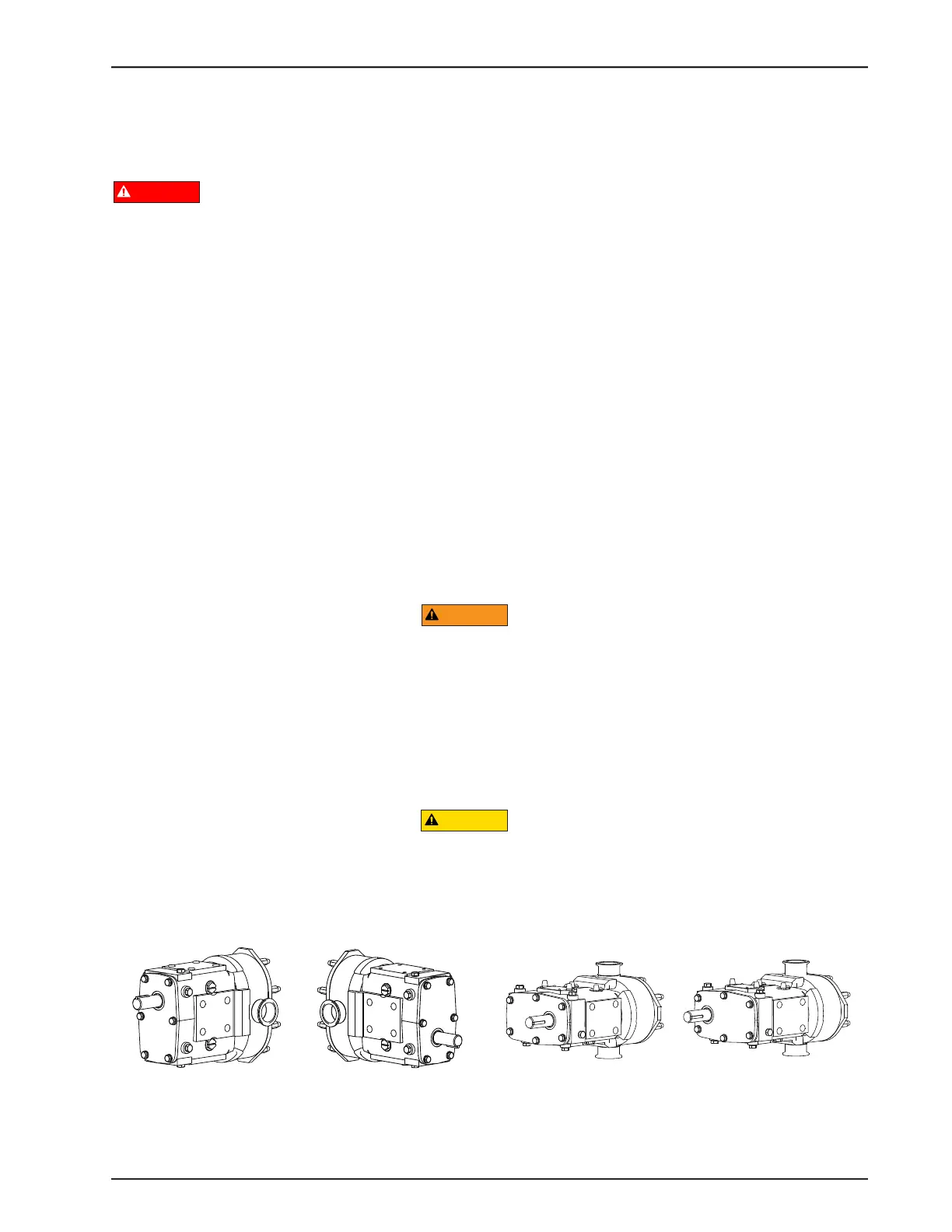

Pump Shaft Location There are two pump drive shaft locations:
Figure 1 - Upper and Lower Shaft Mount Figure 2 - Sidemount Left Hand and Right Hand
(as viewed from pump cover)
PD100-037
PD100-036
