Double Mechanical Seal Remove Flush-Side Seal Components
NOTE: For single mechanical seal, see page 38. For O-ring
seals, see page 69.
1. Remove the flush-side rotary seal from each shaft. Use
caution not to damage the seals during removal.
2. Remove the flush-side rotary seal O-ring from each shaft.
3. Remove the adjusting ring from each pump shaft.

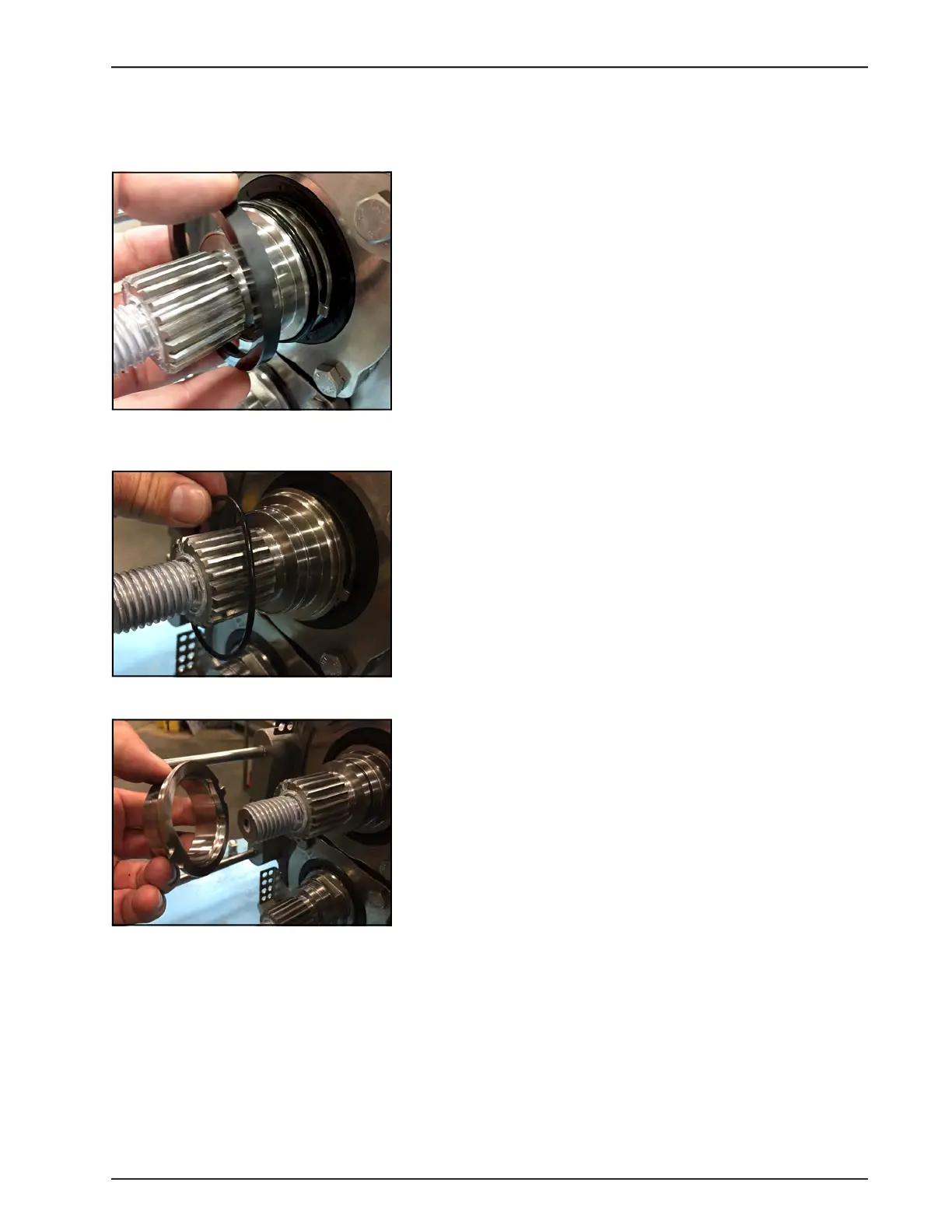

Figure 69 - Remove flush-side rotary
seal
Figure 70 - Remove O-ring
Figure 71 - Remove adjusting ring
