Remove Flush-Side Seal Components
1. Using an Allen wrench, remove the bolts.
2. Remove the seal housing.
3. Remove the seal housing O-ring and discard it.
4. Remove the wave spring from the shaft.

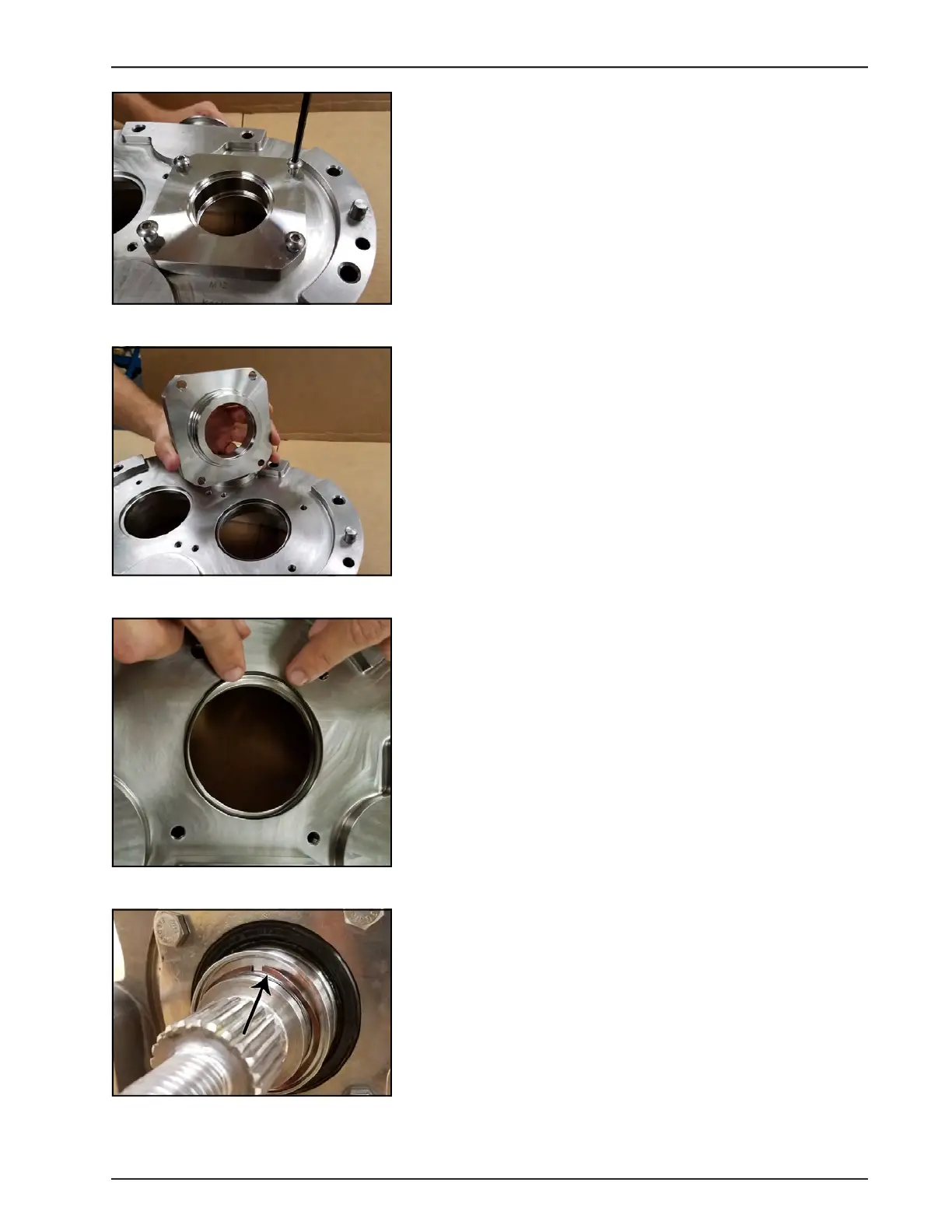

Figure 152 - Remove bolts
Figure 153 - Remove seal housing
Figure 154 - Remove O-ring
Figure 155 - Remove wave spring
