SPX FLOW 030-U3 User Manual

Maintenance Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 72 95-03103 11/2018
Install O-ring Seal
1. Lubricate the sleeve back O-ring and install it in the groove
on the shaft.
2. Figure 164 shows the O-ring installed on the shaft.
3. Make sure the flats of the seal seat are aligned with the flats
on the shaft and place the seal seat on the shaft.
4. Figure 166 shows the seal seat installed on the shaft.

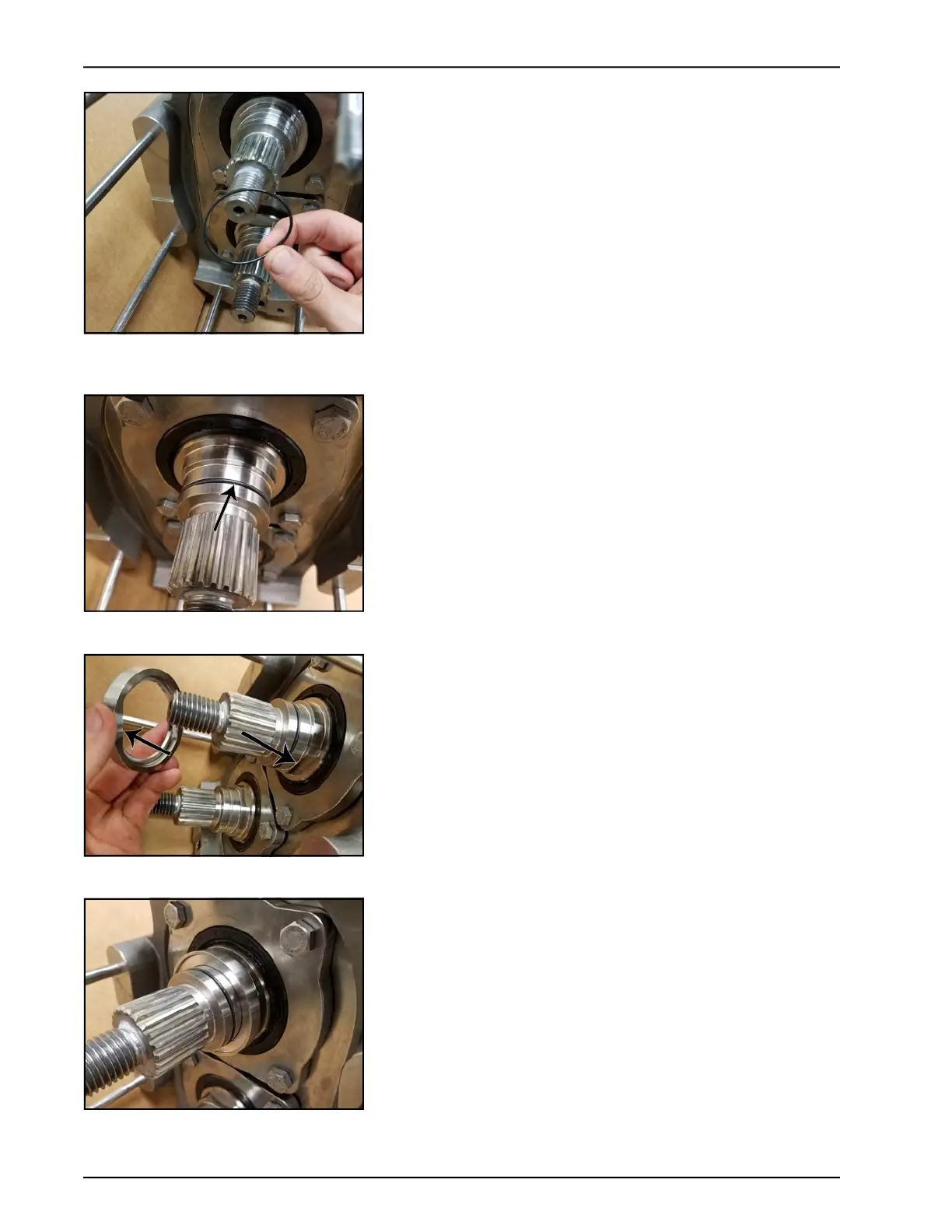

Figure 163 - Lubricate and install O-
ring
Figure 164 - O-ring installed
Figure 165 - Install seal seat
Figure 166 - Seal seat installed
