5. Remove the seal seat from the shaft.
6. Remove the sleeve back O-ring from the groove on the shaft
and discard it.
Install Body Seal Components
1. Place the body on a protected surface. Lubricate and install
the seal housing O-ring. Figure 158 shows the seal housing
O-ring installed.

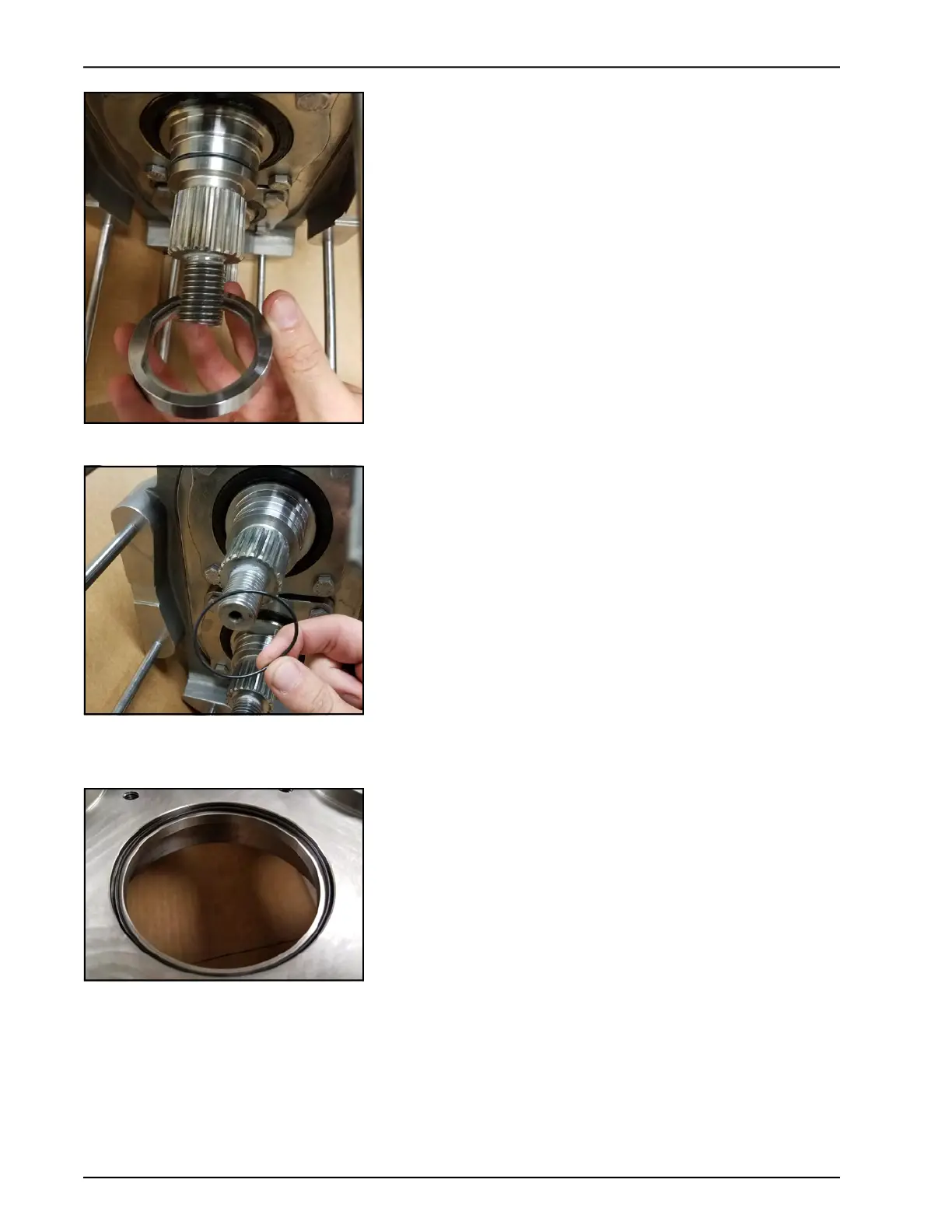

Figure 156 - Remove seal seat
Figure 157 - Remove O-ring
Figure 158 - Seal housing O-ring
installed
