Waukesha Cherry-Burrell
®
Brand Universal 3 Pump Installation
11/2018 95-03103 Page 25
Check Belt and Chain
Drive Alignment
Use a straight edge to visually check the belt or chain alignment.
Keep the shaft distance to a minimum (Figure 28, item A).
After the piping is complete and before the belts are installed,
manually turn the pump shaft to ensure it turns freely.
Check Pump Rotation Check the direction of the drive rotation to determine the rotation
direction of pump (Figure 29). After the correct drive rotation is
verified, connect the coupling and assemble the pump and cou-
pling guards.
NOTE: The pump is bidirectional.
The pump covers in the figures below have been removed to
view the rotor rotation. Never operate the pump with the covers
removed.

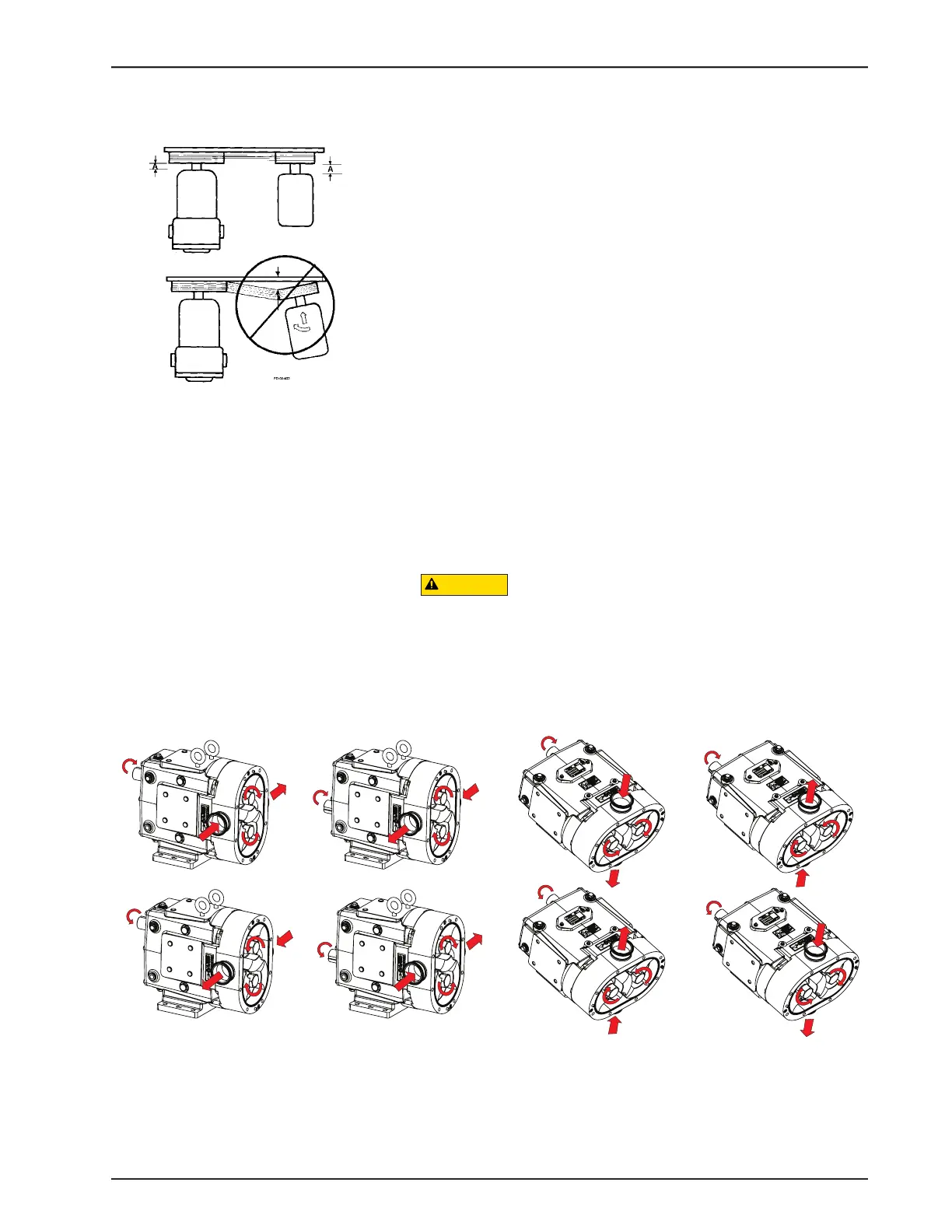

Figure 28 - Aligning Belt and Chain
Drives
Figure 29 - Pump Rotation (Liquid End Shown)
Upper Shaft Drive Flow,
Horizontal Porting,
Vertical mount
Lower Shaft Drive Flow,
Horizontal Porting,
Vertical mount
Upper Shaft Drive
Flow, Vertical Porting,
Horizontal mount
Lower Shaft Drive
Flow, Vertical Porting,
Horizontal mount
