Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Maintenance
11/2018
95-03103
Page 65
5.
Figure

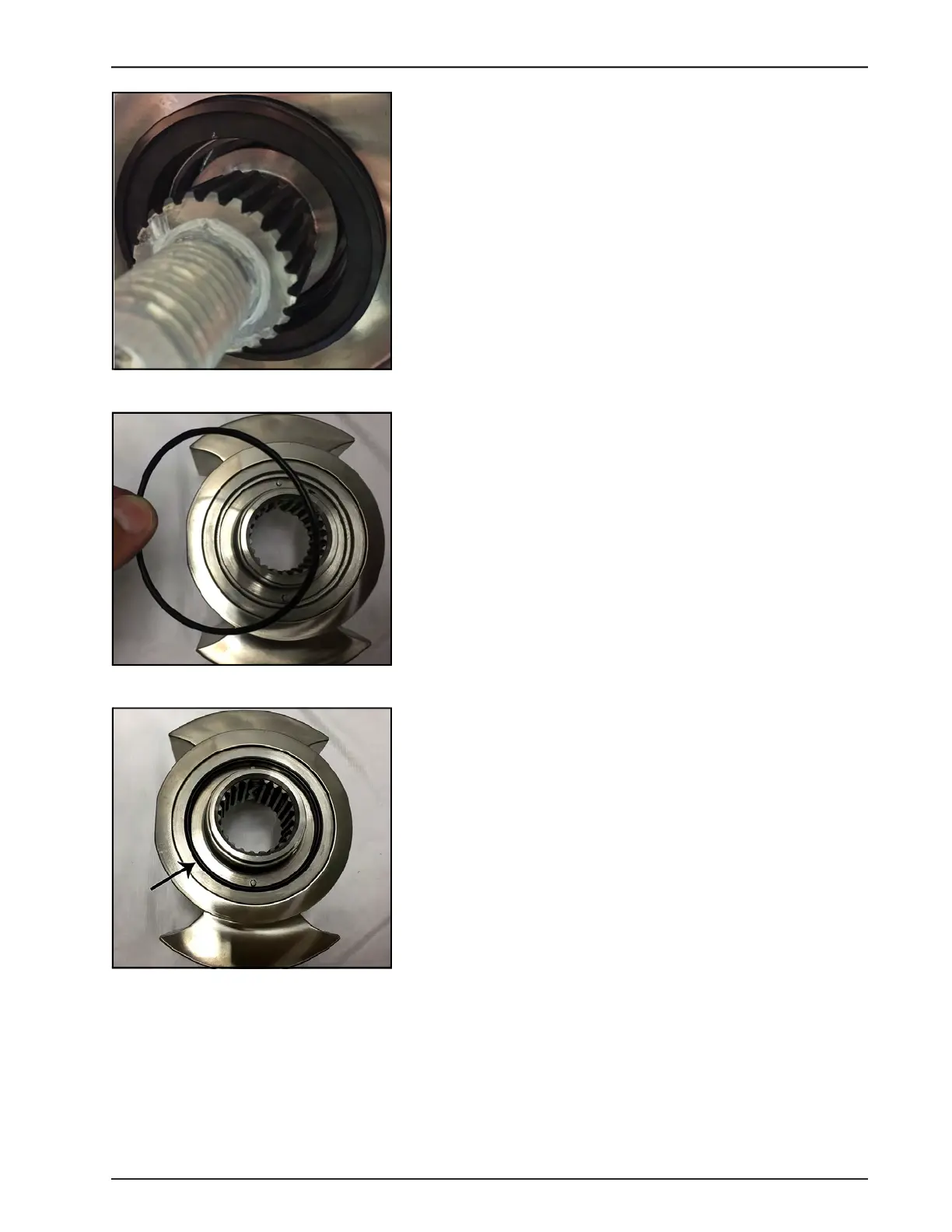

137 shows the stationary seal installed.
6.
Install the lubricated rotary seal O-ring into th
e rotor.
7.
Figure
139 shows the O-ring installed.
Figure 137 - Stationary s
eal installed
Figure 138 - Install seal O-ring
Figure 139 - Seal O-ring i
nstalled
64
66
