Parts List Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 126 95-03103 11/2018

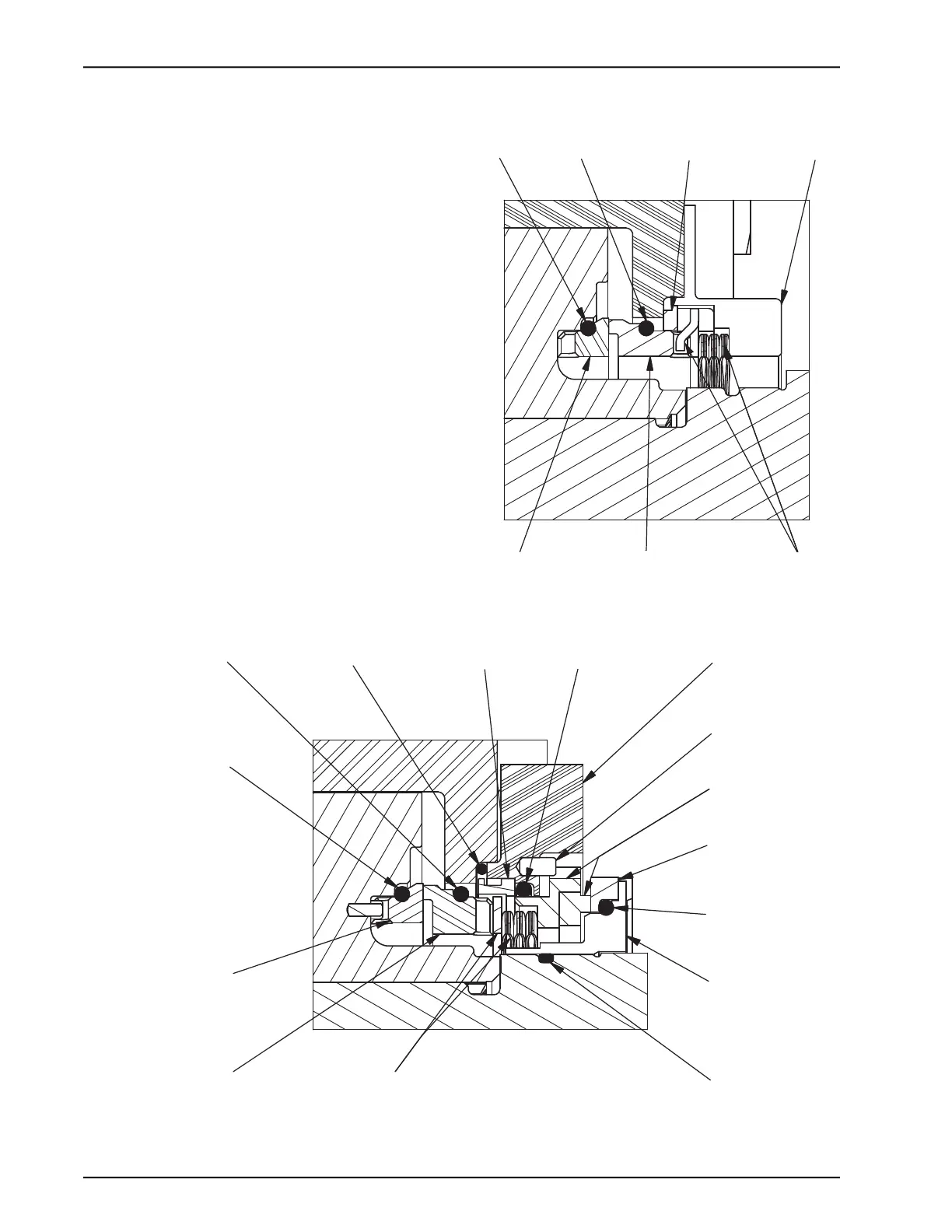

Universal 3 Standard Seal Cross-Section
Items in bold below are contained in the seal kits listed
on the following pages. For individual item part numbers,
see page 123.
151 O-Ring, Adjusting Ring
152 Adjusting Ring
153 O-Ring, Flush Rotary Seal"
154 Flush-Side Rotary Seal
155 Seal Retaining Bolt
156 Flush-Side Stationary Seal
157 O-Ring, Flush Stationary Seal
158 Wave Spring kit (Wave spring + drive ring)
159 Seal Housing Bolt
160 Seal Housing - DM, includes stop pin
160A Stop Pin, Seal
161 Shaft Ring - DM
162 O-Ring, Seal Housing
163 O-Ring, Product Stationary Seal
164 Product-side stationary seal
165 Product-side rotary seal
166 O-Ring, Product Rotary Seal
167 Seal Housing Bolt
168 Seal Housing - SM
169 Wave Spring kit (Wave spring + drive ring)
170 Shaft Ring - SM
171 Stationary Seal
Figure 224 - U3 Single Mechanical Seal
Figure 225 - U3 Double Mechanical Seal
161
160
156
154
160A
152
PD100-668
