FX Sends

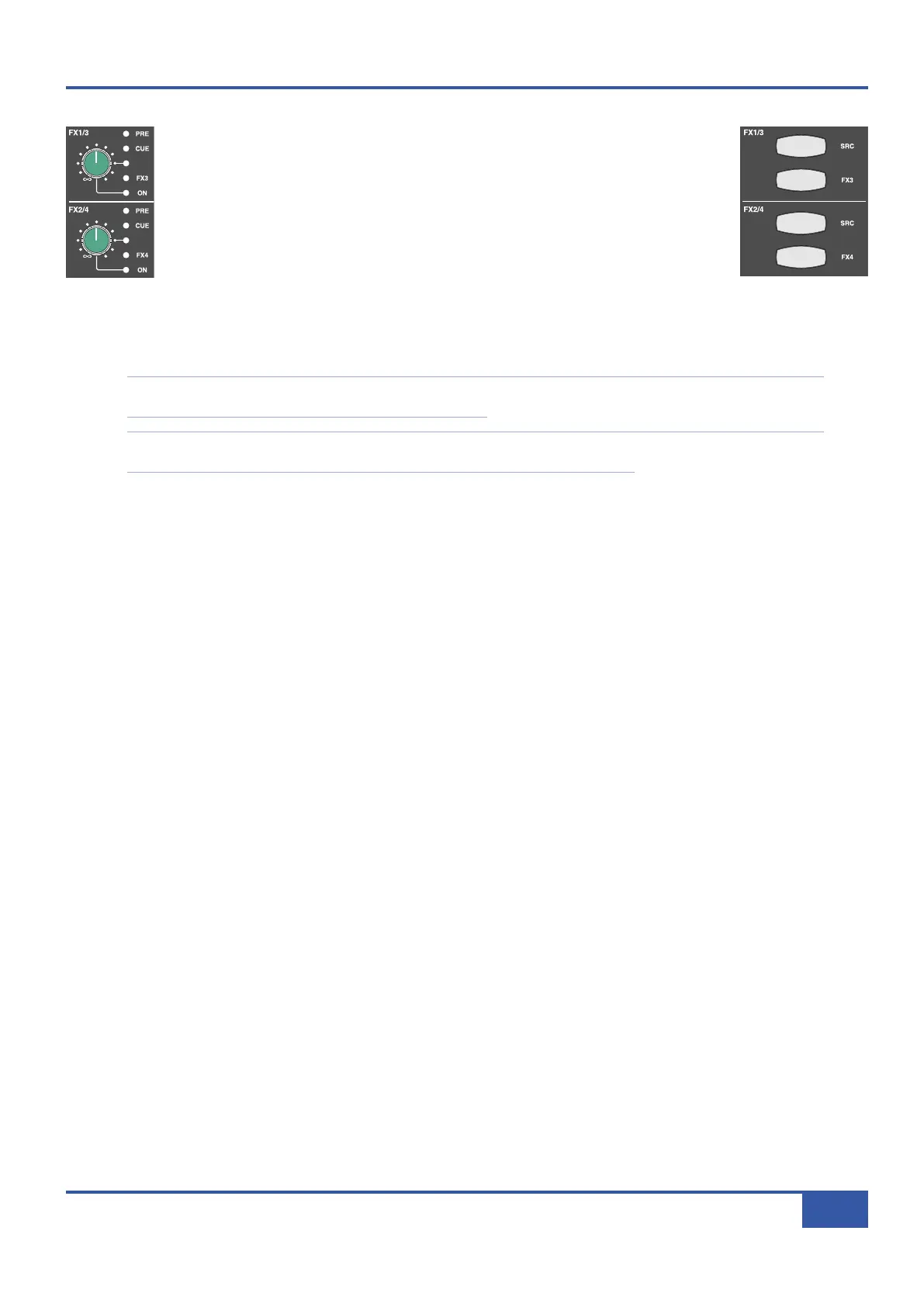

Matrix has four mono FX sends. Only two FX busses can be fed at any one time by a
particular channel, using the two gain pots (which have Total Recall LEDs). By default,
t
he sends to FX busses 1 and 2 are active. Pressing the FX3 button in the Master
Channel switches the FX1/3 signal feed from the FX1 bus to the FX3 bus, and this
routing is indicated by the FX3 LED to the right of the gain pot being lit. Similarly,
pressing the FX4 button in the Master Channel switches the FX2/4 signal feed from the
FX2 bus to the FX4 bus, and this routing is indicated by the FX4 LED to the right of
t
he gain pot being lit.
Pressing the gain pot switches the send on and off. The ON LED below the pot will light to indicate that it is on.
The FX sends are fed post-fader by default, but have two alternative sources: the pre-fader (post-insert) signal and the CUE bus.
Tip: Signal processing can be added to stereo cue sends when they are being used as additional mixdown channels (see
previous page) by sourcing the FX busses from the CUE bus.
Tip: When using SuperCue (see previous page), you can avoid sudden loss of the FX sends signal processing in the
ARTIST MONITOR during drop-ins by sourcing the FX busses from the CUE bus.
The source is selected using the SRC button in the FX1/3 and FX2/4 sections of the Master Channel, and is indicated by the
LEDs above and to the right of the send gain pot, as well as by the colour of the SRC button:
S
S
i
i
g
g
n
n
a
a
l
l
S
S
o
o
u
u
r
r
c
c
e
e
L
L
E
E
D
D
i
i
n
n
d
d
i
i
c
c
a
a
t
t
i
i
o
o
n
n
S
S
R
R
C
C
b
b
u
u
t
t
t
t
o
o
n
n
c
c
o
o
l
l
o
o
u
u
r
r
Post-fader (default setting) No LED Unlit
Pre-fader PRE is lit Green
Stereo Cue Send CUE is lit Red
When an FX3 or FX4 bus is pressed, the source selection and gain for that signal feed remain unchanged.
