Rigging the unit:
The base of the lamp has six threaded inserts (for ISO M10 bolts) for fixing hanging clamps, of
which, a minimum of two must be used for bolting on the hanging clamps.(See diagram)
These bolts must not protrude more than 30mm into the base of the unit.
It is recommended “wrap-over” (half couplers or Cheeseborough) type clamps are used. These are
available in pairs, from STARLITE, complete with fixing bolts. Part No.0370/2
An optional base plate, with additional ¼ turn “Camloc” fixing points, is also available, from
STARLITE Part No. 0340/C.
Safety Wires:
On the latest models, a flip up safety point has been provided, on the base plate, to assist with the use
of safety wires and as a roping/lifting point when rigging.
PLEASE NOTE: The positioning, fixing and safety bonding of the unit is the sole
responsibility of the owner/user. Please make sure the unit is properly secured
and has a safety wire in compliance with local safety regulations.
Hanging Centres:

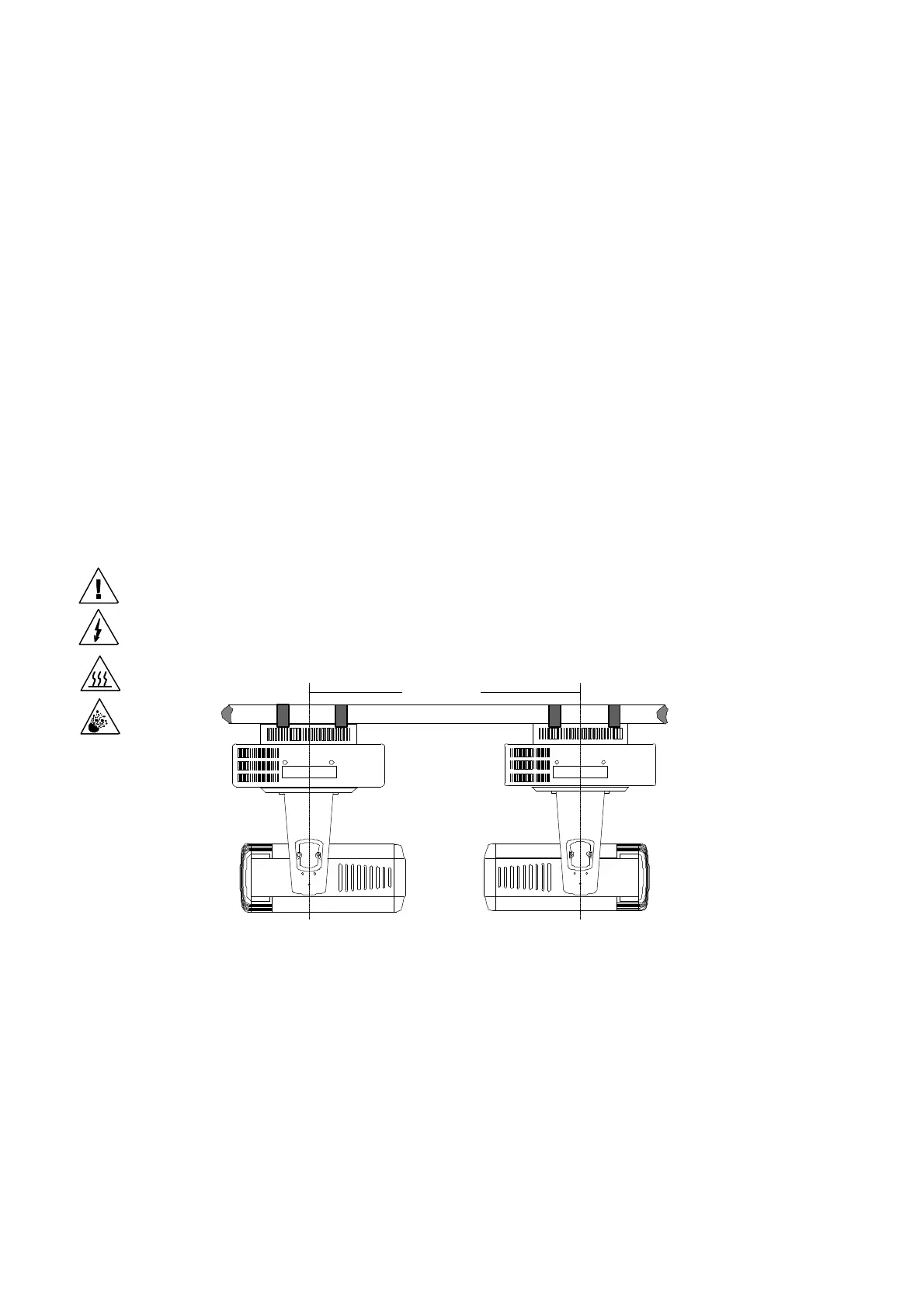

Please ensure that there is 700 mm (27.5 ins) between the centres of the units to allow for unrestricted
movement of head and 750mm (29.5 ins) away from any combustible materials (curtains, plastics,
etc.)
700mm
