STARLITE Mk5 User Manual Version 1.2
44
Removing the Gobo Module
11. It is not recommended that you remove the gobo module but should it be necessary, use the
following procedure.
The gobo modules are retained by two studs which locate into sliding clips located between the
rear lamp housing plate and the finned lamp housing.
12. Using a small pair of long nose pliers, grip the hole in the retaining clip and pull upwards
until the stud is released and slide the gobo module towards the front of the lamp ensuring
that the top of the module is tilted more towards the front of the lamp.
13. Do not hold the gobo module by the cylindrical light guide
14. When the stepper motors clear the rear lamp housing plate, continue to tilt slightly forwards and
downwards on the colour wheel side. Care should be taken to ensure that the colour wheel does
not foul on the tilt motor assembly and that the colour wheel is rotated to move the registration
magnet towards the centre of the lamp for protection.
Note: After replacing this module, rotate the gobo and colour wheels to locate the magnets over their
respective Hall effect sensors. Ensure that the magnets sit between 2mm and 3 mm from the surface of
the sensor to guarantee activation.

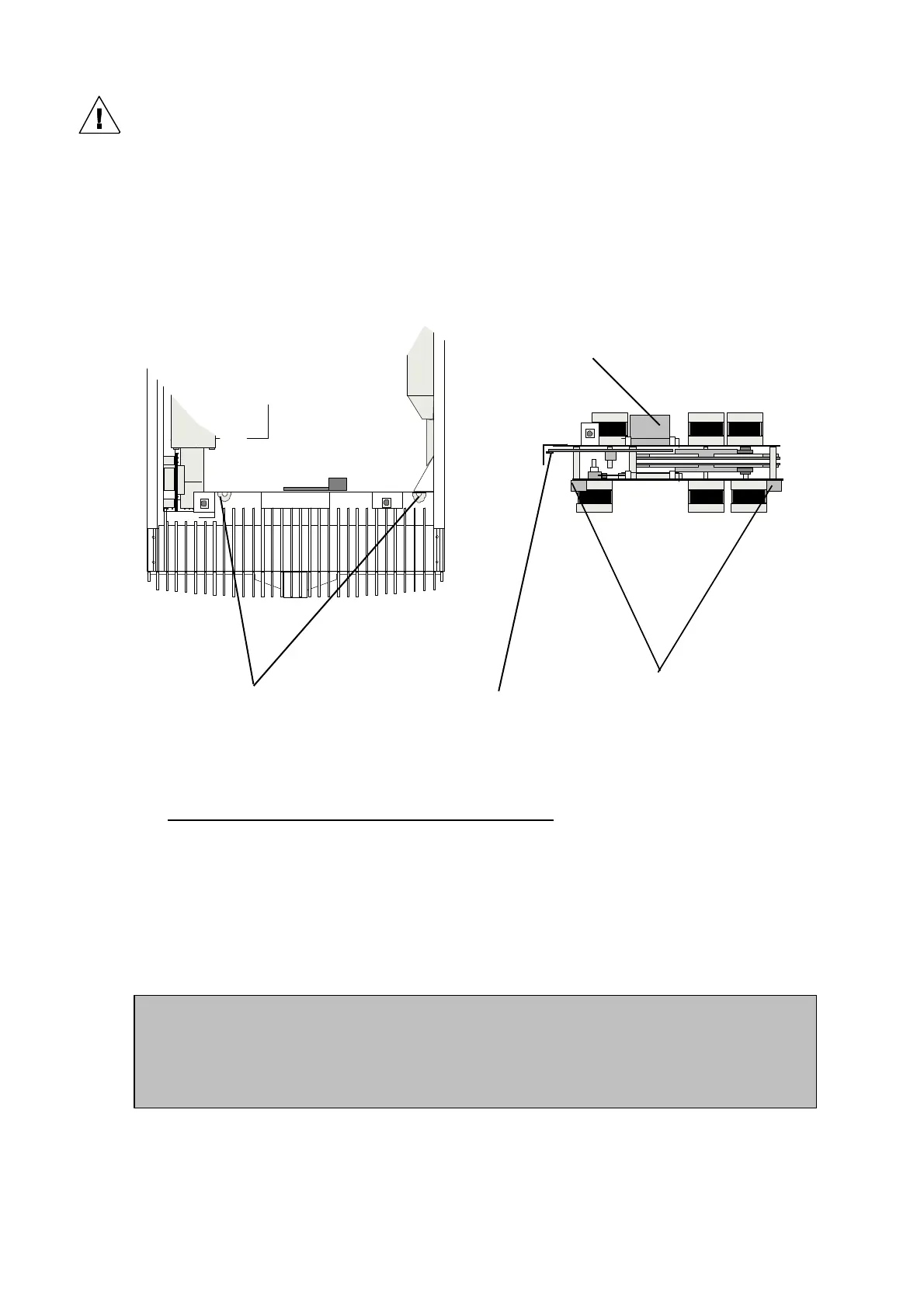

Sliding retaining
clips
Registration magnet
(move to centre of lamp
BEFORE removing module)
Locating studs
Cylindrical light
guide
Important
When replacing any of the modules, please ensure the spring wires (at the top and bottom of each
module) locate in the grooves cut into the two retaining bars. This ensures the optimum optical
alignment of the different modules in the lamp.
