STARLITE Mk5 User Manual Version 1.2
31

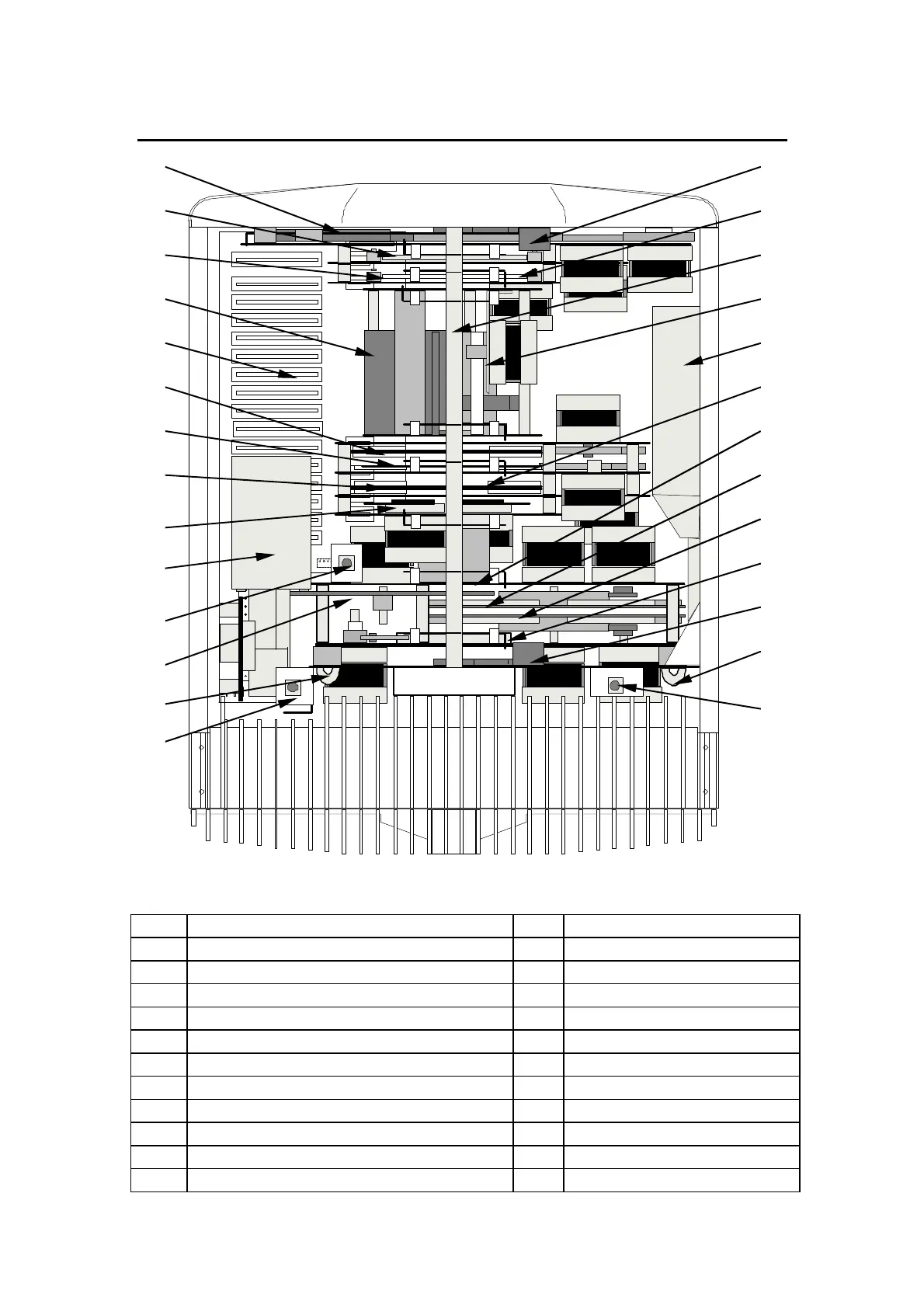

Open view of the Head (Fan side)
(1) Retaining bar clamp (2 off) (13) Prism section
(2) Prism, frost and dim module (14) Frost section
(3) Retaining bar (15) Dimmer section
(4) Focus module (16) Triplet lens carrier
(5) Main cooling fan (17) Head motherboard and cards
(6) CMY and shutter module (18) Magenta colour section
(7) Gobo, iris and colour wheel module (19) Cyan colour section
(8) Rotating gobo wheel (20) Yellow colour section
(9) Rotating gobo wheel (21) Shutter section
(10) Iris (22) Tilt motor assembly
(11) Gobo module retaining clip (2 off) (23) Secondary fan retaining clip
(12) Head cover retaining clip (2 off per side) (24) Colour wheel
Secondary fan unit, card retainer and daughter cards not shown for reasons of clarity
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(1)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)
(24)
(11)
(12)
