STARLITE Mk5 User Manual Version 1.2
27
Set the Starlite MK5 Unit Voltage
The method of setting the unit voltage varies depending on which type of lamp ballast is fitted to the
unit.
Please refer to the specification label on the base of the unit to determine what type of lamp
ballast is in the unit.
In an “electronic ballast” model only the DC supply voltage may need to be altered because the
Switch-mode lamp supply is auto-switching and is not frequency dependant.
Electronic ballast models are operable in the following Voltage/Frequency ranges;
95-130 Volts and 200-250 Volts AC at 47-65 Hz
In an “magnetic ballast” model, both the DC supply voltage and the magnetic ballast frequency may
need to be altered.
Magnetic ballast models are operable in the following Voltage/Frequency range;
200-250 Volts and 50 or 60 Hz
DC Supply (Motors & Electronics) Voltage Selection
The unit “DC supply” voltage selection can be set by adjusting the voltage select switch located in the
base of the unit. Access to this switch requires the removal of the base covers and therefore care
should be taken to avoid the possibility of electric shock.
Ensure that the unit is unplugged from the mains supply before removing the base covers.
To change the selector switch:

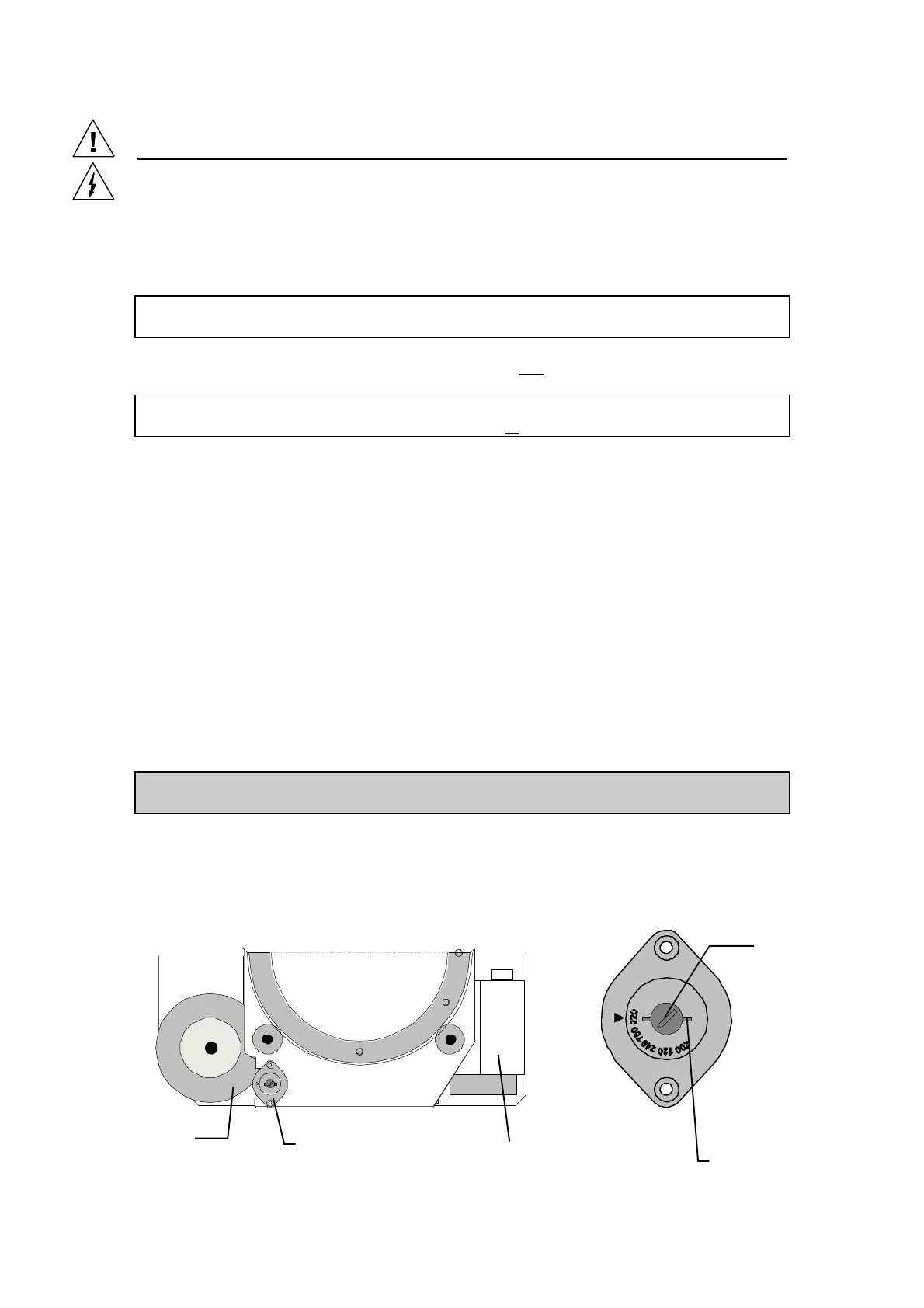

The voltage selector switch is located next to the toroidal transformer, in the base of the unit, above
the input connector panel (See diagram below)
Using a medium sized flat bladed screwdriver, first remove the centre fuse holder complete with the
fuse. Then with a small coin (5p, 10¢, 5¥ etc.) or large flat bladed screwdriver, push down and rotate
the selector dial to the desired voltage range. Replace the central fuse holder and fuse.
Note: If the local voltage does not exactly match any of the values on the selector dial, use the
nearest lower value. E.g. Local voltage = 230 Volts. Set switch for 220 Volt selection.
Voltage Selector
Switch
Toroidal
Transformer
PFC Capacitors
(if fitted)
Fused
Holder
(Screwdriver
release)
Rotating Selector
Switch
(Use Coin or large
screwdriver to push
down and rotate
selector,
