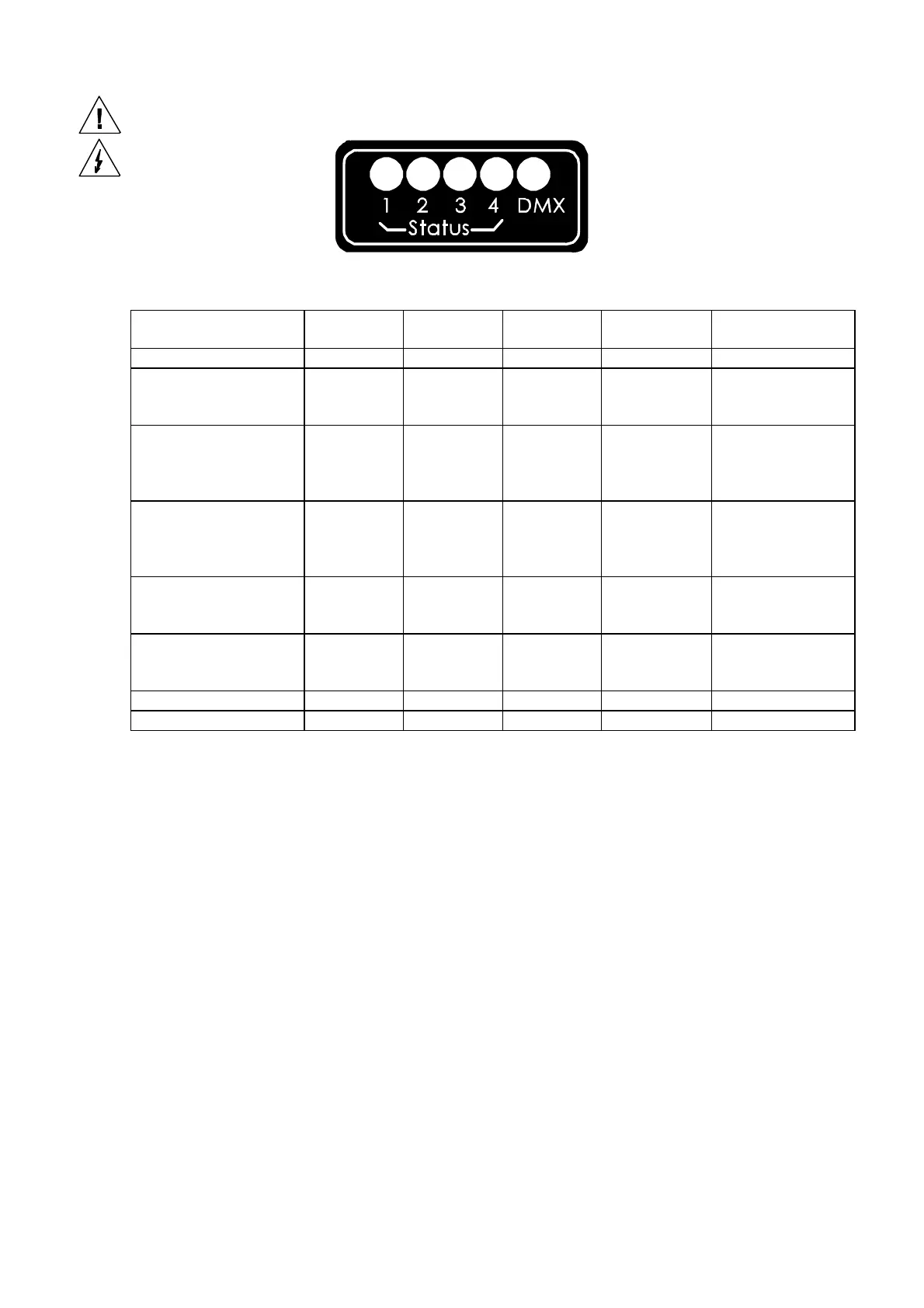

Status LED’s
Unit Status Status 1 Status 2 Status 3 Status 4 Green LED
(DMX)
Power Up, No DMX
Off Off Off On On
Valid DMX Signal
Off Off Off Flash until
lamp strike
(5 Sec’s)
Off
DMX removed
Off Off Off Slow Flash for
2 Mins before
Lamp
switched off
On
Cooling down after
lamp switched off
Off Slow Flash
Alternating
with LED 4
(3 mins)
Off Medium flash
Alternating
with LED 2
(3 mins)
On or off
depending on DMX
status
Lamp Strike Enabled
2 minute time out
Enabled
Off
N/A
Off
N/A N/A
Lamp Strike Enabled
2 minute time-out
Disabled
On
N/A
Off
N/A N/A
Lamp Strike Disabled
N/A N/A On N/A N/A
Interlock Failure
N/A N/A N/A On N/A
Note:
During the cool down period with LED’s 4 and 2 flashing, it is not possible to re-strike the unit by
applying valid DMX for 3 minutes. If DMX is applied, the unit will re-strike after this 3 minute
sequence.
