STARLITE Mk5 User Manual Version 1.2
43

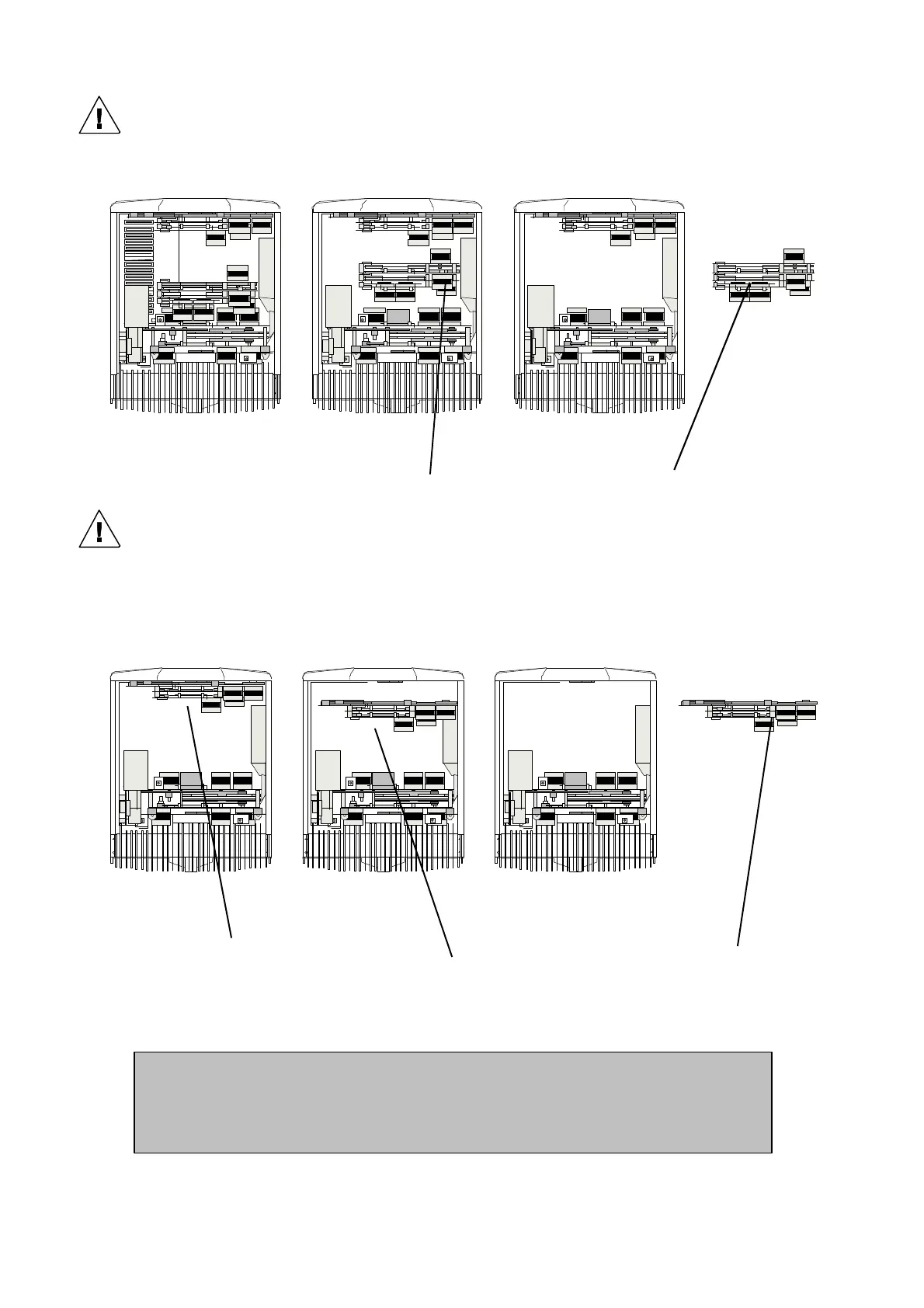

Removing the CMY Module
9. Slide the CMY colour fading module towards the front of the lamp and lift out.
Removing the Prism Module
10. Make sure that the prism is fully retracted and then slide the module towards the rear of the lamp
and lift out at an angle to clear the main cooling fan.
Slide CMY module
forward to clear
Gobo module.
Lift out CMY
module
Prism fully retracted
inside module.
Prism module slid to
rear of head and lifted
out at an angle to clear
the main head fan.
Prism module
lifted clear of
fixture head.
Important
When replacing any of the modules, please ensure the spring wires (at the top and bottom of
each module) locate in the grooves cut into the two retaining bars. This ensures the
optimum optical alignment of the different modules in the lamp.
