6-2
764333-766

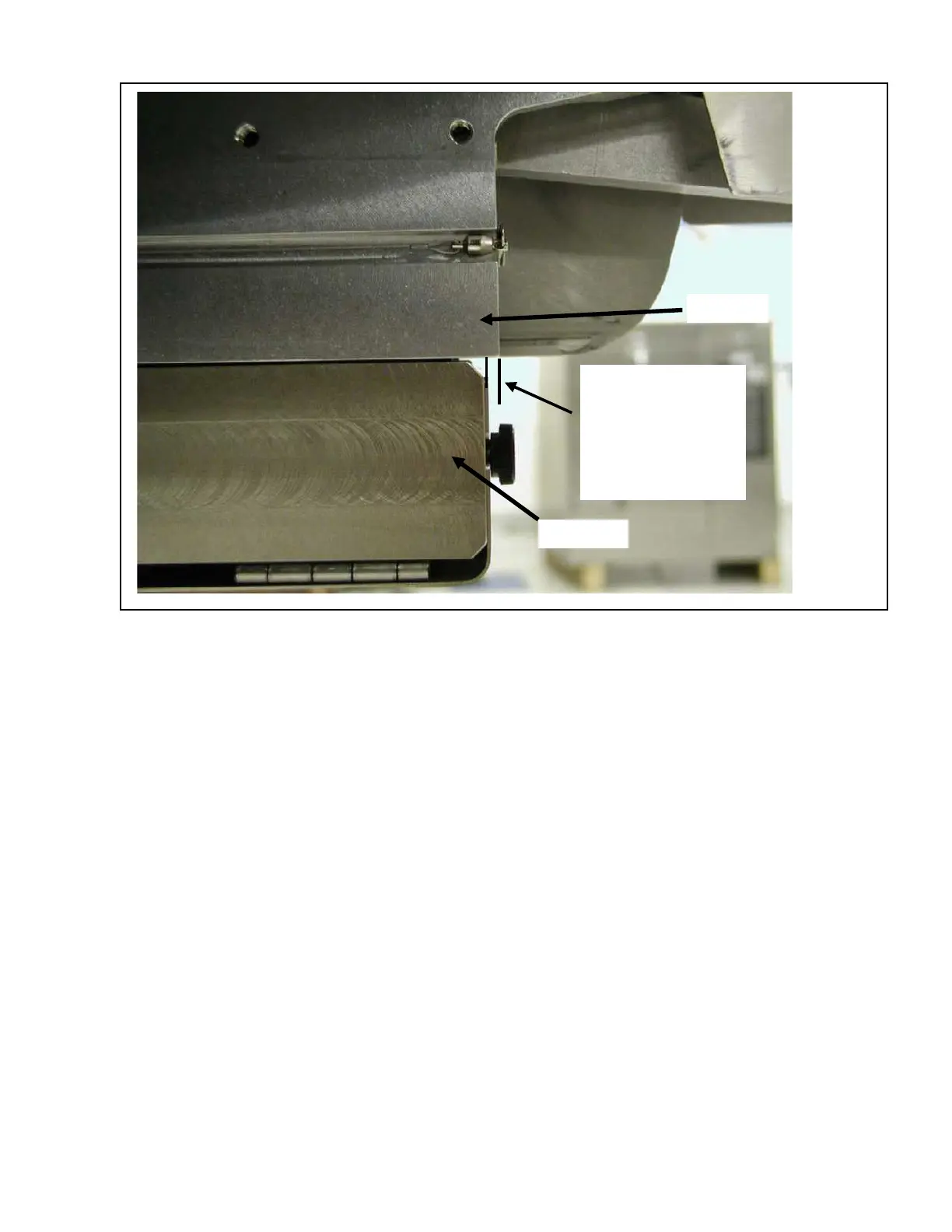

Figure 6-1. Table Sensor Calibration
8. Display shows ADJUST MODE.
NOTE: During table sensor calibration, note the
following:
1) The Reverse Patient LED must be OFF.
2) Do not press LEVEL button during procedure
or control exits Calibration Mode without
storing the values.
3) Pressing FLOOR LOCK button during
procedure orders the control to skip displayed
articulation. This is NOT recommended during
a final calibration.
9. If ADJUST MODE does not display or Reverse
Orientation LED is ON, turn Hand Control OFF
(press STOP) then ON and repeat Step 7 until
correct results appear.
10. Press Reverse Orientation button, display shows
LEVEL ADJ.
11. Using a level, position tabletop (starting with seat
section) so all sections are level in both horizontal
directions.
12. Slide tabletop until it is approximately 3/16"
(4.8 mm) past foot end of tilt frame (see
Figure 6-1). This is known as "Zero Slide" position.
13. Press Reverse Orientation button to save setting.
14. With display showing TILT LEFT MAX, tilt
tabletop to maximum left tilt position and press
Reverse Orientation to save setting.
15. With display showing TILT RIGHT MAX, tilt
tabletop to maximum right tilt position and press
Reverse Orientation to save setting.
16. Display shows TREND MAX. Use TILT LEFT
button to return table to center. Do not use LEVEL
button.
17. Put table into maximum Trendelenburg then
press Reverse Orientation button to save setting.
18. Display shows REV TREND MAX. Put table into
maximum Reverse Trendelenburg then press
Reverse Orientation button to save setting.
19. Display shows LEG DOWN MAX. Use TREND
button to return table to center. Do not use LEVEL
button.
20. Lower leg section to maximum position and press
Reverse Orientation button to save setting.
21. Display shows
LEG UP MAX
. Raise leg section to
maximum position and press
Reverse Orientation
button to save setting.
Tilt frame
Extend table
top 3/16”
beyond the
foot end of the
tilt frame.
Tabletop
Tabletop
Extend Tabletop
3/16" (4.8 mm)
Beyond Foot
End of
Tilt Frame
Tilt Frame
