Steris 4085 - Page 164

36
764333-767

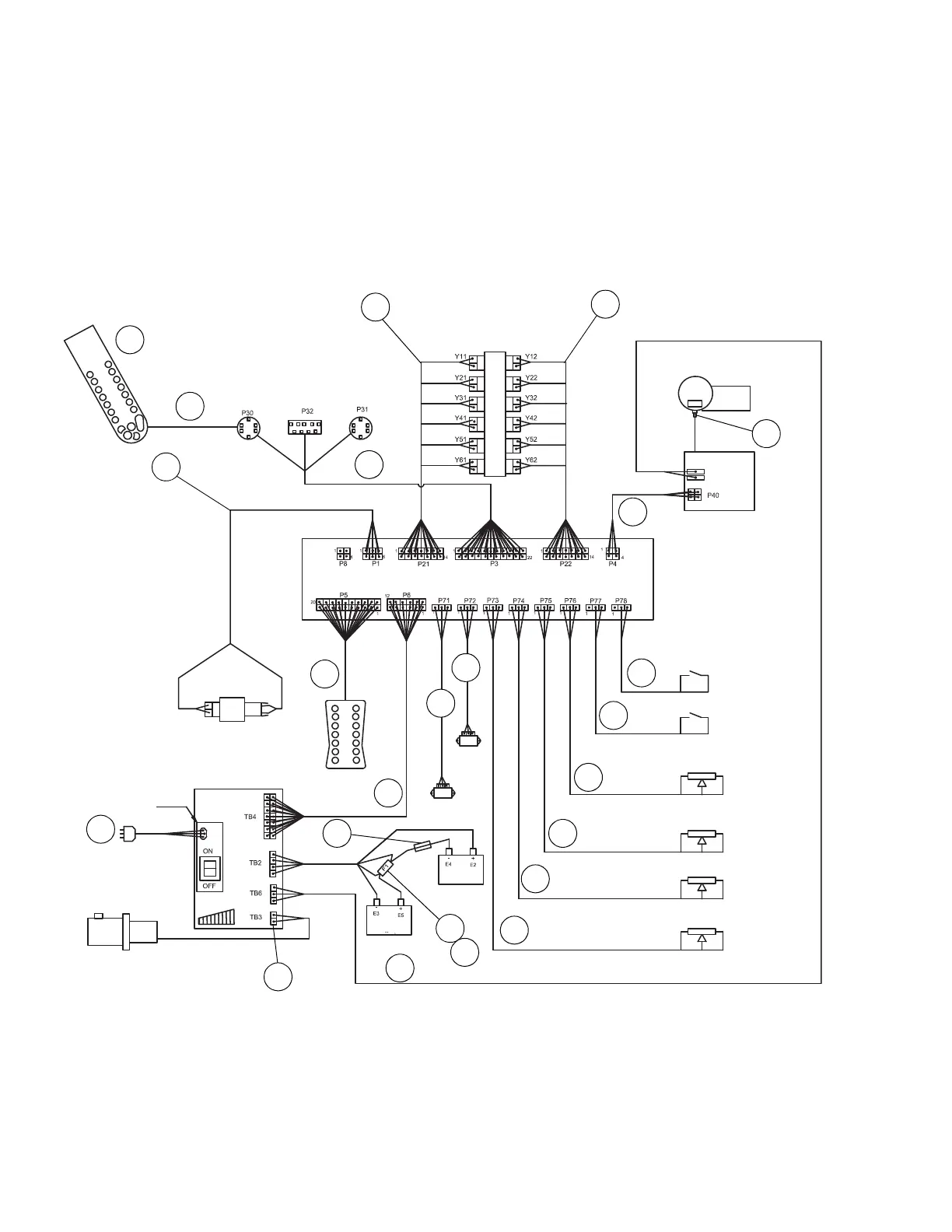

Figure 6. 4085 Surgical Table Electrical Cables
Main Valve Box Assembly
342228-555
Sliding Motor Assembly
342231-555
Sliding Power Board
342232-555
Electric Unit Assembly 150832-769
Floor Lock Manifold
Assembly
150832-418
Power Supply/Battery
Charger
120V 542200-902
220V 542201-902
Power Entry
Module
764332-972
Fuse Drawer
764333-768
Leg Limit Switch Kit
342274-555
Kidney Limit Switch Kit
764333-536
Battery 1
Back Sensor Kit
342242-555
Leg Sensor Kit
342274-555
Trend/Tilt Sensor
688200-019
Trend/Tilt
Sensor
688200-019
Hydraulic Pump
Assembly
P/N 342211-555
Battery 2
Off
Baragraph
Slide Sensor
Height Sensor
1
2
3
8
4
5
7
24
6
9
11
10
18
23
20
19
21
12
13
14
15
16
17
22
