Move Tabletop into Trendelenburg
Move Tabletop into Reverse Trendelenburg
Floor Lock Function (see Table 2-3)
Slide Tabletop Toward Head End (SLIDE HEAD)
Slide Tabletop Toward Foot End (SLIDE FOOT)

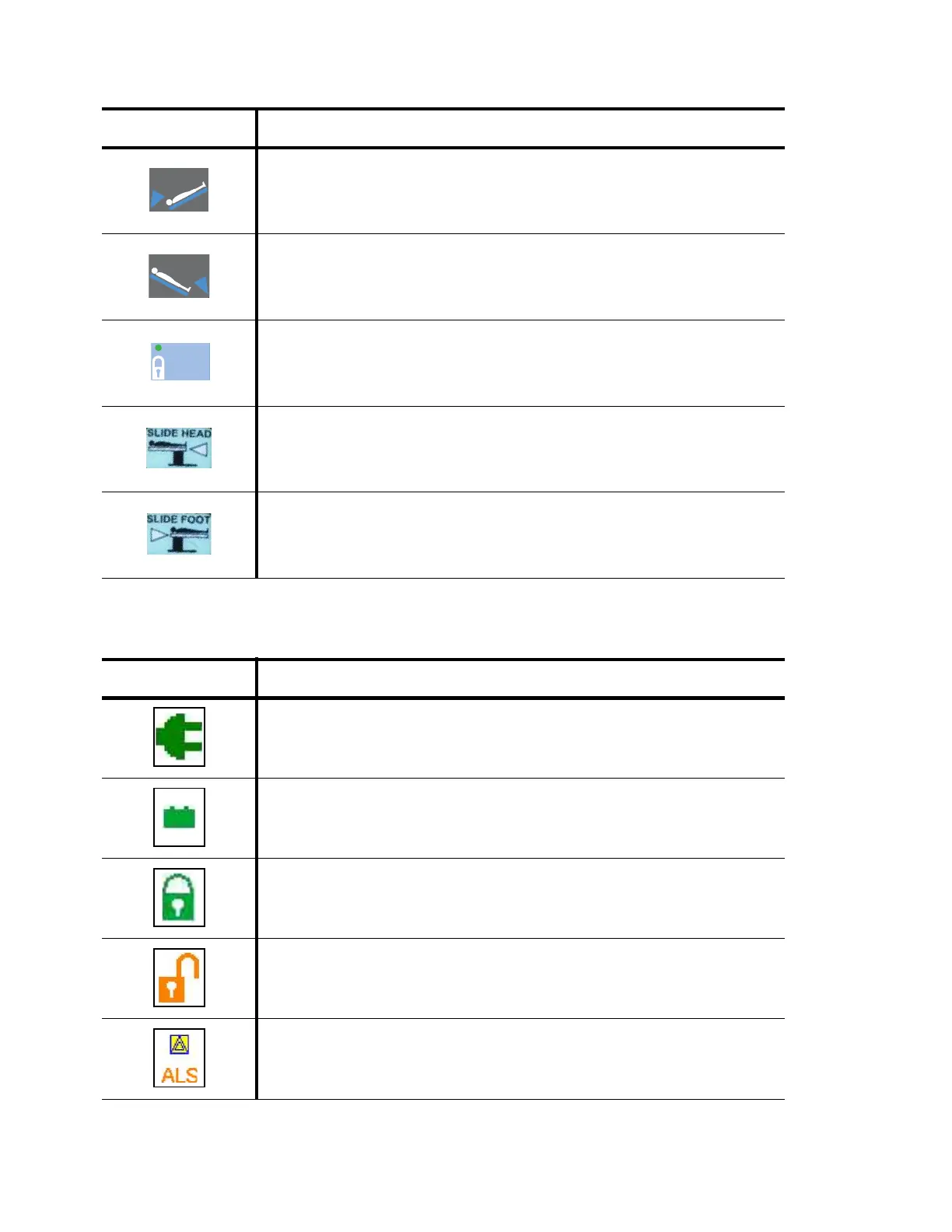

Table 2-2. Definition of Symbols on Hand Control (Cont’d)
Symbol Definition
TREND
REVERSE
TREND
FLOOR
LOCK
Table 2-3. Definition of Hand Control LCD Display Screen Icons
Symbol Definition
Table Powered by Facility Power.
Green = Normal Condition; Red = Fault Condition.
Table Powered by Battery Power.
Green = Battery Fully Charged; Orange = Battery at Half Charge; Red =
Battery Empty (Table Hydraulics Power is OFF).
Floor Locks Engaged (Green).
Floor Locks Unlocked (Orange).
ALS Notification (ICON and Text).
