7 Special equipment

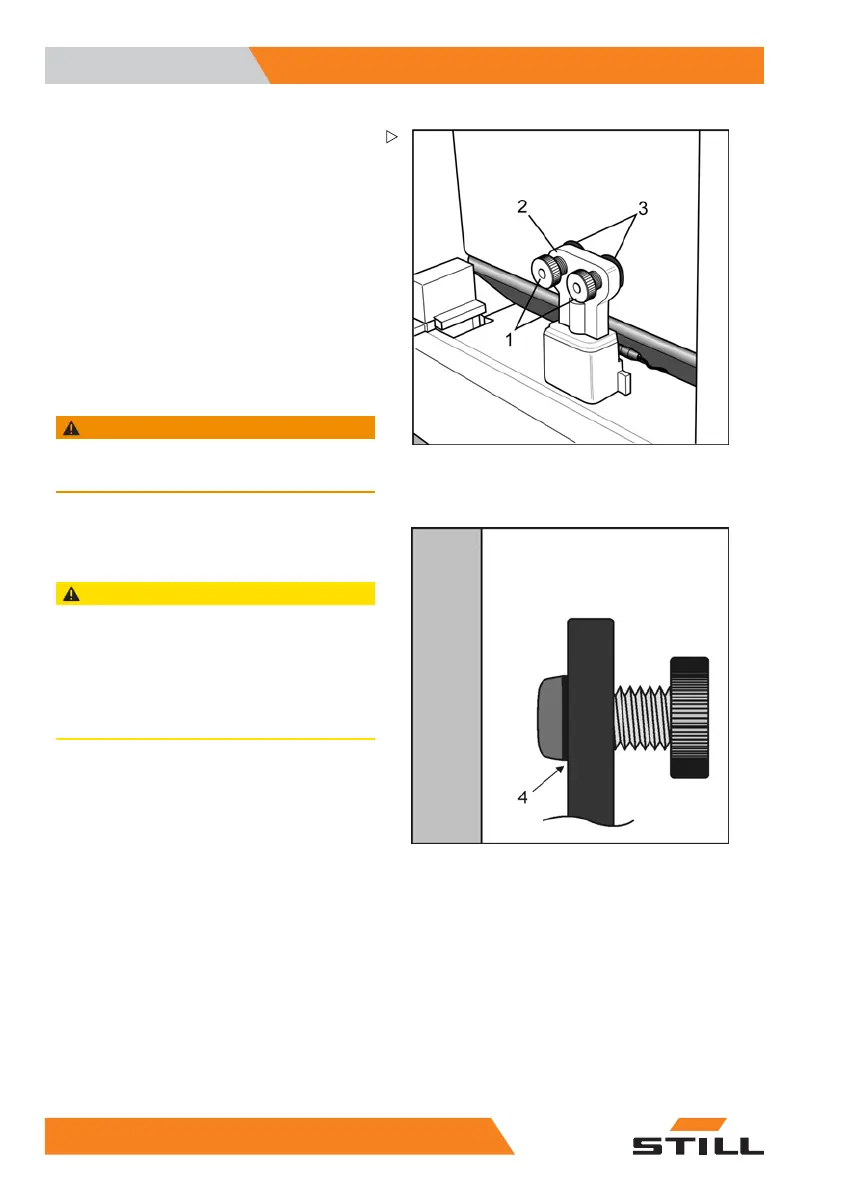

Load-side operating panel
1 Knurled-head scre
w
2Batterylock
3 Rubber buffer
Battery on roller tracks
Description
The battery rests on roller tr
acks and can
be installed and removed from
thesidewith
the use of a battery changeove
rframe*. The
battery is secured on both s
ides with clamping
devices and is therefore ke
pt in its position.
Monitoring
The battery locks are electrically monitored. If
one of the locks is not correctly locked in place
an error message appears in the display and
the truck will stop.
WARNING
Every time before starting work the battery locks (2)
must be checked for perfect condition and function.
*Option
Setting the battery lock
CAUTION
Risk of crushing and damage to property
An improperly fixed battery may fall out of the truck
when cornering and put people and property at
risk. If the battery cannot be clamped securely, the
responsible service centre must be called. Further
operation with a faultily or improperly clamped
battery is dangerous.
For the operational safety of this truck, the
traction battery must be securely fixed in the
battery compartment by means of clamping.
The truck must also be equipped with an
adjustable battery lock . The battery lock
