4 Operation
General commissioning
Loading
To secure the truck to a loading area for
transport, a total of eight wooden wedges and
suitable tension belts must be used. Position
two wooden blocks at the front of the truck
and two at the rear, and position the remaining
blocks in pairs on the right and left of the truck.
The tension belts must be guided over the
battery compartment and around the posts
to make sure that the truck is firmly on the
ground. In addition, the battery compartment
cover must be removed. In trucks with high lift
masts, these must also be secured at the side
with belts.

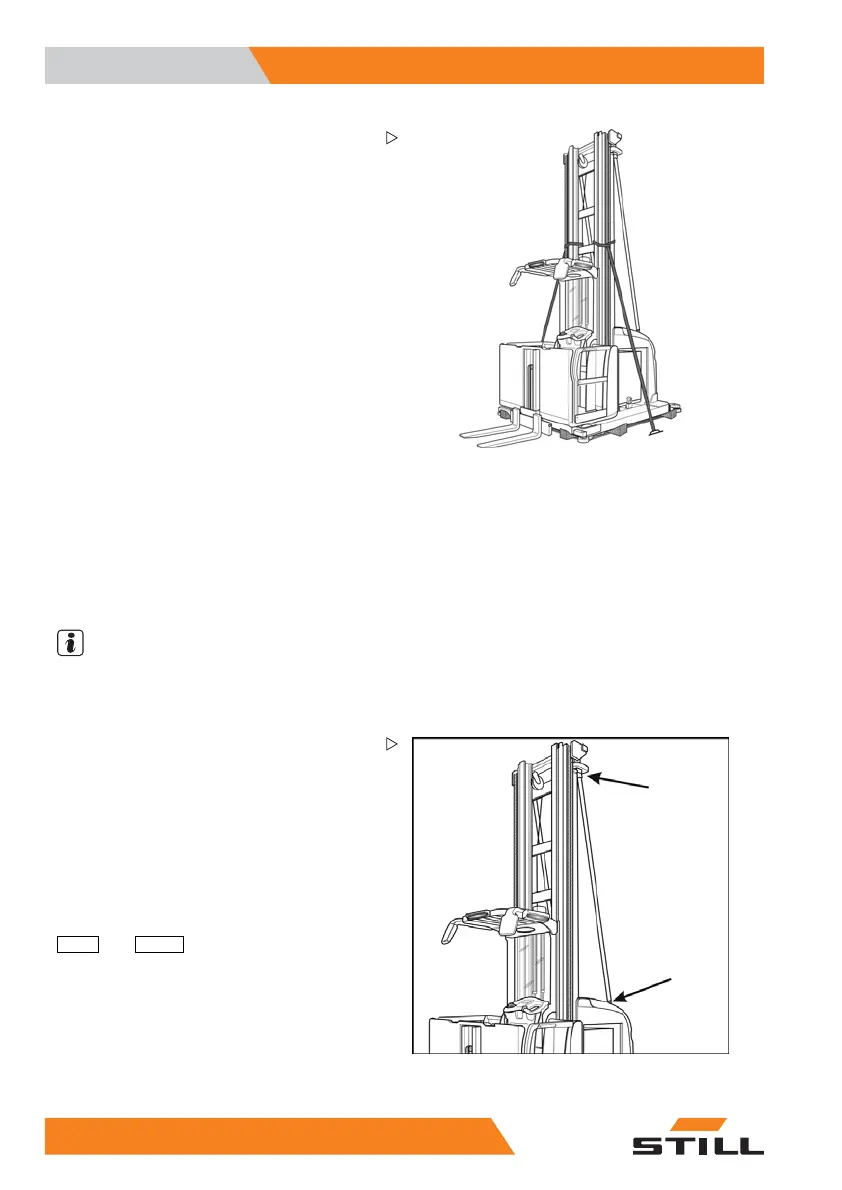

Hookingontheliftmast
To hook on the lift mast, be
lts can be wound
around the uppermost brid
ge pieces. Har-
nesses suitable for this p
urpose must be used
(shackle or lifting devic
e). If necessary, the
individual lift mast part
s can be lashed to each
other during this proces
s, to prevent them
from separating uninten
tionally and thus shift-
ing the centre of gravity
.
NOTE
Take care to ensure that neither the cables nor
hoses become crushed or torn.
Mast bracing
Mast bracing may be r
equired depending on
the configuration of
the order picking truck.
Once the mast bracing has been installed,
it must be adjusted according to factory
specifications and tightened to the specified
torques.
The mounting locations are marked with
labels. These labels specify the torques of
50 Nm
and
195 Nm
.
42
5213 804 2501 EN - 01/2016
