Flexible static memory controller (FSMC) RM0090

1548/1731 DocID018909 Rev 11

Note: The FSMC_BWTRx register is valid only if extended mode is set (mode B), otherwise all its

content is don’t care.

Mode C - NOR Flash - OE toggling

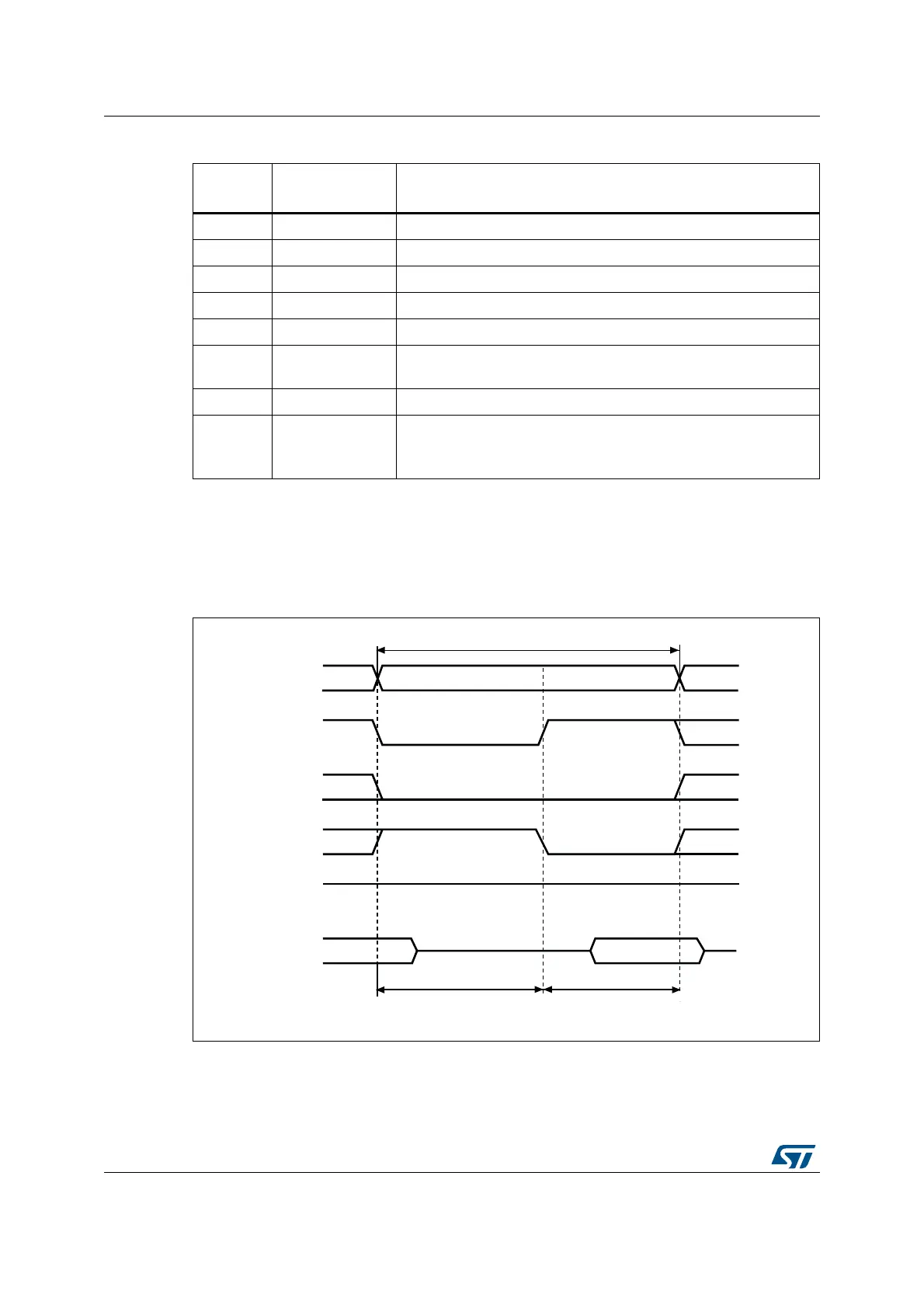

Figure 441. Mode C read accesses

Table 228. FSMC_BWTRx bit fields

Bit

number

Bit name Value to set

31:30 Reserved 0x0

29-28 ACCMOD 0x1

27-24 DATLAT Don’t care

23-20 CLKDIV Don’t care

19-16 BUSTURN Time between NEx high to NEx low (BUSTURN HCLK)

15-8 DATAST

Duration of the second access phase (DATAST+1 HCLK cycles for

write accesses,

7-4 ADDHLD Don’t care

3-0 ADDSET[3:0]

Duration of the first access phase (ADDSET HCLK cycles) for write

accesses.

Minimum value for ADDSET is 0.

A[25:0]

NOE

ADDSET DATAST

Memory transaction

NEx

D[15:0]

HCLK cycles HCLK cycles

NWE

NADV

data driven

by memory

ai15564
