Serial peripheral interface (SPI) RM0090

894/1731 DocID018909 Rev 11

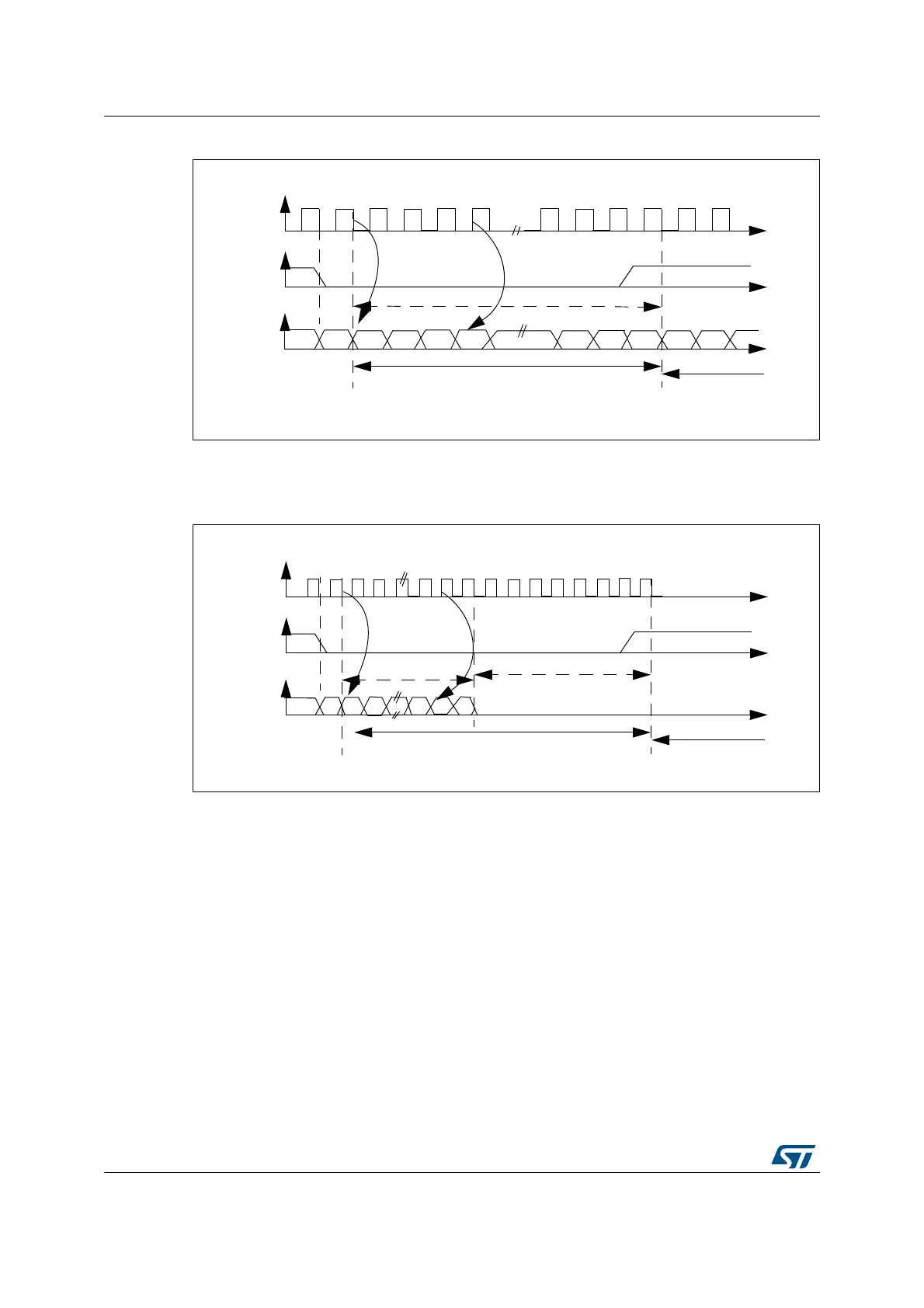

Figure 264. I

S Philips protocol waveforms (16/32-bit full accuracy, CPOL = 0)

Data are latched on the falling edge of CK (for the transmitter) and are read on the rising

edge (for the receiver). The WS signal is also latched on the falling edge of CK.

Figure 265. I

S Philips standard waveforms (24-bit frame with CPOL = 0)

This mode needs two write or read operations to/from the SPI_DR.

• In transmission mode:

if 0x8EAA33 has to be sent (24-bit):

MSB

LSB

MSB

Channel left

Channel right

May be 16-bit, 32-bit

Transmission

Reception

Channel left 32-bit

Channel right

MSB LSB

8-bit remaining

0 forced

24-bit data

Transmission

Reception
