NOTE:
• On this menu you can turn on/off the X/Y compensator by pressing ◄/► keys.
• If the instrument is equipped with laser plummet, opening this menu, the laser plummet adjusting
bar will display. With pressing ▲/▼ keys the laser lightness can be adjusted.
Centering with laser plummet
External influences and the surface conditions may lead to the requirement of the adjustment of the laser intensity.
The laser can be adjusted in 25% steps as required. If the instrument is equipped with laser plummet, after activating
electronic level, the laser plummet adjusting bar will display. With pressing ▲/▼ keys the laser lightness can be
adjusted.

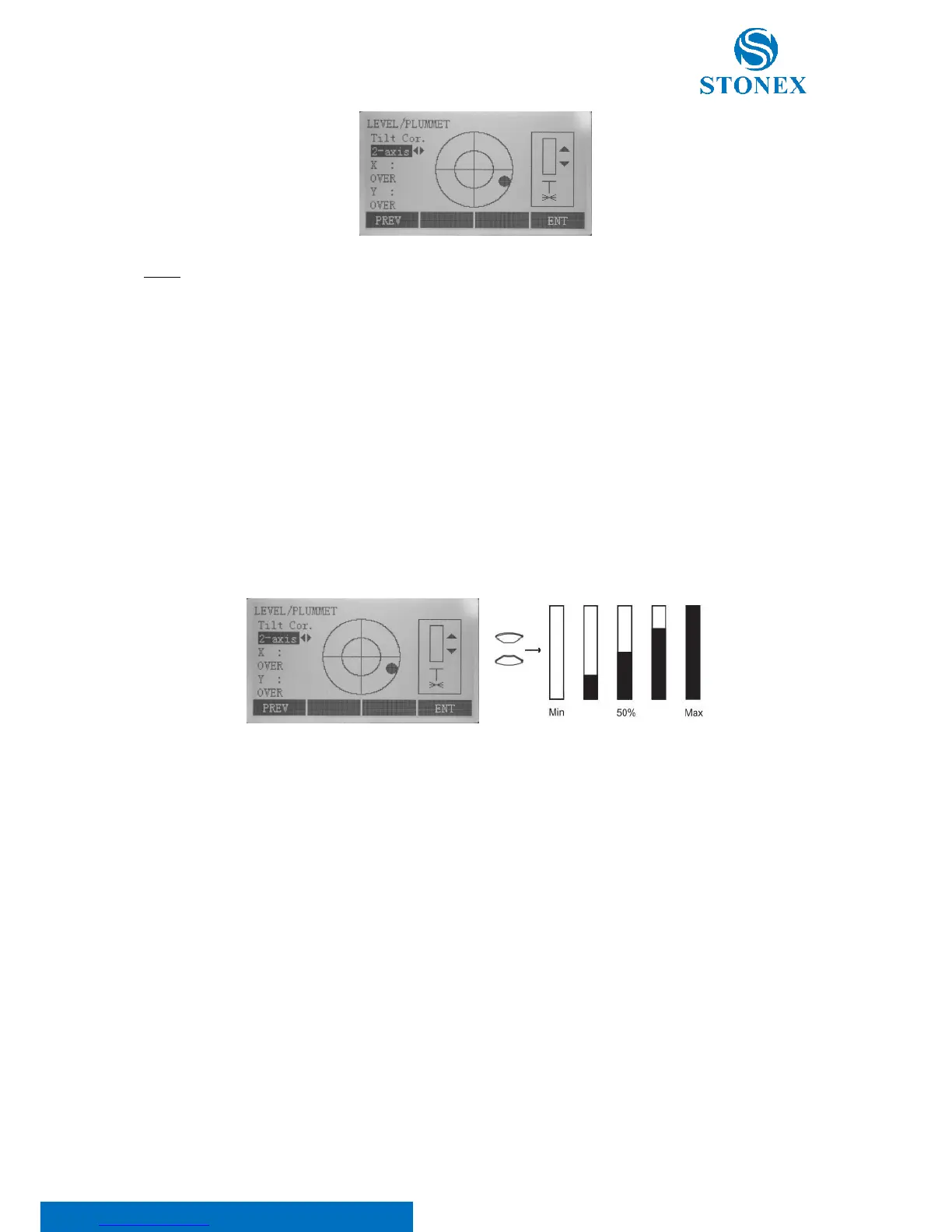

Press the {FUNC} key, and then click F1 or (1) keys to enter the display shown in the upper figure. With pressing
▲/▼ keys you can turn on or off laser plummet and set it as four levels of brightness. Thus, that laser emitting
downwards can be seen.
Loosen the center screw of tripod, and move the base plate on tripod head until the laser spot coincides with ground
mark point. Then tighten the center screw.
Repeat leveling and two steps until the instrument keeps leveling and the laser spot coincides with ground mark
point when rotating alidade of instrument in any direction.
After centering, please turn off laser plummet to save power.
