Stonex R25/R25LR Total Station - User Manual 64

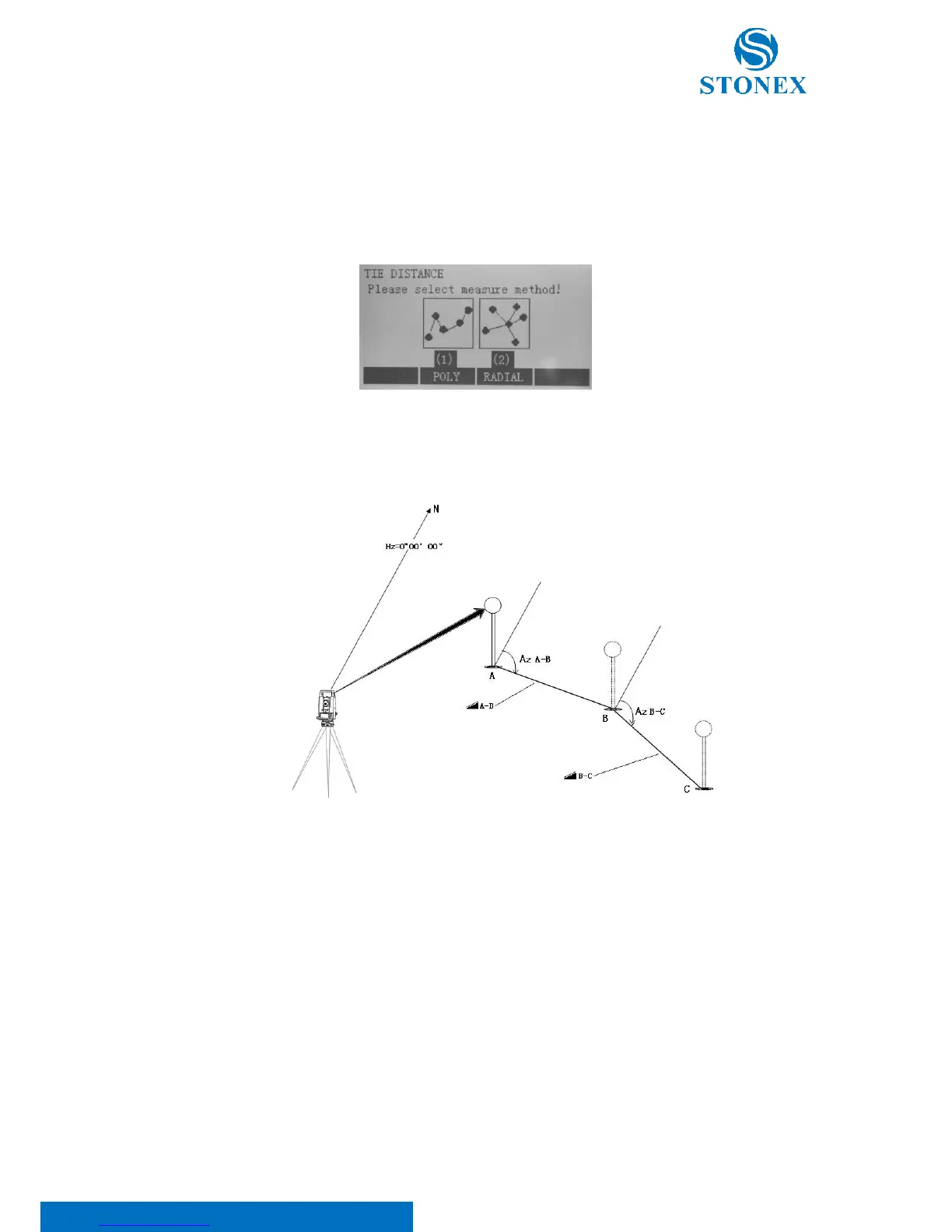

8.5. Tie distance
The application calculates slope distance, horizontal distance, height difference and azimuth of two target points
measured in real time, selected from Memory or entered using the Keypad.
The instrument can accomplish this in two ways:
• Polygonal method: Measurement is A-B, B-C, C-D, etc...
Press F2[POLY] to select it
• Radial (A-B, A-C): Measurement is A-B, A-C, A-D, etc.
Press F3[RADIAL] to select it.
