Stonex R25/R25LR Total Station - User Manual 17

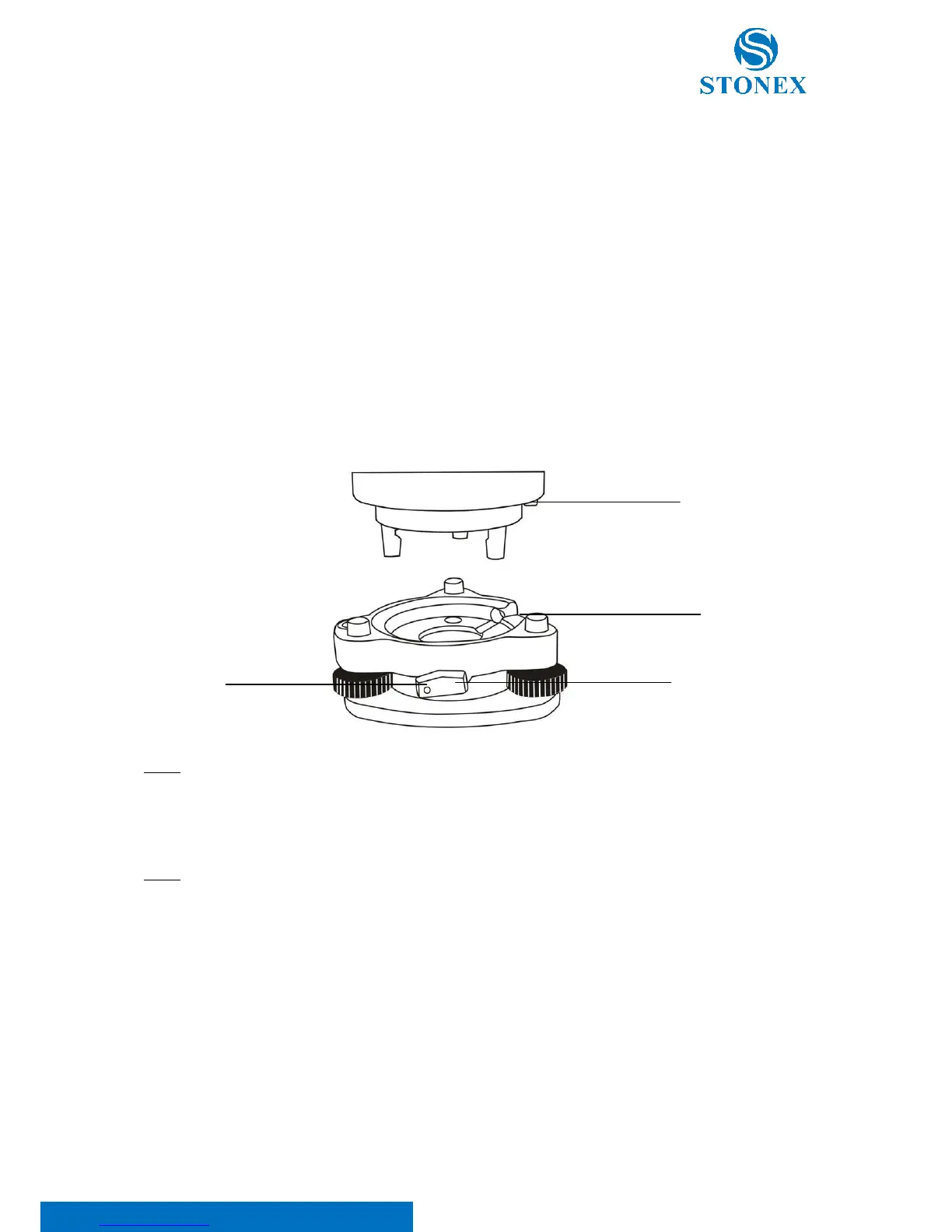

3.5. Assembling and disassembling for three-jaws tribrach
It is convenient to assemble or disassemble the instrument from tribrach by loosen or tighten the tribrach clamp.
Disassemble
Rotate the tribrach clamp anticlockwise until the lever is loosen.
One hand holds up the tribrach, another hand holds the carry handle of the instrument and lift out the instrument
from the tribrach.
Assemble
Put the instrument into the tribrach lightly, let the communication port against in the indentation of the tribrach.
Rotate the tribrach clamp clockwise until the lever is tighten.
NOTE: Fix the tribrach clamp: if the instrument doesn’t need assembly or disassembly from tribrach frequently, it is
necessary to fix the tribrach clamp by fixed screw to avoid the disassembly by accident.
Screw out the fixed screw by driver to fix the clamp.
NOTE: These designs, figures and specifications are subject to change without notice. We shall not be held liable for
damages resulting from errors in this instruction manual.
