5.4. Function key

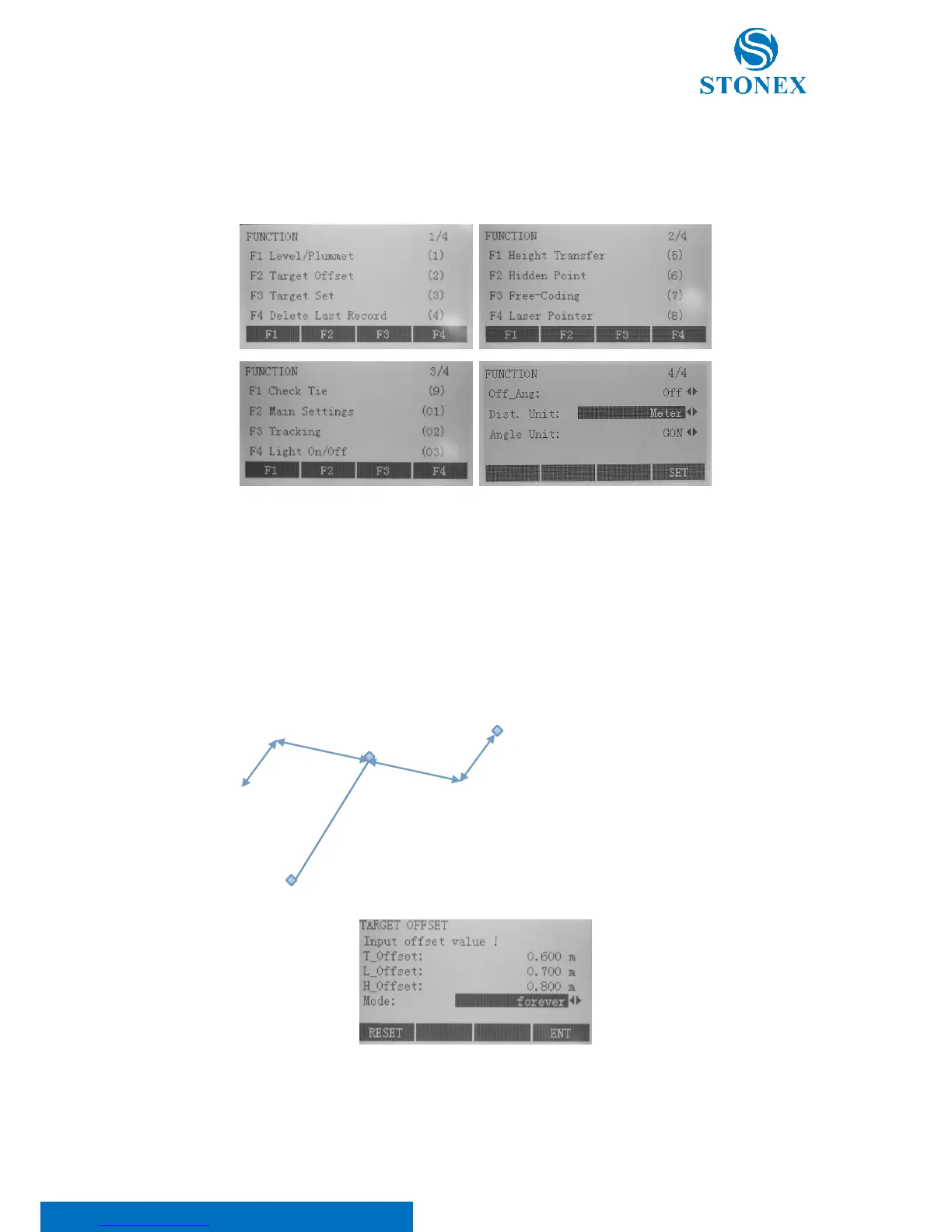

Press {FUNC} key to activate several functions. Use the {PAGE} key to scroll all the pages. The detailed applications
are described below.
Level/Plummet: this function triggers the electronic bubble and enables the settings of intensity for the laser
plummet (see 3.4. Centering and levelling-up).
Target Offset: if it is not possible to set up the reflector directly or it is not possible to aim at the target point
directly, the offset values (length, cross and/or height offset) can be entered. The values for the angle and distances
are calculated directly for the target point.
MP: Measurement point
OP: Offset point
T_Off: Length offset
L_Off: Cross offset
H_Offset+: Height offset
Input the offset values according to the sketch above:
L_Off-
T_Off+
L_Off+
OP
MP
T_Off-
