Stonex R25/R25LR Total Station - User Manual 62

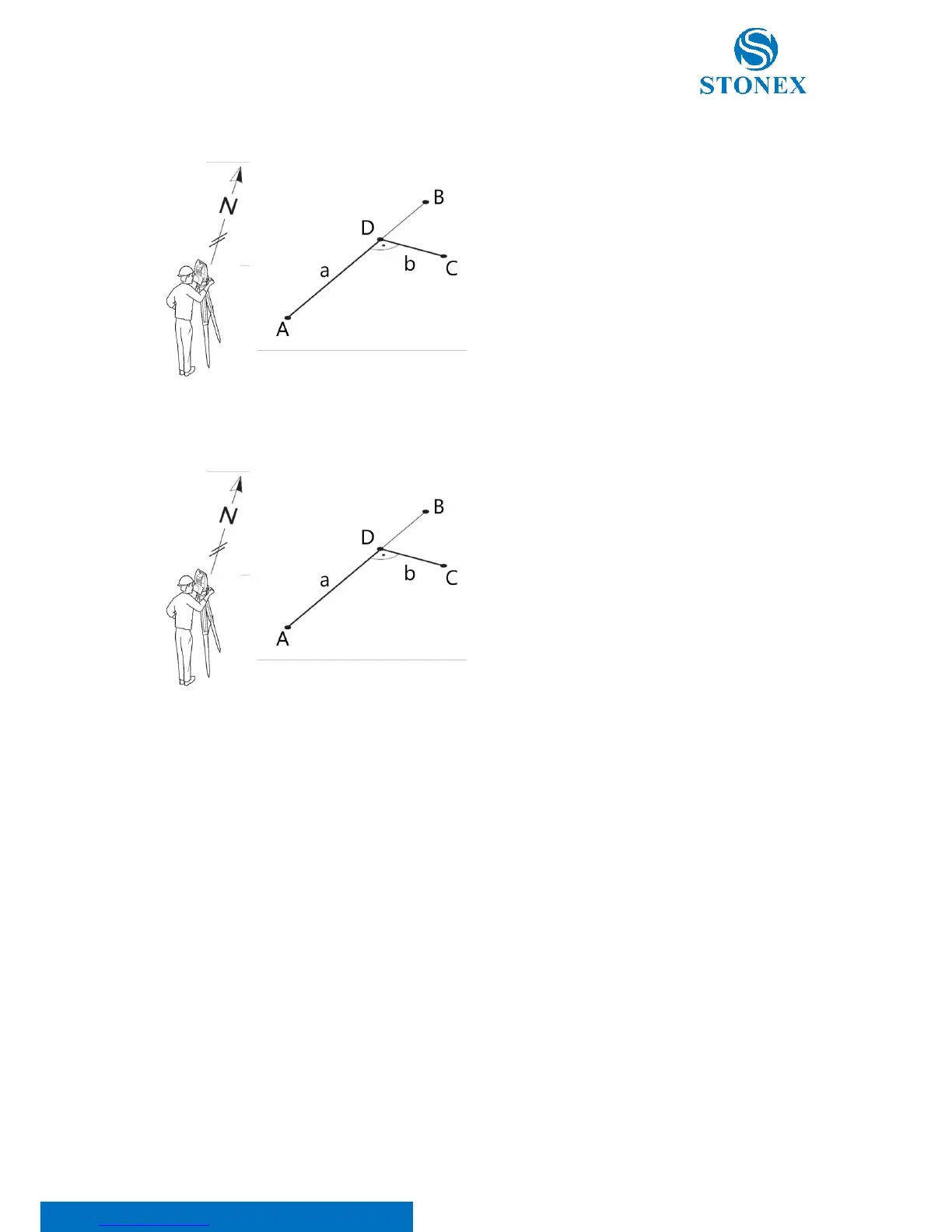

Distance – Offset
Known:
A Baseline start point
B Baseline end point
C Lateral point
Unknown:
a Difference in length/abscissa from the baseline
start point
b Lateral deviation/ordinate (Offset)
Set point by...
Known:
A Baseline start point
B Baseline end point
a Difference in length/abscissa from the baseline
start point
b Lateral deviation/ordinate (Offset)
Unknown:
C Lateral point
Extension
This routine compute extend point from baseline.
In addition, with respect to the previous methods, it is required to select:
• BP: use the ◄/► keys to select the baseline point from which start the extension.
• HD: edit the horizontal distance. To find a point inside the baseline, negative HD values are also
editable.
