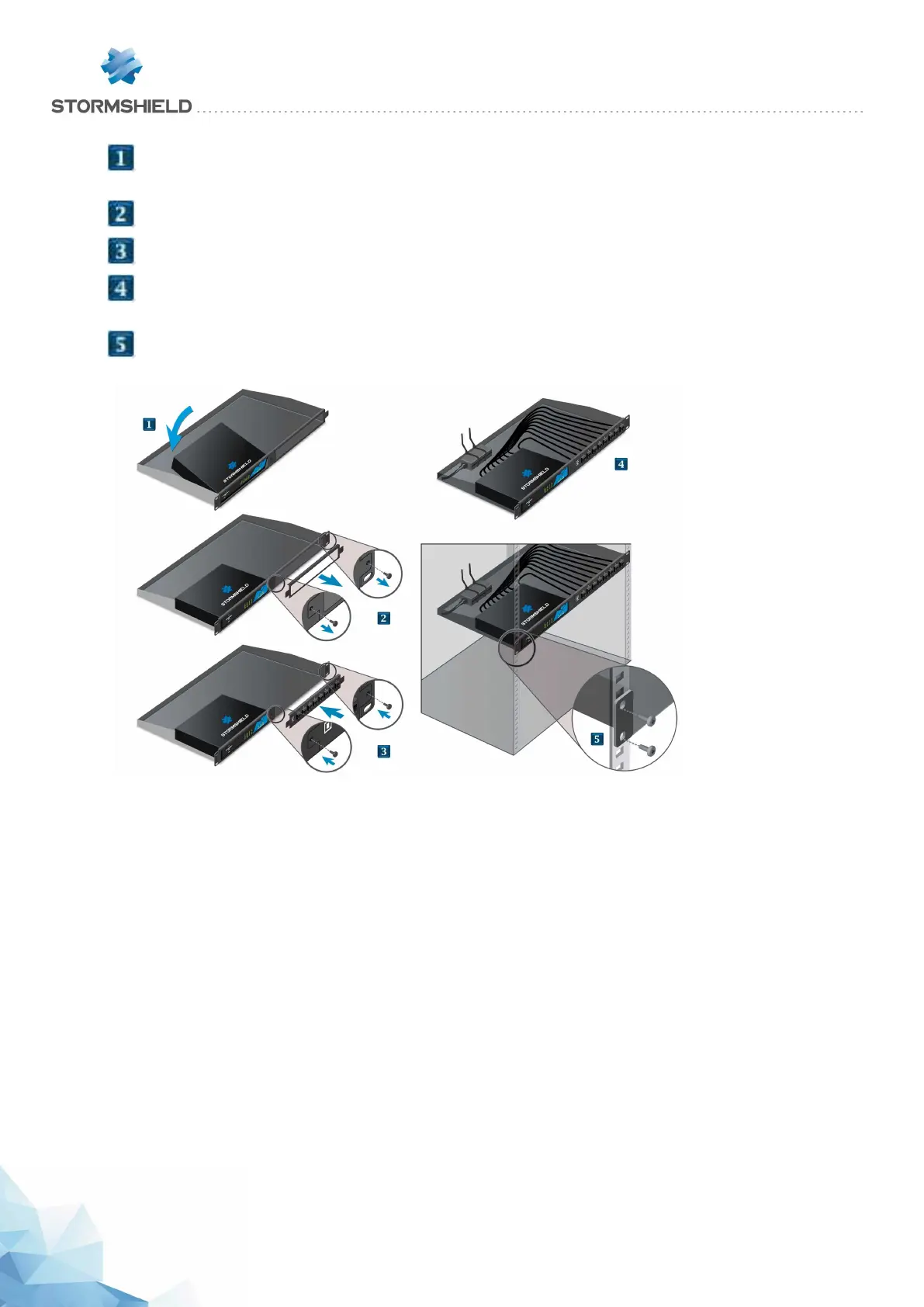

l
Place your firewall in front of its slot at the front left of the shelf, then set it upright until it is firmly in
place.
l
Unscrew the right side of the front panel (two screws).
l
Position the kit, then fasten it to the front panel with both screws.
l
Install and fasten the power adapter on the shelf. Connect the power adapter to the firewall, as well as
the USB and network ports from the kit.
l
Using screws and caged nuts (not provided with the appliance), fasten the shelf to the vertical rails
located at the front of the cabinet.
SNS - PRODUCT PRESENTATION AND INSTALLATION 2019
INSTALLATION IN A 19" CABINET AND RACK
Page 21/66 sns-en-SNrange_installation_guide-2019 - 09/2019
