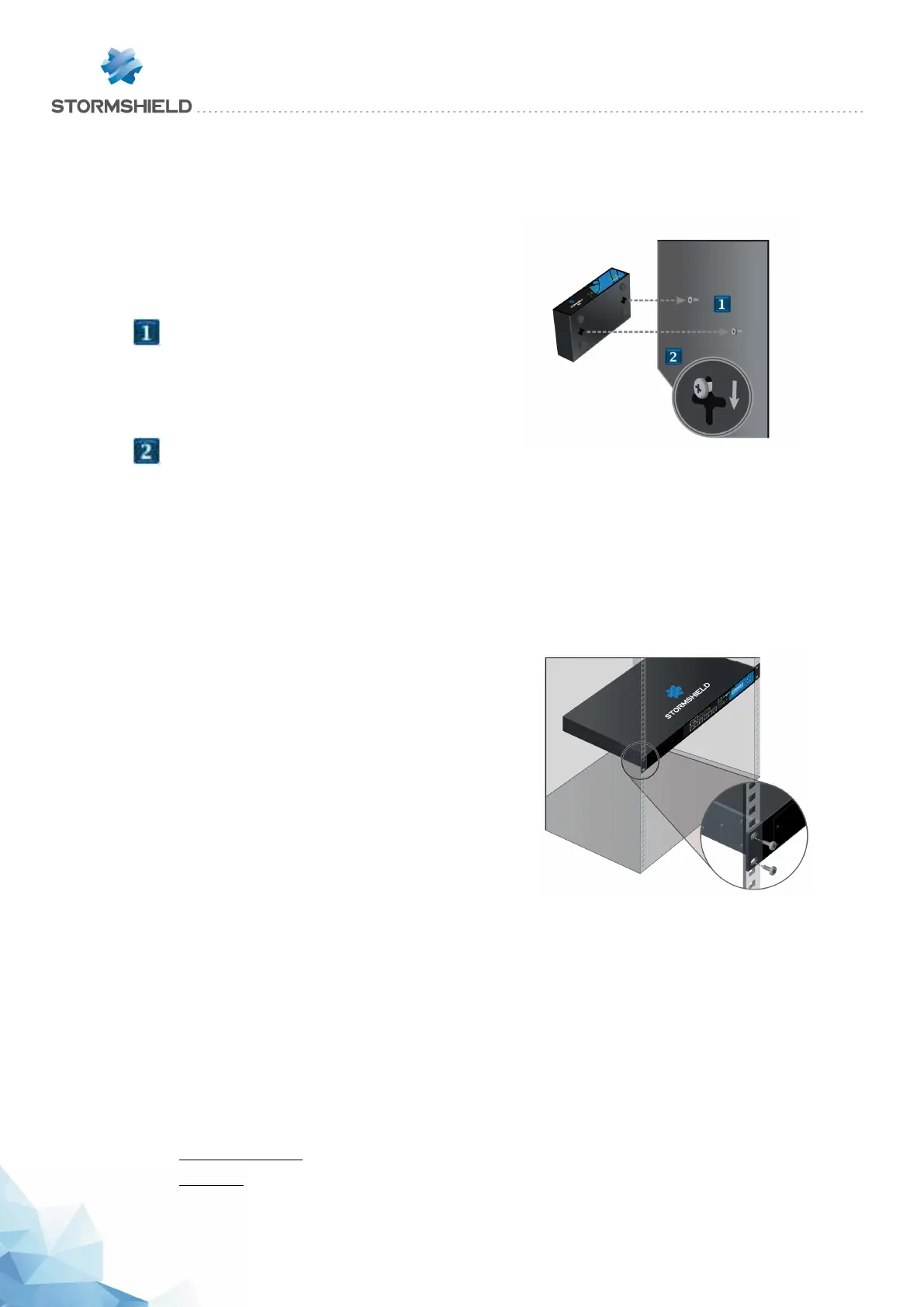

Fastening SN160 and SN160W models to a wall
SN160 and SN160W models can also be installed
vertically using screws and fasteners (not provided).
The screw heads must be narrower than 8mm in
diameter and the diameter of the shank must not
exceed 4mm.
The procedure is as follows:
Place against the wall the 2 screws aligned
horizontally, leaving a space of 12cm (center to
center) between them and letting them protrude
slightly to take into account the thickness of the non-
slip rubber feet.
Once the screws have been drilled into the wall, you
can insert the screw heads into the indentations
meant for this purpose, then gently bring the
appliance downwards in order to insert the screws.
Installing SN510, SN710 and SN910 models in a 19" cabinet
The minimum vertical space needed for installing an SN
Firewall is 1U.
Once the brackets have been installed, you can fasten
the Firewall to the vertical rails located at the front of
your cabinet using screws and the caged nuts (not
provided with the appliance).
Installing SN2100, SN3100 and SN6100 models in a 19" cabinet
The minimum vertical space needed for installing an SN2100 or SN3100 Firewall is 1U and for
installing an SN6100, this space is 2U. The procedures for mounting lateral rails and installing
appliances in racks are described in SN2100-SN3100_rack mounting and SN6100 _rack
mounting. These documents are provided with SN2100, SN3100 and SN6100 products, and
available on the Stormshield Technical Documentation website, under the section PDF download,
under Installation guides.
The rails that come with the product enable installation in a 19" rack – the depth between the
vertical rails located in the front and back are:
l SN2100/SN3100: between 735 and 850mm
l SN6100 : between 620 and 810mm
