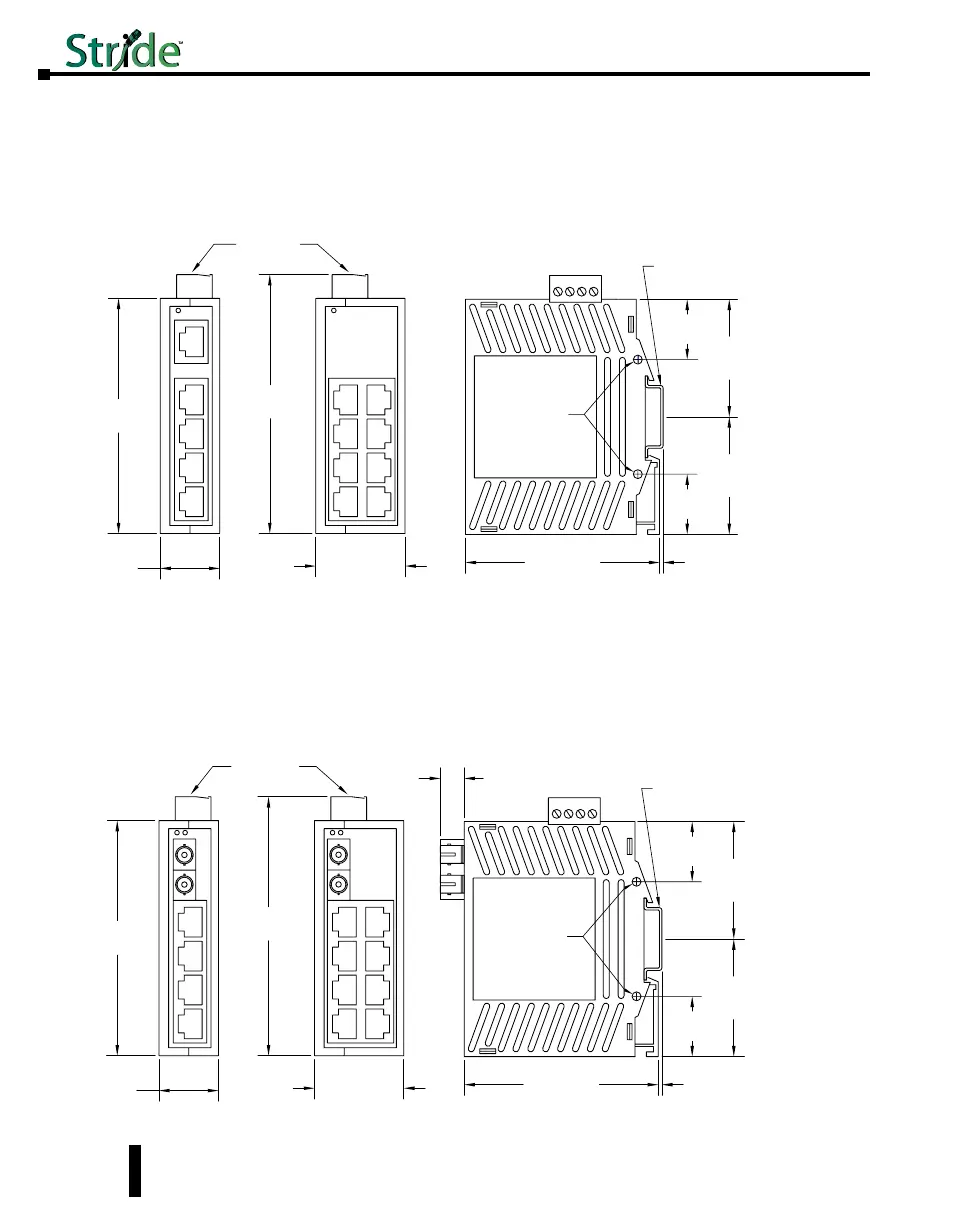

Mechanical Dimensions for 5 and 8-Port Unmanaged Models in Plastic Case
Inches [mm]
Mechanical Dimensions for 5 and 9-Port Unmanaged Models with Fiber in
Plastic Case
Inches [mm]
5 Port
9
Port
3.96
[100.6]
1.00
[25.4]
4.35
[110.5]
1.50
[38.1]
Dia. 0.15 [3.8]
Use for direct
panel mounting
to a flat surface.
1.98
[50.3]
3.26
[82.8]
0.06
[1.5]
0.40
[10.2]
1.98
[50.3]
Snaps to standard
35 mm x 7.5 mm height
DIN rail (EN50022)
Removable
Screw Block,
Phoenix
p/n 1757035
SE-SW5U-ST, SE-SW5U-SC
SE-SW9U-ST and SE-SW9U-SC
1.01
[25.7]
1.01
[25.7]
1-14
5 Port
8 Port
3.95
[100.3]
1.00
[25.4]
4.20
[106.7]
1.50
[38.1]
Dia. 0.15 [3.8]
Use for direct
panel mounting
to a flat surface.
1.98
[50.3]
3.26
[82.8]
0.06
[1.5]
Snaps to standard
35 mm x 7.5 mm height
DIN rail (EN50022)
1.98
[50.3]
Removable
Screw Block,
Phoenix
p/n 1757035
1.01
[25.7]
1.01
[25.7]
5 or 8 Port –
S
E-
S
W5U
&
S
E-
S
W8U
