Stryker Performance-PRO XT - Outer Rail Subassembly, Right

Return To Table of Contents
100 6086-009-001 REV A www.stryker.com

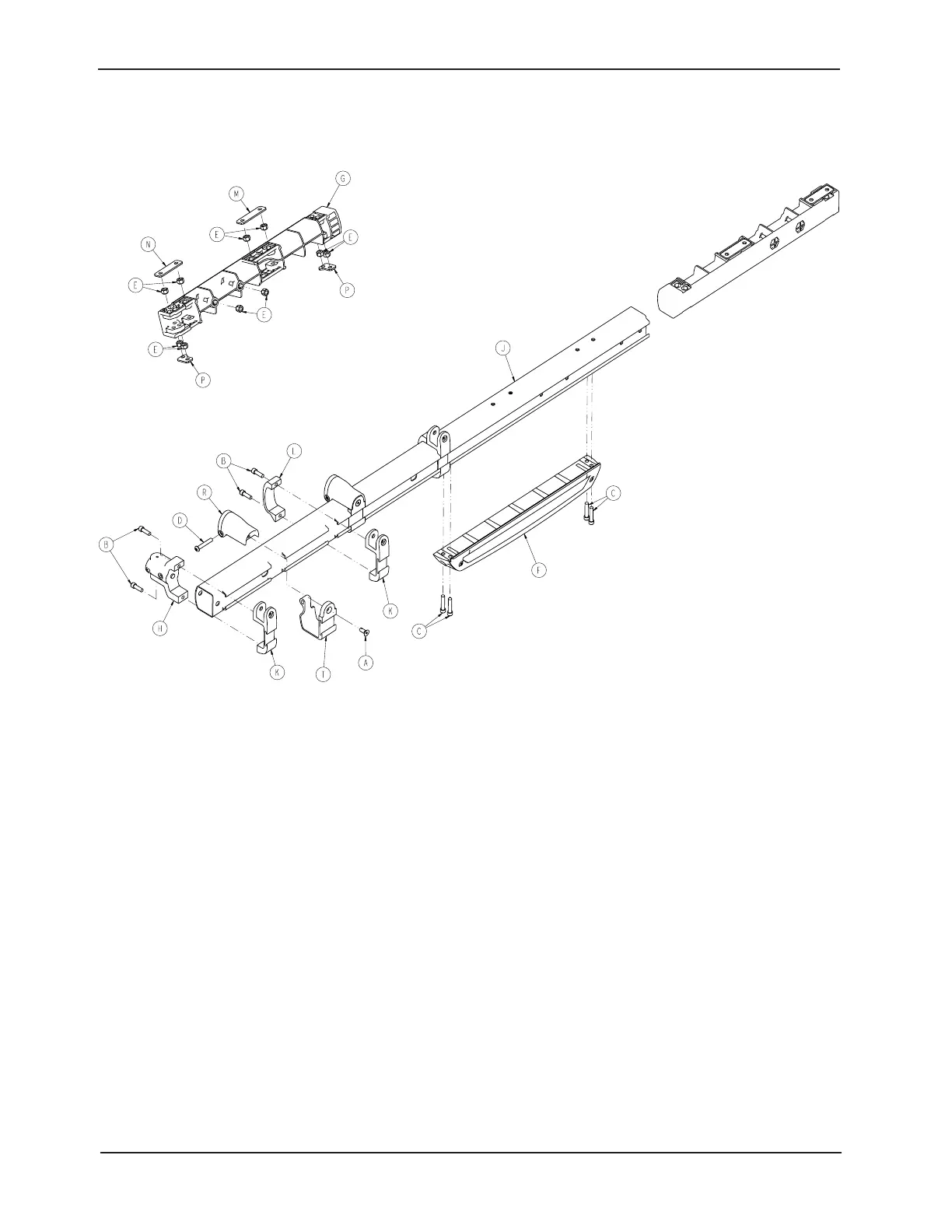

Outer Rail Subassembly, Right
6086-001-025 Rev A (Reference Only)
Item Part No. Part Name Qty.
A 0001-195-000 Flat Head Cap Screw 2
B 0004-591-000 Socket Head Cap Screw 6
C 0004-613-000 Socket Head Cap Screw 4
D 0004-848-000 Button Head Cap Screw 2
E 0016-028-000 Fiberlock Hex Nut 10
F 6085-001-029 Slide Housing Assy, Right (page 116) 1
G 6500-001-098 Litter Dead Stop, Internal 1
H 6500-001-102 Base/Litter Interface Bracket 1
J 6500-001-114 Outer Rail Extrusion 1
K 6500-001-116 Siderail Bracket 3
L 6500-001-117 Siderail Clamp 2
M 6500-001-243 I.V. Pole Backer Plate 1
N 6500-001-244 I.V. Clip Backer Plate 1
P 6500-001-245 Sensor Housing Backer Plate 2
R 6500-002-130 Litter Support Bracket 2
T 6500-002-131 Litter Support Bracket, Inner 2
