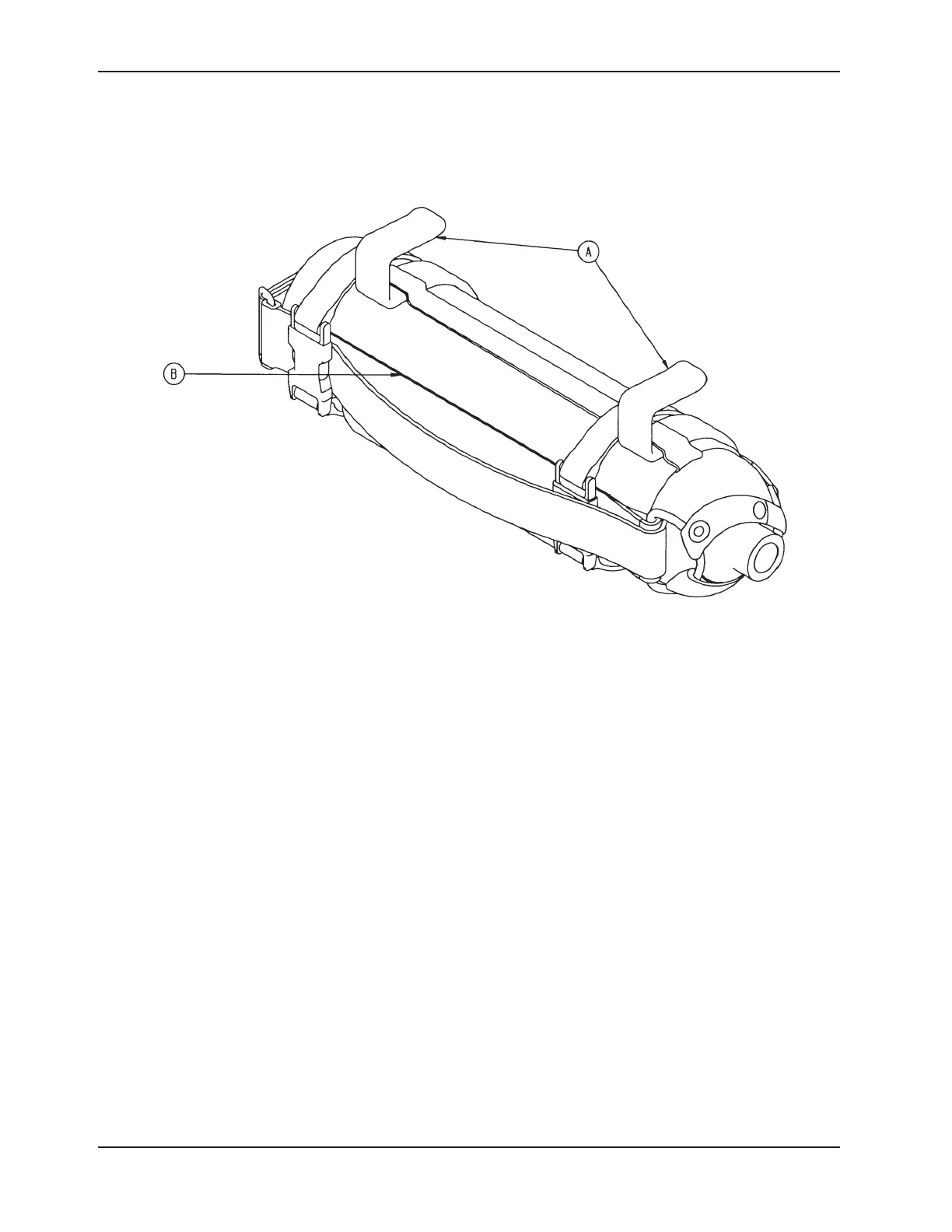

Removable Oxygen Bottle Holder - 6080-140-000

Item Part No. Part Name Qty.

A 6080-140-011 Oxygen Bottle Holder Hanger 2

B 6080-140-012 Oxygen Bottle Holder 1

Note: Max Load = 25 pounds

6080-140-010 Rev A (Reference Only)
