www.stryker.com 6086-009-001 REV B 153

Return To Table of Contents

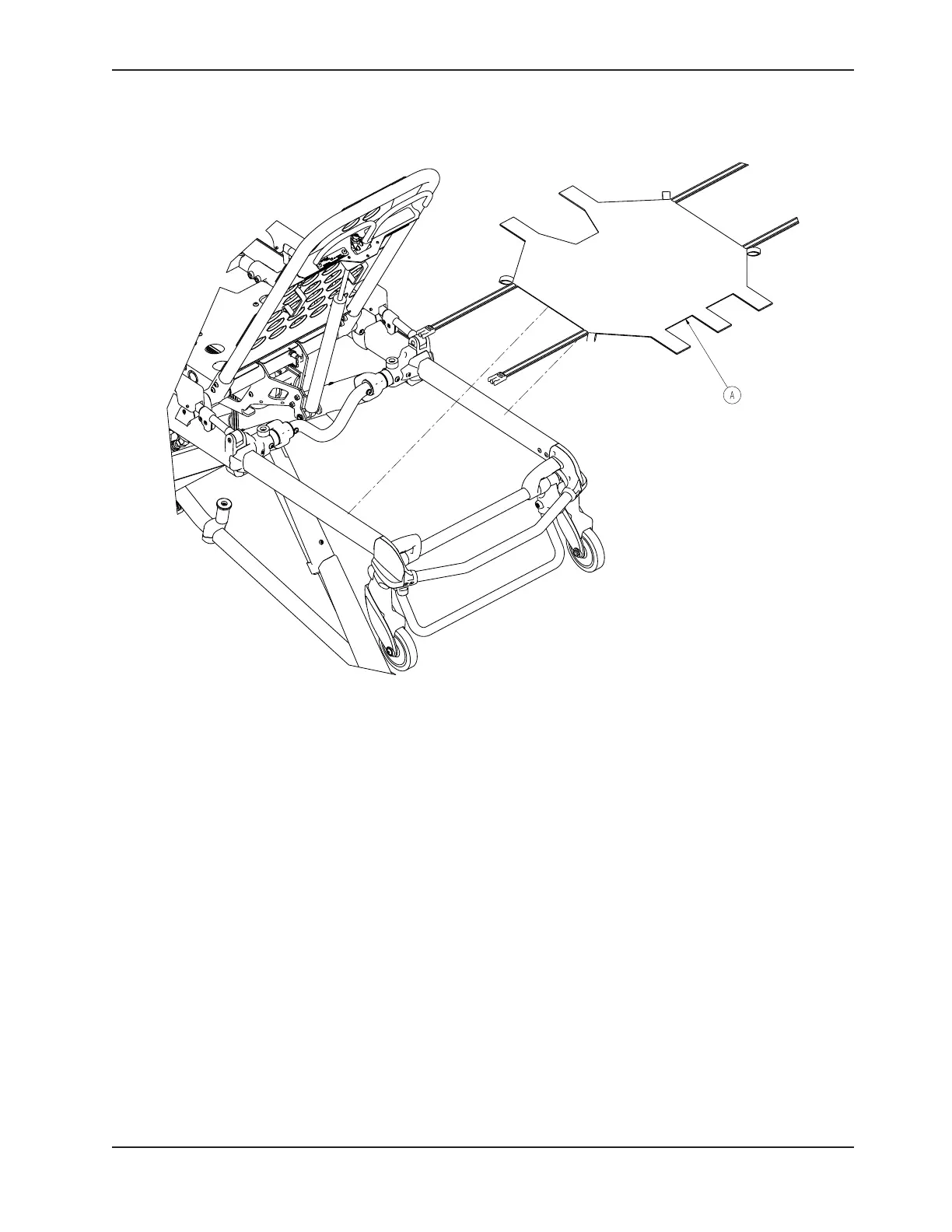

Head End Storage Flat - 6500-128-000

Item Part No. Part Name Qty.

A 6500-001-232 Head End Storage Flat 1

Rev A
