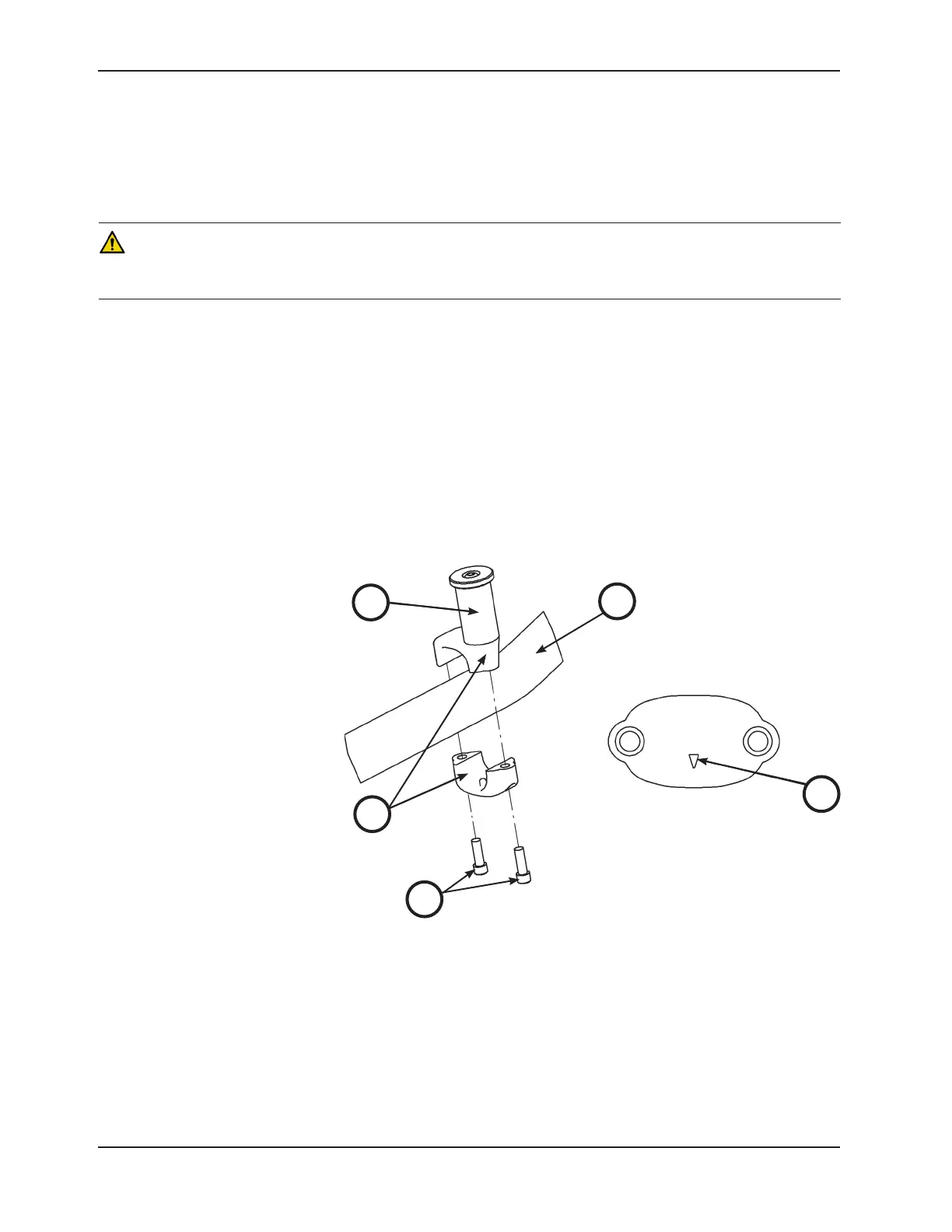

Figure 64: Cot Retaining Post
C
E
B
A
D
Service Information
COT RETAINING POST ADJUSTMENT
Tools Required:
• 3/16” Hex Wrench
CAUTION
The cot retaining post comes preconfigured for an X-frame cot, if the fastener has been configured for an H-frame style
cot, the cot retaining post must be adjusted to accommodate the fastener.
Procedure:
1. Using a 3/16” hex wrench, remove the two socket head cap screws (A) that hold the pin brackets (B) to the base
frame (C) (Figure 64).
2. Turn the bottom pin bracket 180˚.
3. Using a 3/16” hex wrench, reinstall the two socket head cap screws that were removed in step 1.
4. Verify proper operation of the unit before returning it to service.
Note: If the arrow (D) on the bottom bracket of the retaining post (E) points toward the head end of the cot, the
retaining post is set for an X-frame style cot. If the arrow points toward the foot end of the cot the post is set for an
H-frame style cot (Figure 64).
