Stryker Performance-PRO XT - No Wheel Lock Option

To Next Page

To Previous Page

Return To Table of Contents

www.stryker.com 6086-009-001 REV A 83

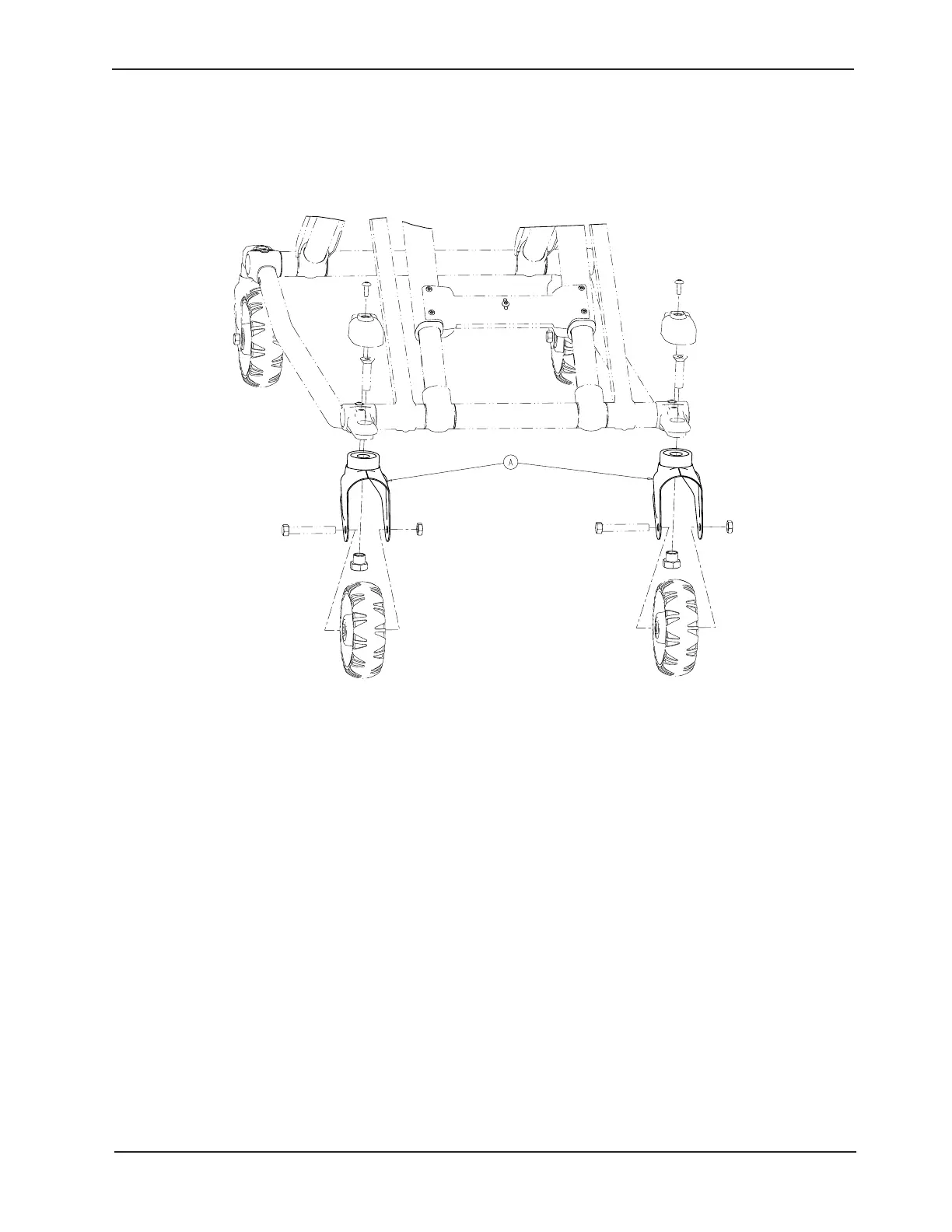

No Wheel Lock Option

Item Part No. Part Name Qty.

A 6082-002-012 Caster Horn Assembly 2

6086-500-010 Rev A (Reference Only)
