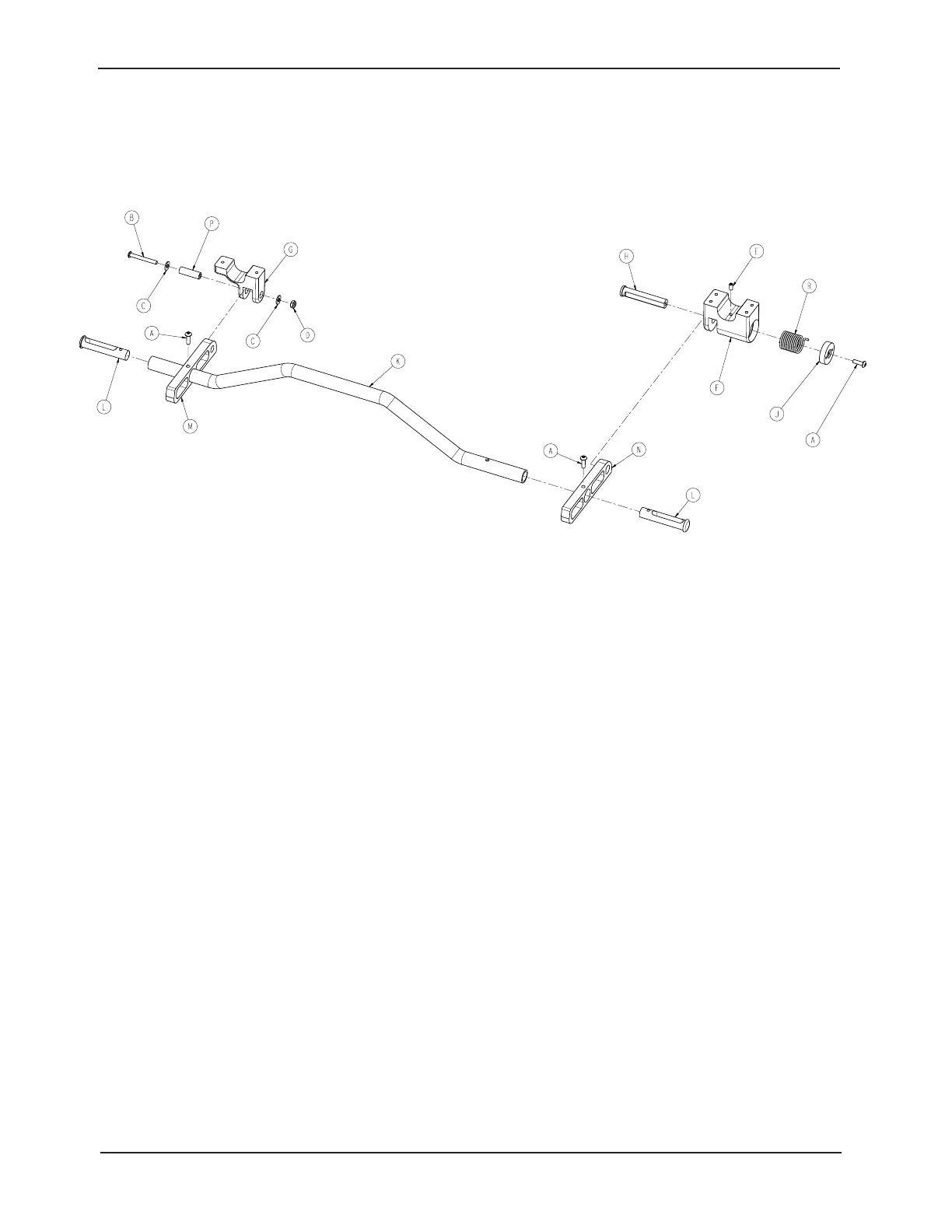

Kickstand Sub-Assembly - 6085-002-016
Item Part No. Part Name Qty.
A 0004-515-000 Button Head Cap Screw 3
B 0004-636-000 Button Head Cap Screw 1
C 0011-302-000 Plain Washer 2
D 0016-131-000 Nylock Hex Nut 1
E 0021-180-000 Set Screw 1
F 6085-002-003 Kickstand Spring Housing 1
G 6085-002-004 Kickstand Bottom Bracket 1
H 6085-002-006 Kick Bolt 1
J 6085-002-007 Kick Bolt Head 1
K 6085-002-008 Kick Tube 1
L 6085-002-009 Kick Tube Cap 2
M 6085-002-011 Rocker Strut, Left 1
N 6085-002-012 Rocker Strut, Right 1
P 6085-002-013 Kickstand Spacer 1
R 6085-002-014 Kickstand Torsion Spring 1
