148 6086-009-001 REV B www.stryker.com

Return To Table of Contents

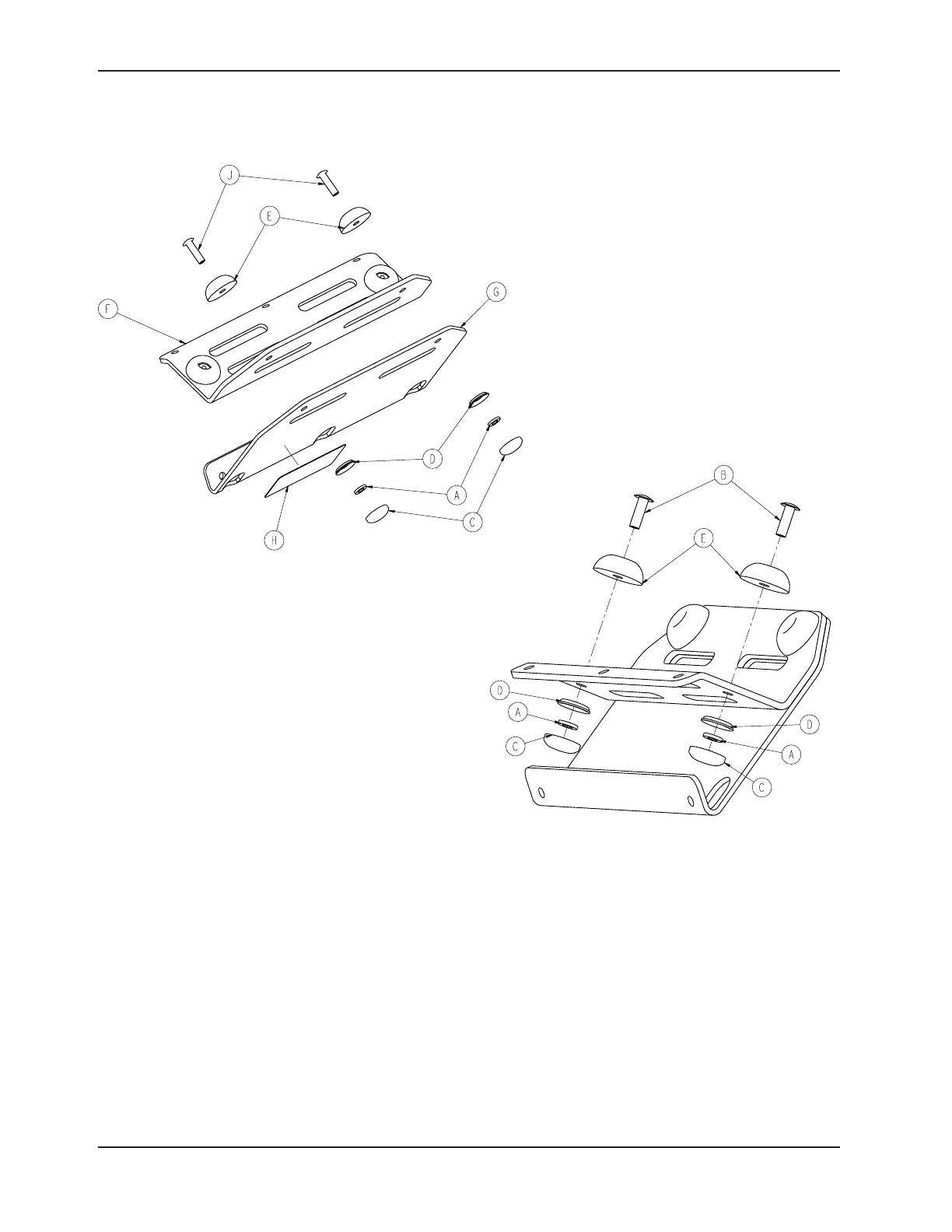

Oxygen Bottle Holder Assembly - 6500-001-040

Item Part No. Part Name Qty.

A 0011-436-000 Washer 4

B 0025-133-000 Rivet 2

C 0037-055-000 Cap 4

D 0037-056-000 Washer 4

E 0946-001-155 Bumper 4

F 6500-001-239 Tray 1

G 6500-001-240 Bracket 1

H 6500-001-257 Label 1

J 0025-086-000 Blind Rivet 2

Note: Max Load = 40 pounds
