www.stryker.com 6086-009-001 REV A 107

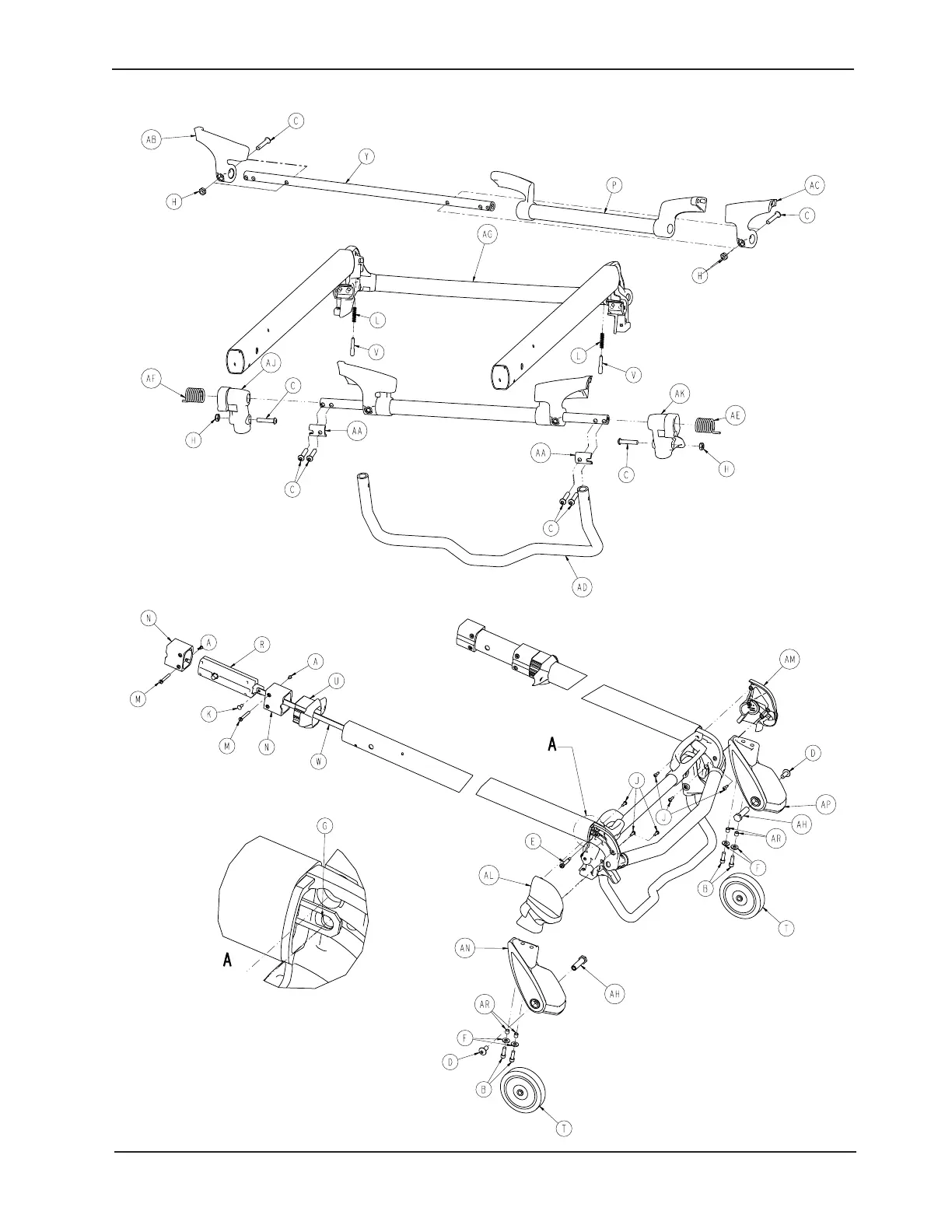

Head Section Assembly - 6500-002-023

Rev C

Place washer between the

release link and forging

Torque item B to

200 ± 40 in-lb

Torque item B to

200 ± 40 in-lb
