OUTER, INNER TUBE REPLACEMENT
Tools Required:
• (2) Saw Horse
• 3/8” Combination Wrench
• 7/16” Combination Wrench
• T25 Torx Driver
• (2) 9/16’ Combination Wrench
• Dead Blow Hammer
• T27 Torx Driver
•
Procedure:
1. Complete steps 1-7 from “Inner, Inner Tube
Replacement” on page 69.

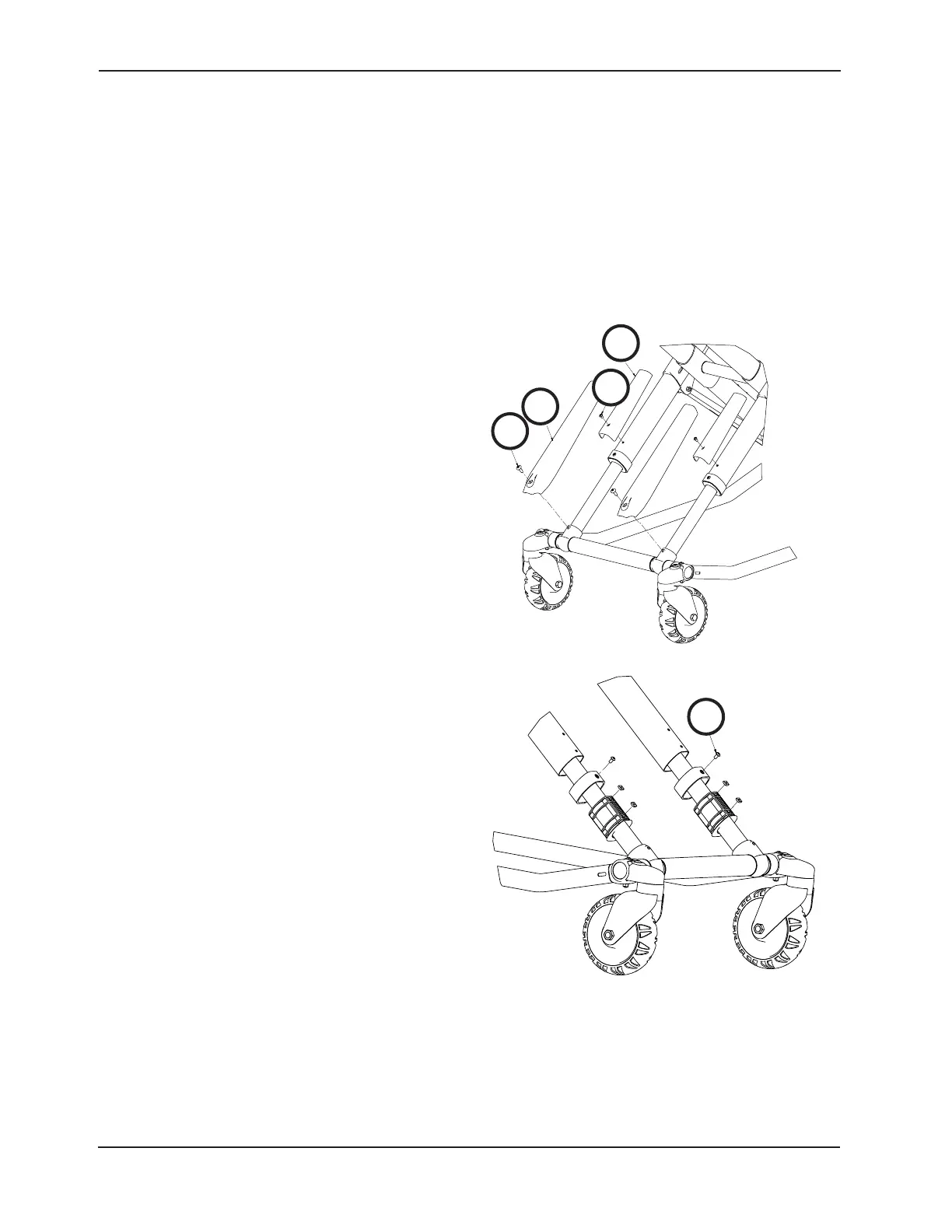

2. Using a T27 Torx driver, remove the truss head
screw (A) that secures the X-frame guard (B) to the
inner tube (see Figure 72).
3. Using a T25 Torx driver, remove the two button head
cap screws (C) that secure the tube bearing.
4. Remove the inner tube and save the tube bushings
to reuse on the new tube.
5. Reverse the above procedures to install the new
inner tube.
Note: Make sure that the X-frame guard
screw hole on the new inner tube is facing
the top of the cot when reassembling.
6. Verify proper operation of the unit before returning
it to service.
