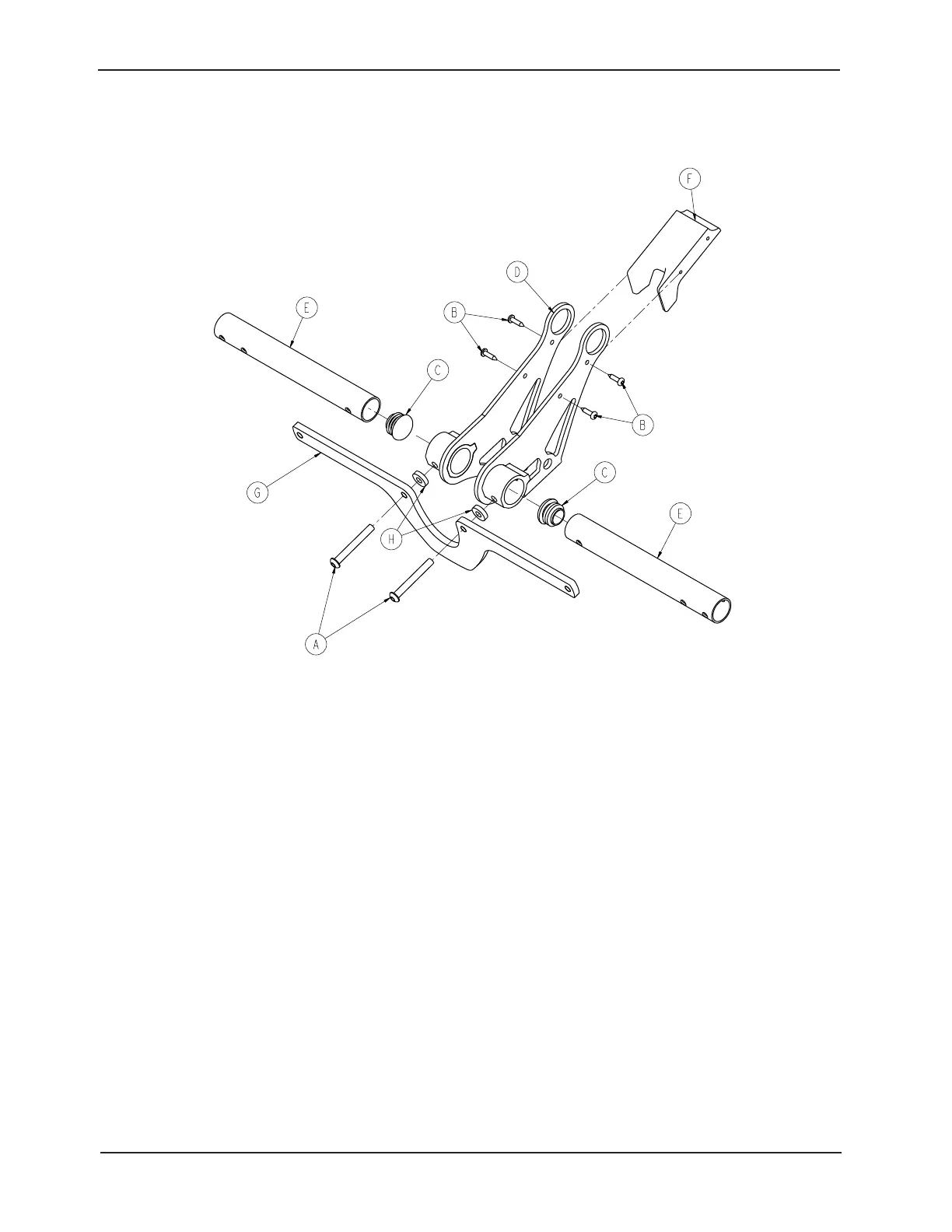

Litter Base Assembly
6085-001-026 Rev D (Reference Only)
Item Part No. Part Name Qty.
A 0004-388-000 Button Head Cap Screw 2
B 0023-162-000 Delta Screw 4
C 0037-243-000 Tube Plug 2
D 6085-001-055 Litter Base Interface Weldment 1
E 6085-001-131 Litter Base Tube 2
F 6085-001-140 Litter Base Stiffener Cover 1
G 6085-001-176 Litter/Base Stiffener 1
H 6085-001-178 Litter/Base Spacer, Large 2
