Stryker Performance-PRO XT User Manual
4
of 1
of 1 rating
158 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
ww
w.stryke
r
.com
6086
-0
09-
001
REV
B
43
Return T
o T
able of Contents
Operati
on Guide
USIN
G THE R
ESTR
AI
NT BE
L
T E
X
TEN
SION

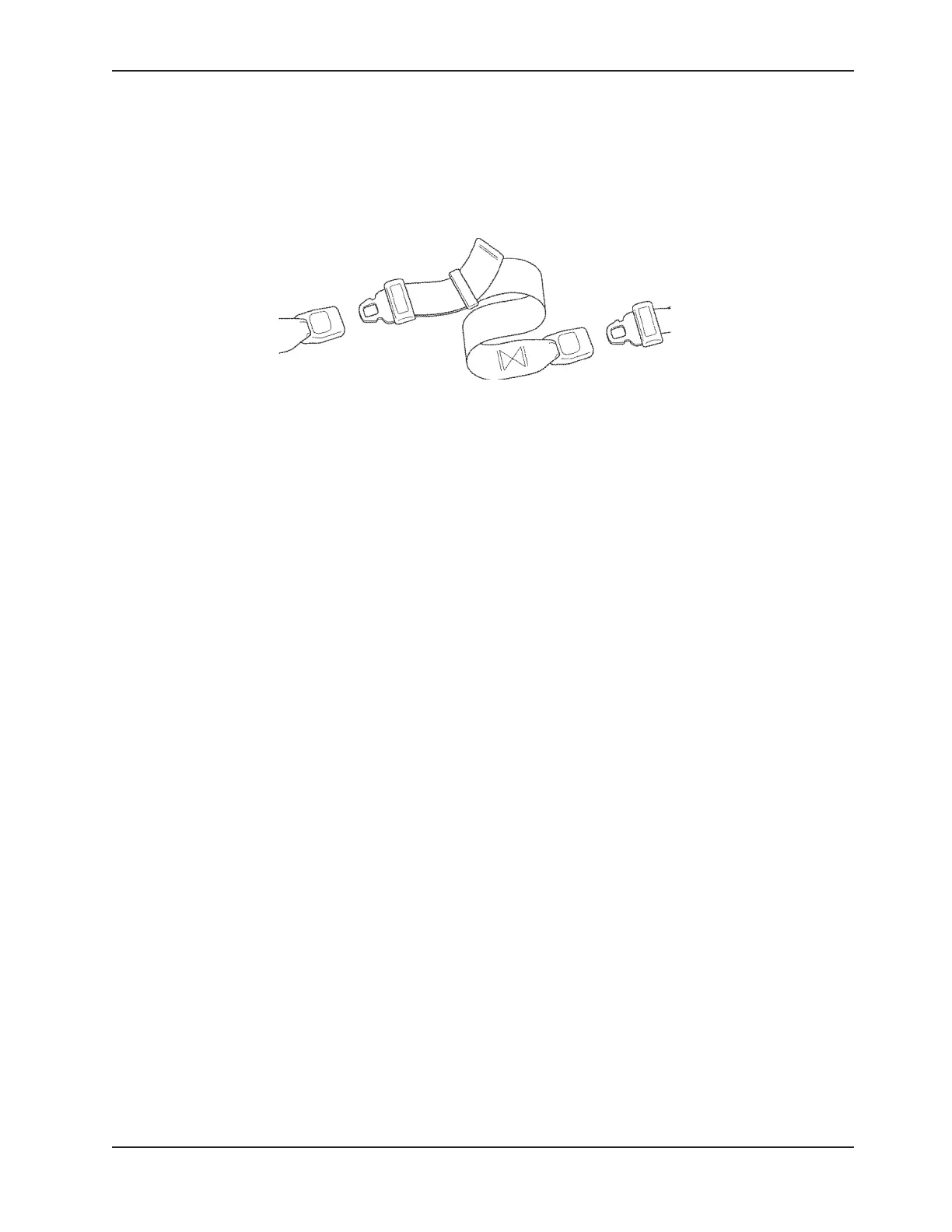

Use the rest
raint belt ex
tension, as s
hown in Figu
re 45, for extra len
gth when b
uckling t
he lap belt around large p
atients.
Fi
gure 45: A
ttachi
ng t
he Restr
aint Be
lt Extensi
on
42
44
Table of Contents
Table of Contents
3
Symbols and Definitions
7
Symbols
7
Warning/Caution/Note Definition
7
Introduction
8
Product Description
8
Intended Use of Product
8
Specifications
9
Contact Information
10
Serial Number Location
10
Product Illustration
11
Summary of Safety Precautions
12
Setup Procedures
16
Cot Fastener Installation
17
Vehicle Safety Hook Selection
19
Vehicle Safety Hook Installation
20
Vehicle Configuration
20
Required Hardware for Installation of the Safety Hook (Not Supplied)
20
Front to Back Positioning of the Safety Hook
21
Side to Side Positioning of the Safety Hook
22
Installing the Safety Hook
22
Adjusting Cot Load Height
23
Cot Positions
24
Operation Guide
25
Operating Guidelines
25
Proper Lifting Techniques
25
Transferring the Patient to the Cot
26
Rolling the Cot
26
Adjusting the Height of the Cot with Two Operators
27
Adjusting the Height of an Empty Cot with One Operator
28
Loading or Unloading the Cot
29
Loading or Unloading the Cot with the Power-LOAD Option
29
Loading the Cot into a Vehicle with Two Operators
30
Loading an Empty Cot into a Vehicle with One Operator
31
Unloading the Cot from a Vehicle with Two Operators
32
Unloading an Empty Cot from a Vehicle with One Operator
33
Using Additional Assistance
34
Operating the Siderails
35
Operating the Backrest
35
Operating the Retractable Head Section
36
Adjusting the Footrest
37
Adjusting the Optional Knee Gatch
38
Operating the Optional Wheel Locks
39
Using Restraint Straps
40
Using the Restraint Belt Extension
43
Optional Accessories
44
Installing the Base Storage Net
45
Using the Defibrillator Platform
45
Using the Equipment Hook
46
Using the Head Extension with Pillow
46
Operating the Optional Two-Stage I.V. Pole
47
Operating the Optional Three-Stage I.V. Pole
48
Using the Kickstand for Dialysis Scale
49
Attaching an Oxygen Bottle to an Oxygen Bottle Holder
50
Using the Retractable Head Section Oxygen Bottle Holder
51
Attaching the Pedi-Mate ® Infant Restraint System
52
Installing the Backrest Storage Pouch
54
Installing the Head End Storage Flat
55
Using the Transfer Flat
55
Cleaning
56
Washing Procedure
56
Washing Limitations
56
Removal of Iodine Compounds
57
Preventative Maintenance
58
Checklist
58
Regular Inspection and Adjustments
59
Maintenance Record
61
Training Record
62
Quick Reference Replacement Parts List
63
Service Information
64
Backrest Adjustment
64
Wheel Locking Force Adjustment
65
Cot Retaining Post Adjustment
66
Cot Retaining Post Replacement
67
Cot Retaining Post Screw Replacement
67
Headsection Replacement
68
Backrest Gas Cylinder Replacement
68
Inner, Inner Tube Replacement
69
Outer, Inner Tube Replacement
70
Outer, Outer Tube Replacement
71
Inner, Outer Tube Replacement
72
Siderail Assembly Replacement
73
Cot Assembly
74
Base Assembly
78
No Steer Lock Option
82
No Wheel Lock Option
83
Single Wheel Lock Option
84
Dual Wheel Lock Option
85
Caster Horn Assembly
86
Adjustable Caster Lock Assembly
87
Wheel Assembly - 6060-002-010
88
Cot Retaining Post, Right - 6085-033-000
89
Optional Dual Cot Retaining Post - 6085-034-000
90
Kickstand Assembly - 6085-002-000
91
Kickstand Sub-Assembly - 6085-002-016
92
Inner Leg Assembly - 6085-001-017
93
Outer Lift Tube Assembly, Litter Pivot, Right
94
Outer Lift Tube Assembly, Litter Pivot, Left
95
Litter Base Assembly
96
Lock Bar Assembly - 6085-001-013
97
Siderail Option
98
Siderail Assembly - 6082-026-010
99
Outer Rail Subassembly, Right
100
Outer Rail Subassembly, Left
101
Foot End Assembly, Left
102
Optional Foot End Assembly, Right
104
Retractable Head Section
106
Head Section Assembly - 6500-002-023
107
Telescoping Tube Assembly - 6500-002-024
109
Head Section Lock Assembly - 6500-001-026
110
Left Hand Release Handle
111
Optional Right Hand Release Handle
113
Slide Housing Assembly, Left
115
Slide Housing Assembly, Right
116
Fowler Assembly
117
Non-Power-LOAD Compatible Option
118
Headsection - 6500-002-020
120
Optional In-Fastener Shut-Off Assembly - 6500-001-027
122
No Headsection Oxygen Bottle Holder Option - 6506-036-000
123
Power-LOAD Compatible Option - 6086-055-000
124
Foot End Fastener Assembly (Power-LOAD Compatible Option)
126
EMS Restraint Package - 6500-002-030
128
Trend - 6085-031-000
129
Optional Gatch - 6085-032-000
130
Optional Gatch Assembly
131
Optional Gatch Support Assembly
134
Optional Accessories
135
Defibrillator Platform - 6500-170-000
136
Equipment Hook - 6500-147-000
137
Head Extension - 6100-044-000
138
Head Extension Assembly - 6100-044-012
139
Two-Stage I.V. Pole Assembly, Right - 6500-210-000
140
Three-Stage I.V. Pole Assembly, Right - 6500-215-000
140
Two-Stage I.V. Pole Assembly, Right - 6500-001-041
141
Three-Stage I.V. Pole Assembly, Right - 6500-001-043
142
Two-Stage I.V. Pole Assembly, Left - 6500-211-000
143
Three-Stage I.V. Pole Assembly, Left - 6500-216-000
143
Two-Stage I.V. Pole Assembly, Left - 6500-001-042
144
Three-Stage I.V. Pole Assembly, Left - 6500-001-044
145
Optional Two-Stage I.V. Pole Assembly, Dual - 6500-212-000
146
Optional Three-Stage I.V. Pole Assembly, Dual - 6500-217-000
146
Oxygen Bottle Holder, Foot End - 6500-140-000
147
Oxygen Bottle Holder Assembly - 6500-001-040
148
Oxygen Bottle Holder, Head End - 6500-141-000
149
Removable Oxygen Bottle Holder - 6080-140-000
150
Retractable Head Section Oxygen Bottle Holder - 6085-046-000
151
Backrest Pouch - 6500-130-000
152
Head End Storage Flat - 6500-128-000
153
Transfer Flat - 6005-001-001
154
Warranty
155
Stryker EMS Return Policy
156
Return Authorization
156
Damaged Merchandise
156
International Warranty Clause
156
Patent Information
156
